Product Description -
Square and Hexagonal Kellys are types of Rotary Kellys our company is offering as a product of a highest quality.

Product origin -
Sumy, Ukraine - UA

Key Specifications/Special Features -
Certification and standards: API Spec 7-1, API Spec 7-2, Q1 and ISO 9001, ISO 29001 and NS-1
Square and Hexagonal Kelly
Steel grade: AISI 4145H mod, fully heat treated as per API Specification
Technical parameters
Size between facets: from 76,2 mm (3) up to 155,0 mm (6 1/8)
Standard overall length: 9000 mm - 16460 mm
Standard API thread connections are made with stress relieved elements, cold rolled and phosphated, and equipped with pressed steel or heavy duty plastic thread protectors both ends
Ultimate tensile strength: min 140 000/965 ksi/mPa, Yield strength: min 110,000/758 ksi/mPa, Elongation: 15%, Impact strength: min 48J, Brinell hardness: min 285-341 HB
Mechanical properties guaranteed to 1 below steel surface.

Minimum Order Size and Packaging details -
At customer request Kellies are delivered in individual scabbards to protect the work surface from mechanical damage during transportation

Product Description -

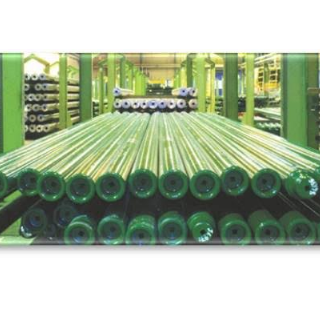

Offering best drill collars for drilling operations in oil and gas extraction (Slick and spiral Drill Collars, with slip and elevator recesses according to customer's request).

Product origin -
Sumy, Ukraine - UA

Key Specifications/Special Features -
Certification and standards: API Spec 7-1, API Spec 7-2, Q1 and ISO 9001, ISO 29001 and NS-1
Slick and spiral Drill Collars, with slip and elevator recesses according to customer's request
Steel grade: AISI 4145H mod, fully heat treated as per API Specification
At customer request it is possible to produce Drill Collars from non-magnetic and H2S resistant steel grades
Technical parameters
OD: from 79,4 mm (3 1/8) up to 279,4 mm (11)
Length: 8300 mm, 9145 mm and 9450 mm, at customer request the length can vary from 6500 mm up to 12500 mm
Standard API and double shouldered thread connections are made with stress relieved elements, cold rolled and phosphated, and equipped with pressed steel or heavy duty plastic thread protectors at both ends
Hard banding of ARNCO 350XT, Castolin OTW 13CF, tungsten carbide
Ultimate tensile strength: min 140 000/965 ksi/mPa, Yield strength: min 110,000/758 ksi/mPa, Elongation: 15%, Impact strength: min 48J, Brinell hardness: min 285-341 HB
Mechanical properties guaranteed to 1 below steel surface.

Product Description -
Our products include Slick and Spiral exclusively forged HWDP (not welded or hot rolled material).

Product origin -
Sumy, Ukraine - UA

Key Specifications/Special Features -
Certification and standards: API Spec 7-1, API Spec 7-2, Q1 and ISO 9001, ISO 29001 and NS-1
Slick and Spiral exclusively forged HWDP (not welded or hot rolled material)
Type I / Type II with one or two central upsets, Type III Spiral with one central upset
Steel grade: AISI 4145H mod, fully heat treated as per API Specification
At customer request it is possible to produce HWDP from non-magnetic and H2S resistant steel grades
Technical parameters
OD: from 88,9 mm (3 1/2) up to 168,3 mm (6 5/8)
Standard length: 8300 mm, 9450 mm, 12250 mm, 12500 mm
Standard API and double shouldered thread connections are made with stress relieved elements, cold rolled and phosphated, and equipped with pressed steel or heavy duty plastic thread protectors at both ends
Hard banding of ARNCO 350XT, Castolin OTW 13CF, tungsten carbide
Ultimate tensile strength: min 140 000/965 ksi/mPa, Yield strength: min 110,000/758 ksi/mPa, Elongation: 15%, Impact strength: min 48J, Brinell hardness: min 285-341 HB
Mechanical properties guaranteed to 1below steel surface.

Stainless steel swivel fitting for self-service
car wash pantograph

Length - 11.80mtrs.
Dia. - 1.82mtrs.
Wall thickness - 14mm.
Weight - 8mt./pipe.
The Pipes are spiral welded
The pipes external surface is plastic quoted.
The innner surface of the pipe is painted.

We can offer the following steel pipes:
OD 530 mm x WT 7-8mm. Quantity 1000 tn. FOB Novorossijsk 550 USD
OD 630 mm x WT 7-8mm. Quantity 1000 tn. FOB Novorossijsk 570 USD
OD 720 mm x WT 7-9mm. Quantity 3000 tn. FOB Novorossijsk 525 USD
OD 820 mm x WT 8-9mm. Quantity 2000 tn. FOB Novorossijsk 540 USD
OD 1020 mm x WT 10-12mm. Quantity 1000 tn. FOB Novorossijsk 570 USD
OD 1220 mm x WT 12-13mm. Quantity 1000 tn. FOB Novorossijsk 570 USD
OD 1420 mm x WT 15.7-16.8mm. Quantity 3000 tn. FOB Novorossijsk 590 USD

Pipes are LSAW (straight seam) , steel grade -3SP5, beveled ends, restored/shot-blasted. Previously were used under gas and oil products.

-

We can offer the following steel pipes:
OD 530 mm x WT 7-8mm. Quantity 1000 tn. FOB Novorossijsk 550 USD.
Pipes are LSAW (straight seam) , steel grade -3SP5, beveled ends, restored/shot-blasted. Previously were used under gas and oil products.

We can supply used steel pipe OD 720 mm x WT 7-9mm. Quantity 3000 tn.
FOB Novorossijsk 525 USD.
Pipes are LSAW (straight seam) , steel grade -3SP5, beveled ends, restored/shot-blasted. Previously were used under gas and oil products.
