Rm hard drawn low carbon wire is made of cold drawing of wire rods. We produce sizes ranges from diameter 2.00mm to 9.80mm.
Sizes:
2.00mm ----------- 9.80mm
Weight:
200kgs ----------- 800kgs
Inside dia:
400mm ----------- 750mm
Tensile strength:
Min 500 n/mm2 ----------- 1050 n/mm2
Application:
Hard drawn low carbon wire can be used in variety range of general application
1) for galvanised wire coating
2) manufacture of steel fabric
3) nails manufacturing
4) basket, market trolleys, racks, chains, fasterners, fences.
5) bicycles manufacturing
6) steel wire for prestressed concrete product
7) others general industry applications
Wire Diameter: 0.2-6.0 Mm
Surface: White Zinc Code
Made In Viet Nam
Packing: Weight 100 - 150kg/roll, 500 Ã??? 600kg/roll
Application: Used In Industry, Construction, Handicraft Industry...
Product Name
Steel Wire Rope
Material
45#/60#/70# Carbon Steel
Construction
1*7/ 7*7/ 1*19/ 7*19/ 6*19+FC/ 6*19+iwrc/ 6*7+FC/ 6*7+iws/ 6*12+7FC or other customized structure
Diameter Range
steel wire rope 0.3mm - 20mm etc
Surface
Electric galvanized, Hot dip galvanized.
Features
Smooth surface, high corrosion resistant, high fatigue strength, excellent heat resistance and are free from Lateral /longitudinal cracks, pits and marks etc
Other customization
7 wire strand/ 19 wire strand 3.0~12.7 mm Hot-Dip Galvanized steel strand
Applications
This products is used for lifting, pulling and other usages.
steel wire for prestressed concrete
mainly includes three types according
to the surface treatment: plain PC
wire, spiral PC wire and indented PC
wire. And the reference standards: GB/
T5223, ASTMA421, BS5896, JISG3536,
EN10138 or other special standards.

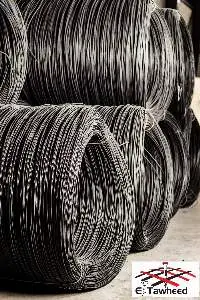

High carbon steel wire from mattress spring (Bonnell and Pocket)
Material :AISI 1045,1060,1065,1070,1072
Wire diameter : 1.2mm-5mm
Tensile Strength : 1550- 1850 MPA
PATENTED AND COLD DRAWN STEEL WIRES- UNALLOYED
These wires are cold drawn made from unalloyed high carbon steel.
APPLICATIONS: Used in manufacturing of cold formed helical springs. Springs rings and wires forms which find application in automobile, cycle and other industrial equipments.
DESCRIPTION :
The High Tensile Galvanized steel wire may be supplied as single wire or in seven wire strand. These wires are used for Mechanical reinforcement in the manufacturing of Aluminium Conductors, steel reinforced (ACSR).
APPLICATION :
Used in over head transmission line as primary and secondary distribution conductors.
Specification :
IS:398 2nd/5th
SIZE RANGE :
Single wire Min. 1.50 MM, Max. 4.77 MM
Strand wire Min. 7 x 1.50 MM, Max. 7 x 4.77 MM
This wire is High Carbon Steel Round Wire with duly Bright Surface finish and manufactured from High Carbon Steel wire rod.
The wires are custom built to suit Customerâ??s actual requirement.
Application: This wire used in Automobile industries for making Two Wheelerâ??s Tyre Spokes
Specification:
1 Size 1.80 mm to 4.00 mm
2 Tolerance + 0.03 mm
3 UTS (Kg/mm2) 1000 to 1300 N/mm2
4 Surface finish Smooth & Clean
5 IS Code IS : 6902
Packing: The Auto Spoke Wire is supplied in 100 to 150 kg coil weight with securely bound at 4 places and wrapped with polythene and HDPE.
We specialize in supplying Auto Spoke wire to customerâ??s actual need
This wire is High Carbon Steel Round Wire with duly Smooth Surface finish and manufactured from High Carbon Steel wire rod.
The wires are custom built to suit Customerâ??s actual requirement.
Application: This wire used in making Ropes of various sizes
Specification:
1 Size 0.30 mm to 3.20 mm
2 Tolerance �±0.010 mm �±0.030 mm
3 UTS (Kg/mm2) 1230 to 1770 N/mm2
4 Surface finish Smooth & Clean
5 IS Code IS : 1835
The wires are generally supplied in Phosphated Drawn with Anti rust Oil Coating or as desired by the Customer.
Packing: The Weight & Coil specification can be adjusted to meet specific customer requirement. The Wire is packed with polythene and HDPE or as per customerâ??s need.
We specialize in supplying Rope wire to customerâ??s actual need.
