Steel Grating
It is steel bar according to a certain distance and cross arranged and welded into the middle of a square latice with an iron and steel products .

bearing bar 25/3mm , 25mm/4mm , 25mm/5mm , 30/3mm , 30/5mm,32/3mm,32/5mm ,40/3mm75/5mm,100/10mm
opening 30mm x 32mm , 30mm x 60mm, 30mm x 100mm , 38mm x 100mm , 40mm x 100mm , 50mm x 50mm ,50mm x 100mm etc
surface treatment black , hot dip galvanized
type plain bar, serrated bar , I shape bar
Hot dip galvanized steel grating tolerance

The allowed deviation of length is +0/-5mm, while the allowed deviation of width is +/-5 mm. The non-perpendicularity of bearing bar is allowed no more than 10% of width of bearing bar. Cross bar surface should not surpass bearing bar surface 1mm, beginning & end of cross bar should not surpass the end surfaces of two sides of grating 2mm.

Features
Corrosion resistance, Rust resistance.
Anti-slip resistance, Good air circulation.
Good drainage performance, Easy to install and uninstall.
High strength-to-weight performance,Durable and long lifespan.

Applications
Steel grating is widely used for work platforms. Catwalks, transportation
servicing areas and vehicle steps.

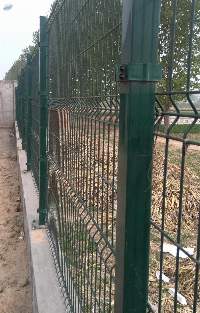

3D welded wire mesh fence system offers security but without an oppressive and intimidating appearance.

The mesh is 50x200mm, fully welded at every intersection.

The width of the panels suits post centre of approx. 2500mm

Welded wire mesh fence is available in a galvanized finish; in addition they can be colour coated in a wide choice of colors.

height width thickness size
Mesh panel 1.8m 2m/2.5m 4mm/5mm
Square post 1.8m/2m 1.5mm 60mm*60mm
Peach post 1.8m/2m 1.2mm 50mm*70mm70mm*100mm
Round post 1.8m/2m 1.5mm/2mm 48mm/60mm
Hole opening 50mm*200mm , 50mm*100mm
support leg 300mm
Post cap Plastic cap or Steel cap
Clamps Plastic clamps or steel clamp
Bolts&Nuts According to need
Single arm or double arm On request
Tension wire or barbed wire On request
Concertina razor wire On request
Anti-corrosion

Folded security fence panels are fully welded and 100% hot dip galvanized offering great strength , protection against corrosion and an incredibly long product life.

Easy to install

product installation without special accessories the use of propulsion installation , easy to hold grip simple and quick , reduce costs.

Safe fashion

The Folded panels are electric galvanized and can be powder coated any color to provide you with a stylish , and exceptionally long lasting fence

Expanded Metal can serve as a kind of substitute for perforated metal materials and it find most uses as fences,windows decoration,ventilation devices,shelves,racks,cages and some decoration purposes.

Standard expanded metal provides a high strength to weight ratio,and is often used to protect machines or people,by stopping a specific size material from entering as a specific area.All Metals such as Stainless Steel Alloys,Aluminum,Titanium,Steel,Cooper,can all be expanded into rhombic opending for various uses including enclosures,support,protection,decoration or filtration.

fdasf

Specification of expanded metal sheet

Item

Strand

Design sizes

Opening sizes

Open area

(%)

Thickness

(Inch)

Width

(Inch)

LWD

(Inch)

SWD

(Inch)

LWO

(Inch)

SWO

(Inch)

01

0.134

0.150

2.00

0.923

1.562

0.675

67

02

0.092

0.144

2.00

0.923

1.625

0.718

69

03

0.090

0.096

2.00

0.923

1.688

0.76

79

04

0.060

0.101

2.00

0.923

1.75

0.783

78

05

0.090

0.096

1.20

0.500

0.938

0.337

62

06

0.060

0.087

1.20

0.500

0.938

0.372

65

07

0.048

0.088

1.20

0.500

0.938

0.382

65

08

0.036

0.072

1.00

0.500

0.718

0.407

71

09

0.048

0.072

1.00

0.250

0.718

0.146

42

10

0.036

0.072

1.00

0.250

0.718

0.157

42

Gabion are made of double twisted hexagonal wire mesh. To fill with stones at the river bank or seaside to stop flood, on the mountain prevent rock falling.
1.Gabion materials: hot dipped galvanized wire and Galfan coated wire
2. Gabion mesh wire:2.0mm,2.2mm,2.7mm,3.0mm,
3. Gabion selvage wire :2.4mm,2.7mm,3.4mm,3.9mm
4 Gabion mesh size : 6*8cm, 8*10cm, 10*12cm, 12*15cm
5. Gabion lacing wire : 2.2mm, 5% of gabion weight
6. Gabion Zinc coating : 225-275g/m2 according to EN 10224-2
7. Gabion size : 2X1X0.5m , 2X1X1m, 3X1X1m, 4X2X0.5m, 6X2X0.3m
8. Gabion box Steel according to EN 10218-2 ,Tensile strength between 380N/mm2 and 500N/mm2

Box applications:

1)Control and guide of water or flood
2)Flood bank or guiding bank
3)Preventing of rock breaking
4)Water and soil protection
5)Bridge protection
6)Strengthening structure of soil
7)Protection engineering of seaside area

Specification of heavy hexagonal wire mesh

Opening

(mm)

Wire Diameter

(mm)

PVC Wire Diameter

Inside/outside (mm)

Max Breadth

(m)

60X80

2.0-2.8

2.0/3.0-2.5/3.5

4.3

80X100

2.0-3.2

2.0/3.0-2.8/3.8

4.3

80X120

2.0-3.2

2.0/3.0-2.8/3.8

4.3

100X120

2.0-3.4

2.0/3.0-2.8/3.8

4.3

100X150

2.0-3.4

2.0/3.0-2.8/3.8

4.3

120X150

2.0-4.0

2.0/3.0-3.0/4.0

4.3

Others we can do as your requirement

Welded Wire Mesh Is Made Of High Quality Iron Wire Through Automatic Process And Sophisticated Welding Technique, Laid Horizontally And Vertically, Individually Welded At Every Intersection. The End Products Is Level And Flat With Sturdy Structure.

Welded Wire Mesh Is Extensively Used In Industry And Agriculture, Building, Transportation And Mining For All Such Purposes As Poultry Houses, Egg Baskets, Runway Enclosures, Draining Rack, Fruit Drying Screen, Fence.
For Finish,We Can Supply The Following Kinds:
*Hot-Dipped Galvanised After Welding
*Hot-Dipped Galvanised Before Welding
*Eletric-Galvanised Aftre Welding
*Electric-Galvanised Before Welding
*Pvc-Coated
*In Stainless Steel

Standard Mesh IN ROLL OF 5M,10M,25M,30M AND 45M LONG AND 0.5M-1.8M WIDE

MESH

Wire Gauge

Inch

MM

(BWG)

1/4*1/4

6.4MM*6.4MM

22, 23, 24-25

3/8*3/8

10.6MM*10.6MM

19, 20, 21, 22

1/2*1/2

12.7MM*12.7MM

16, 17, 18, 19, 20, 21, 22, 23, 24

5/8*5/8

16MM*16MM

18, 19, 20, 21

3/4*3/4

19.1MM*19.1MM

16, 17, 18, 19, 20, 21

1*1

25.4MM*25.4MM

14, 15, 16, 17, 18, 19, 20

Packing:
Each Roll Packed By Water Proof Paper
Each Roll Shrink Wrapped
Other Packing Method May Be Accepted After Confirmation
Other Sizes Be Produced After Confirmation

3D welded wire mesh fence system offers security but without an oppressive and intimidating appearance.

The mesh is 50x200mm, fully welded at every intersection.

The width of the panels suits post centre of approx. 2500mm

Welded wire mesh fence is available in a galvanized finish; in addition they can be colour coated in a wide choice of colors.

height width thickness size
Mesh panel 1.8m 2m/2.5m 4mm/5mm
Square post 1.8m/2m 1.5mm 60mm*60mm
Peach post 1.8m/2m 1.2mm 50mm*70mm70mm*100mm
Round post 1.8m/2m 1.5mm/2mm 48mm/60mm
Hole opening 50mm*200mm , 50mm*100mm
support leg 300mm
Post cap Plastic cap or Steel cap
Clamps Plastic clamps or steel clamp
Bolts&Nuts According to need
Single arm or double arm On request
Tension wire or barbed wire On request
Concertina razor wire On request
Anti-corrosion

Folded security fence panels are fully welded and 100% hot dip galvanized offering great strength , protection against corrosion and an incredibly long product life.

Easy to install

product installation without special accessories the use of propulsion installation , easy to hold grip simple and quick , reduce costs.

Safe fashion

The Folded panels are electric galvanized and can be powder coated any color to provide you with a stylish , and exceptionally long lasting fence

Welded Mesh from Armstrong Wires and Engineers comes in different Various forms and sizes Inquiries are welcome

Steel Mesh

"Gratings are assembled grids of parallel bearing bars with crossbars used to space and hold the bearing bar erect. The assembled grid is used to cover the floor of any of various openings. Gratings provide a surface but allow air, light, heat, sound and water to pass through. It is strong and durable and maintenance-free.
Electro Forged Gratings are manufactured using Electro Forged machine with the flexibility and capacity of welding an extensive range of bearing bar of size from 25*3 mm up to 50*5 mm and crossbar size from 6 mm to 8 mm"

1. Thickness: The thickness of the steel plate mesh ranges from 0.5mm to 8mm.
2. Mesh width: The mesh width ranges from 2.5mm to 50mm.
3. Mesh length: Mesh length ranges from 4.5mm to 100mm.
4. Stem thickness: Stem thickness ranges from 0.5mm to 8mm.
5. Network width and length: the network width range is 0.5m to 2m, and the network length range is 1m to 4m.
6. Other specifications: Long pitch TB is 12.5-200mm, short pitch TL is 5-80mm, the mesh size is 600-4000mm long * 600-2000mm wide.

Its wide range of uses, including machine filter, medicine, paper, filtration, aquaculture, battery nets, packaging nets, mechanical facilities protection, arts and crafts manufacturing, high-grade speaker net cover, decoration, child seats, baskets, baskets and road protection. In addition, the steel plate net is also used for working machinery and boilers, platforms, escalators, walkways, such as tanker foot nets, heavy oil mines, locomotives, 10,000-ton ships, etc.

25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10---100x10mm etc
US standard: 1''x3/16'', 1 1/4''x3/16'', 1 1/2''x3/16'', 1''x1/4'', 1 1/4''x1/4'', 1 1/2''x1/4'', 1''x1/8'', 1 1/4''x1/8'', 1
1/2''x1/8'' etc
Bearing bar pitch
12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3, 32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc
US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc
Twisted Cross Bar Pitch
38.1, 50, 60, 76, 80, 100, 101.6, 120mm, 2'' & 4'' etc
Material Grade
ASTM A36, A1011, A569, Q235, S275JR, SS304, SS400,

Mild steel & Low carbon steel, etc
Surface Treatment
Black, self colour, hot dip
galvanized, painted, spray coating
Grating Style
Plain / Smooth, Serrated /teeth, I bar, serrated I bar
Standard
China: YB/T 4001.1-2007,
USA: ANSI/NAAMM(MBG531-88),
UK: BS4592-1987, Australia: AS1657-1985,
Germany: DIN24537-1-2006, Japan :J

Plaster Mesh

Insect net 40 Mesh & 20 Mesh
110 Gsm & 120,130 GSM
Available

25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10---100x10mm etc
US standard: 1''x3/16'', 1 1/4''x3/16'', 1 1/2''x3/16'', 1''x1/4'', 1 1/4''x1/4'', 1 1/2''x1/4'', 1''x1/8'', 1 1/4''x1/8'', 1
1/2''x1/8'' etc
Bearing bar pitch
12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3, 32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc
US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc
Twisted Cross Bar Pitch
38.1, 50, 60, 76, 80, 100, 101.6, 120mm, 2'' & 4'' etc
Material Grade
ASTM A36, A1011, A569, Q235, S275JR, SS304, SS400,

Mild steel & Low carbon steel, etc
Surface Treatment
Black, self colour, hot dip
galvanized, painted, spray coating
Grating Style
Plain / Smooth, Serrated /teeth, I bar, serrated I bar
Standard
China: YB/T 4001.1-2007,
USA: ANSI/NAAMM(MBG531-88),
UK: BS4592-1987, Australia: AS1657-1985,
Germany: DIN24537-1-2006, Japan :J

Dear All,
We can offer in big quantities of HDPE mesh transparent, washed very well, clean and dry, ready for pelletizing.
If you are interested kindly contact us for more information.

We Hitesh Metal. is a distinguished manufacturer, exporter and supplier of a wide assortment of Copper Alloy Wire Mesh. The offered mesh is broadly used for commercial and non-commercial applications.

Our range is widely acclaimed by our clients for its characteristic features such as durability, corrosion resistance and high tensile strength, Electromagnetic and thermal conduction properties, Resistant to atmospheric corrosion, Anti sparkling, Darkens after a period of time.

Specification for Copper Alloy Wire Mesh

Opening/Linear Inch Wire Diameter Width Of Opening Open Area
Inches mm Inches mm
2 Mesh 0.063 1.60 0.437 11.10 76.4%
4 Mesh 0.047 1.19 0.203 5.16 65.9%
4 Mesh 0.063 1.60 0.187 4.75 55.9%
8 Mesh 0.028 0.71 0.097 2.46 60.2%
10 Mesh 0.025 0.64 0.075 1.91 56.3%
12 Mesh 0.023 0.584 0.060 1.52 52.4%
14 Mesh 0.020 0.508 0.051 1.30 51.8%
16 Mesh 0.011 0.279 0.0515 1.30 67.9%
16 Mesh 0.018 0.457 0.0445 1.13 50.7%
18 Mesh 0.017 0.432 0.0386 0.98 48.2%
20 Mesh 0.016 0.406 0.0340 0.86 46.2%
24 Mesh 0.014 0.356 0.0277 0.70 44.1%
30 Mesh 0.013 0.330 0.0203 0.52 37.2%
40 Mesh 0.010 0.254 0.0150 0.38 36.0%
50 Mesh 0.009 0.229 0.0110 0.28 30.3%
60 Mesh 0.0075 0.191 0.0092 0.23 30.2%
80 Mesh 0.0055 0.140 0.0070 0.18 31.4%
100 Mesh 0.0045 0.114 0.0055 0.14 30.3%
100 Mesh 0.0022 0.055 0.0078 0.198 60.8%
145 Mesh 0.0022 0.055 0.00469 0.1168 46.4%

With firm commitment to quality, we Hitesh Metal. are engaged in Manufacturing & Exporting a quality-assured array of Star Insect Screen. With state-of-the-art infrastructure facilities we procure these product by using optimum quality material.

Our offered ranges of Insect Screen is widely used to prevent insects from entering the home, used in hotel, restaurant, communal building and residential houses to prevent the common insects or birds. These have aesthetic appearance and are offered in different options of size, range and colors.

Features

Light Weight
Good corrosion resisting and Rust resisting
Precisely designed
High grade material
Excellent finish
Size Specification for Star Insect Wire Mesh

Mesh Size Grade Guage
13*28.5 202,304,316(S.S) 0.33
16*23 202,304,316(S.S) 0.71
16*34 202,304,316(S.S) 0.22
14*30 202,304,316(S.S) 0.29
16*30 202,304,316(S.S) 0.30
Star Insect Wire Cloth Dutch Weave
Mesh Wire Dia.(mm)
12X64 0.58/0.64
14X88 0.50/0.33
24X110 0.36/0.25
30X150 0.23/0.18
40X200 0.18/0.13

We Hitesh Metal. have gained expertise in manufacturing & exporting a supreme quality of Phosphor Bronze Wire Mesh. Our range has gained appreciation from the clients due to its abrasion & corrosion resistance, higher strength and lower electrical conductivity.

The wire mesh manufactured and supplied to our customer is thoroughly checked and tested. we take into consideration every minute detail while manufacturing these wire meshes, whether it is uniform mesh counting or uniform wire thickness or strength of the wire mesh.

With genuine intentions to enhance our reputation in the national & international market, we Hitesh Metal. Manufacturer & export an exceptional quality wide range of Nickel Wire Mesh. The wire mesh which we offer is widely valued for their long lasting service and wide uses.

Nickel 200/201 Wire Mesh is technically pure nickel with good mechanical properties and excellent resistance to alkali hydroxides as well as organic compositions. Nickel 200/201 Wire Mesh is a multipurpose grade and is used in application where alloys are not essential. It also has good magnetic and magnetostrictive properties, high thermal and electrical conductivity as well as low gas content in the electronics industry.

With our expertise in this domain, we Hitesh Metal. are able to manufacture & Export a superior quality range of Brass Wire Mesh. All our products are available in various sizes, designs, and shapes at market leading prices to meet the demands of customers.

Our range of Brass Wire Mesh has gained appreciation from the clients due to its abrasion & corrosion resistance, higher strength and lower electrical conductivity. These are widely used for sieving various pellet, porcelain clay & glass, powder, chinaware printing, filtering liquid and gas.

Specification for Brass Alloy Wire Mesh

Mesh Wire Dia.(Mm) Opening(Mm)
SWG MM Inch
6 22 0.711 0.028 3.522
8 23 0.610 0.024 2.565
10 25 0.508 0.020 2.032
12 26 0.457 0.018 1.660
14 27 0.417 0.016 1.397
16 29 0.345 0.014 1.243
18 30 0.315 0.012 1.096
20 30 0.315 0.0124 0.955
22 30 0.315 0.0124 0.840
24 0 0.315 0.0124 0.743
26 31 0.295 0.0116 0.682
28 31 0.295 0.0116 0.612
30 32 0.247 0.011 0.573
32 33 0.254 0.010 0.540
34 34 0.234 0.0092 0.513
36 34 0.234 0.0092 0.472
38 35 0.213 0.0084 0.455
40 36 0.193 0.0076 0.442
42 36 0.193 0.0076 0.412
44 37 0.173 0.0068 0.404
46 37 0.173 0.0068 0.404
48 37 0.173 0.0068 0.356
50 37 0.173 0.0068 0.335
60x50 36 0.193 0.0076
60x50 37 0.173 0.0068
60 37 0.173 0.0068 0.250
70 39 0.132 0.0052 0.231
80 40 0.122 0.0048 0.196
90 41 0.112 0.0044 0.170
100 42 0.102 0.004 0.152
120x108 43 0.091 0.0036
120 44 0.081 0.0032 0.131
140 46 0.061 0.0024 0.120
150 46 0.061 0.0024 0.108
160 46 0.061 0.0024 0.098
180 47 0.051 0.002 0.090
200 47 0.051 0.002 0.076
