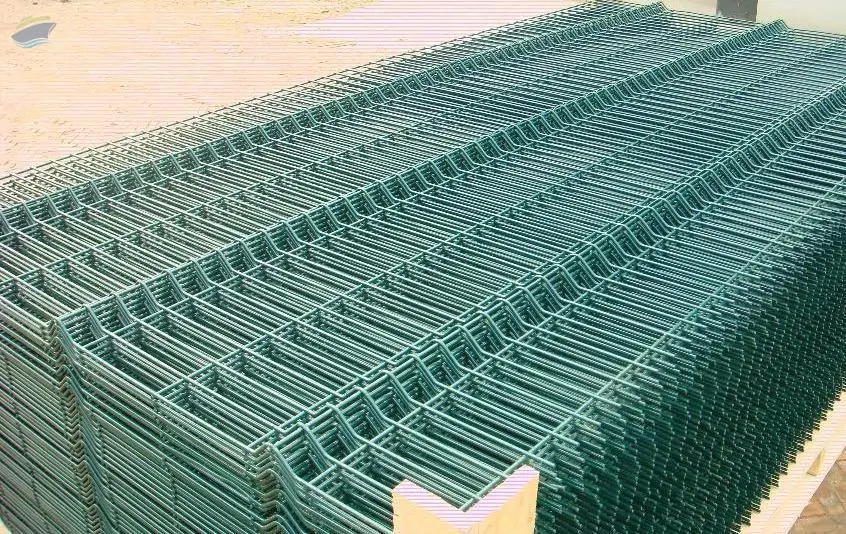

Welded Wire Mesh Fence

3D welded wire mesh fence system offers security but without an oppressive and intimidating appearance.

The mesh is 50x200mm, fully welded at every intersection.

The width of the panels suits post centre of approx. 2500mm

Welded wire mesh fence is available in a galvanized finish; in addition they can be colour coated in a wide choice of colors.

height width thickness size
Mesh panel 1.8m 2m/2.5m 4mm/5mm
Square post 1.8m/2m 1.5mm 60mm*60mm
Peach post 1.8m/2m 1.2mm 50mm*70mm70mm*100mm
Round post 1.8m/2m 1.5mm/2mm 48mm/60mm
Hole opening 50mm*200mm , 50mm*100mm
support leg 300mm
Post cap Plastic cap or Steel cap
Clamps Plastic clamps or steel clamp
Bolts&Nuts According to need
Single arm or double arm On request
Tension wire or barbed wire On request
Concertina razor wire On request
Anti-corrosion

Folded security fence panels are fully welded and 100% hot dip galvanized offering great strength , protection against corrosion and an incredibly long product life.

Easy to install

product installation without special accessories the use of propulsion installation , easy to hold grip simple and quick , reduce costs.

Safe fashion

The Folded panels are electric galvanized and can be powder coated any color to provide you with a stylish , and exceptionally long lasting fence
