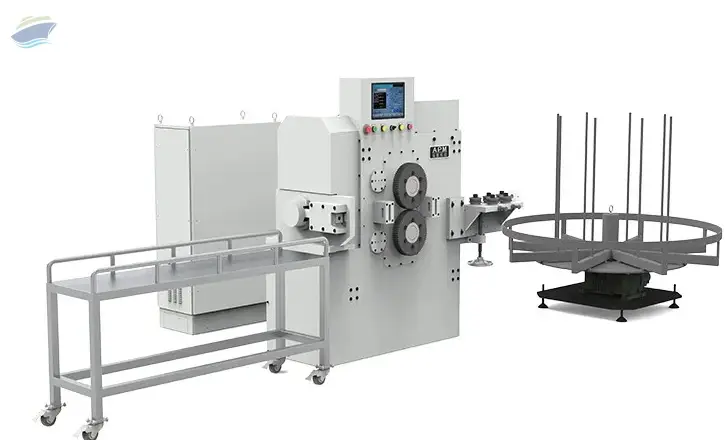

Apm Automatic Wire Crimping Machine

Designed to precisely crimp metal wires into uniform wave patterns for mining screens, industrial sieving, construction meshes, and filtration applications, ensuring high efficiency, consistency, and long service life.

Hebei Zonghang Machinery Manufacturing Co., Ltd is the leading manufacturer in China which specialized in metal.wire weaving machines and crimped wire mesh machines for over 30 years old.

APM wire mesh machine specialize in producing high-precision, highly durable crimped wire mesh for screening, grading, and vibrating applications at low cost. The automatic wire crimping machine is a key auxiliary unit for fully automatic crimped wire mesh weaving machines and one of our core strengths, designed to create added value for our customers.

Wire Crimping Machine FC101/102C SK20 SK40
Name Wire crimping machine Full PLC Wire crimping and cutting Machine Full PLC Wire crimping and cutting Machine
Wire diameter 0.7-2.0mm or 1.5-4.0mm 1.0-1.0mm 2.0-14.0mm
Wire material Stainless steel , Spring steel 65Mn Stainless steel , Spring steel 65Mn Stainless steel , Spring steel 65Mn
Maximum speed 30mtrs/mints 30-45mtrs/mints 20mtrs/mints
Main motor 3.0KW Main servo motor 4.0KWx2
Cutter servo motor: 2.2KW
Height Adjust servo motor: 1.5KW Main servo motor 7.5KWx2
Cutter servo motor: 3.0KW
Height Adjust servo motor: 1.5KW
Crimping wheel OD 120-130mm 240-340mm 330-380mm
Machine Size 1300*1100*1280mm 1200x1800x1500mm 1200x2000x1500mm

Can't find the automatic crimped wire mesh machine you need?

Contact us today and let us provide a better solution for you.

Automatic Wire Pre-crimping Machine FC101/102C
Type: APM-FC101/102C

Wire Diameter: 0.7-2.0 or 4.0mm

Maximum Speed: 30mtr/mints

Main Motor: 1.5KW or 3.0KW

Horizontal &Vertical wire straighteners Crimping Wheel OD: 120-130mm

Automatic Wire Pre-crimping Machine SK20
Type: APM-SK20

Wire diameter: 1.0-10.0mm

Maximum speed: 30mtr/mints

Motor: Main Servo Motor 4.0KW*2

Cutter Servo Motor: 2.2KW

Height adjust Servo Motor: 1.5KW

Horizontal &Vertical wire straighteners Crimping Wheel OD: 260-310mm

Automatic Wire Pre-crimping Machine SK40
Type: APM-SK40

Wire diameter: 2.0-14mm

Maximum speed: 20mtr/mints

Motor: Main Servo Motor 7.5KW*2

Cutter Servo Motor: 3.0KW

Height adjust Servo Motor: 1.5KW

Horizontal &Vertical wire straighteners Crimping Wheel OD: 330-380mm
