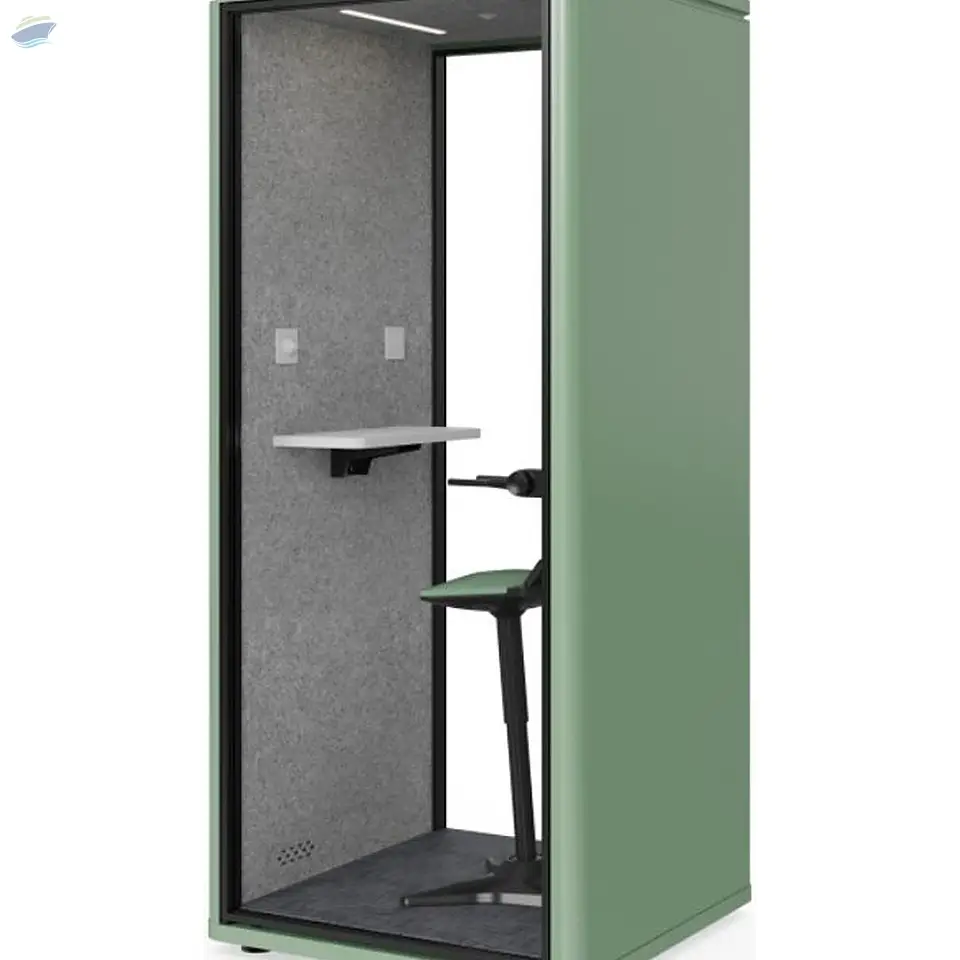

Sm Soundproof Office Pod 1100X1100X2300Mm

Price for reference only, contact us for the best quote.
The SM Pod is a single-person soundproof phone booth with a slightly larger footprint, for private calls, video meetings and focused work. It creates a quiet, private space inside open-plan offices, co-working spaces, libraries and other shared environments, with a speech level reduction of 30.3 dB and high-volume ventilation that cycles the air inside the cabin once every 30 seconds.

### Dimensions & Packing
- Exterior dimensions (W x D x H): 1100 x 1100 x 2300 mm (43.31 x 43.31 x 90.55 in)
- Interior dimensions (W x D x H): 954 x 1030x 2124 mm (37.56 x 40.55 x83.62 in)
- Package size (L x W x H): 2280x 1200 x 630 mm (89.76 47.24 x 24.8 in)
- Gross weight: approx. 385 kg / 849 lb
- Volume: 1.73 cbm
- Container loading: 20' GP: 12 sets; 40' HQ: 36 sets

### Structure & Materials
- Frame: 6063-T5 aviation-grade aluminium structure
- Walls: outer layer of 1.0 mm cold-rolled steel plate with a 3 mm shock-absorbing layer attached; 50 mm sound-absorbing acoustic material in the interlayer; 9 mm PET acoustic board on the interior. All materials are recyclable and environmentally friendly, without harmful substances.
- Glass: 10 mm tempered soundproof glass
- Door: 4+6 mm laminated soundproof glass door panel
- Ceiling: double-layer 0.8 mm steel plates with 30 mm sound-absorbing material in between and 9 mm PET board inside
- Floor: multi-layer soundproof floor with 5 mm soundproof, fire-resistant and wear-resistant carpet and 25 mm fireproof decorative panel; universal wheels and adjustable leveling feet for easy positioning
- Optional: fabric finishes for interior and exterior panels

### Electrical
- Power supply: AC 100-240 V, 50/60 Hz, with 1.5 m (4.9 ft) power cord
- Lighting: 4000K LED lighting with motion-sensor activation for comfortable, energy-efficient illumination
- Ventilation: 3x 24 V DC fans delivering up to 4.6 m³/min (air inside the cabin cycled once every 30 seconds)
- Power socket: 1 integrated universal power socket with 1 USB-A and 1 USB-C charging port; CAT6 data port optional
- Power consumption: typical operating power 13.6 W
- Optional: LCD smart control system, touch dimmer for light and ventilation, occupancy indicator light

### Customization & Supply
- Colors customizable (exterior and interior finishes)
- Size and logo customization available =OEM/ODM welcome
- Factory-direct supply
- Dealers and distributors welcome worldwide
- Contact us for a quotation


---
