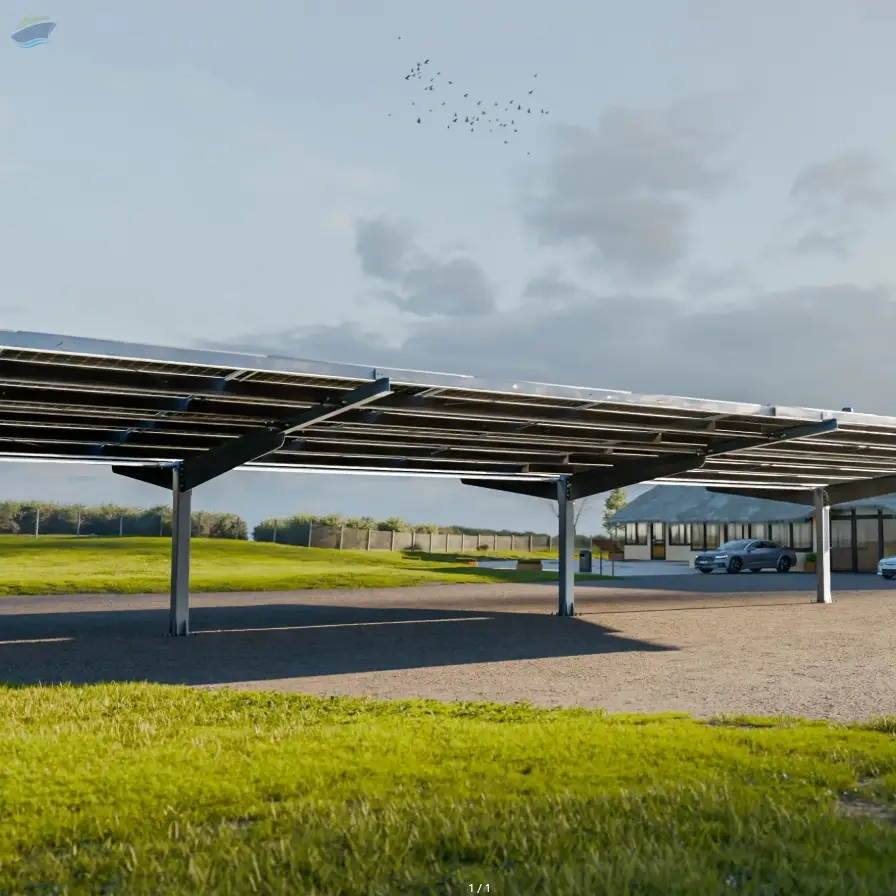

Single-Post Solar Carport

System Advantages Overview
Clear Space for Cars

Obstruction-Free: Column anchors mount at the parking stall boundary line.

Driver Convenience: Zero front posts allow drivers to open doors fully and reverse safely without collision risks.

Cantilever Strength

High Load Capacity: Rated for asymmetrical wind uplift speeds up to 50 m/s.

Robust Structure: Hot-dip galvanized H-shaped steel columns and beams absorb high bending moments at knee joints.

Long-Term Stability: Heavy-duty bolted connections withstand years of cyclic environmental loading.

Fewer Footings

Reduced Foundations: A single-spine design requires only one foundation per bay, minimizing required cast-in-place footings or drilled piles per megawatt.

Faster Deployment: Decreased earthwork accelerates concrete curing and allows the parking lot to return to service sooner.

Adjustable Geometry & Clearance

Flexible Tilt: Array angles adjust between 5�° and 15�° to meet site-specific energy requirements.

Versatile Clearance: Standard clearance is set at 2.2 m for passenger cars, with scalable options up to 4.0 m+ for commercial fleets.

Broad Compatibility: Cross beams and W-gutter rails support both standard framed and glass-glass bifacial modules using pre-assembled end and inter clamp kits.

Testing & Certifications

Safety & Compliance: Certified under UL 2703 (Bonding, Grounding, Mechanical Load), CE mark, and MCS.

Structural Ratings: Complies with AS/NZS 1170 and Eurocode standards for severe wind and snow loads.

Corrosion Resistance: Salt spray tested for anodized aluminum and stainless steel components.
