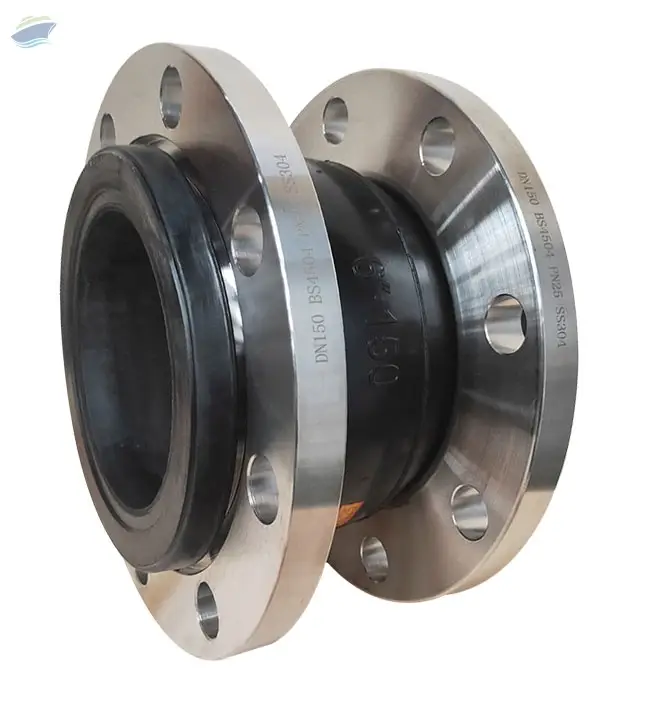

Customizable Kxt Single Sphere Rubber Joint

The Customizable KXT Single Sphere Rubber Expansion Joint is a flexible flanged connector designed for vibration isolation, noise reduction and controlled axial, lateral and angular movement in industrial piping systems.

Henan Mingchao Fluid Technology Co., Ltd. also manufactures Restrained Rubber Expansion Joints, KST Double Sphere Rubber Expansion Joints, JDX Concentric Reducing Rubber Expansion Joints, Vacuum-Resistant Rubber Expansion Joints, PTFE-Lined Rubber Expansion Joints, VSSJA-2 (B2F) Telescopic Joints, VSSJAF (C2F) Dismantling Joints, JDZ Axial Metal Bellows Expansion Joints, Grooved Bellows Expansion Joints, Grooved-End Flexible Metal Hoses and JR Stainless Steel Flexible Metal Hoses.

Model: KXT
Type: Single Sphere Rubber Expansion Joint
Connection: Flanged

Main functions:
â?¢ Vibration isolation
â?¢ Noise reduction
â?¢ Axial compression and extension
â?¢ Lateral displacement
â?¢ Angular movement

Rubber materials can include EPDM, NBR, NR, CR, IIR and FKM. Material selection should be based on the conveyed medium, operating temperature, working pressure and service environment.

Available flange requirements can include ANSI/ASME, DIN/EN, JIS/KS, GB and project-specific drilling. Custom flange dimensions can be manufactured according to approved drawings.

Typical applications include pump suction and discharge piping, HVAC and chilled-water systems, water supply, wastewater treatment, cooling-water systems, valve connections, industrial process piping and infrastructure projects.

Customization is available for DN/NPS size, face-to-face length, rubber material, flange standard, flange drilling, flange material, pressure rating, installation dimensions and required movement.

For an accurate quotation, please provide DN/NPS, flange standard, pressure rating, operating temperature, conveyed medium, required movement, face-to-face length, rubber material if specified, quantity and project drawing if available.

Products can be manufactured according to confirmed technical requirements and approved customer drawings.
