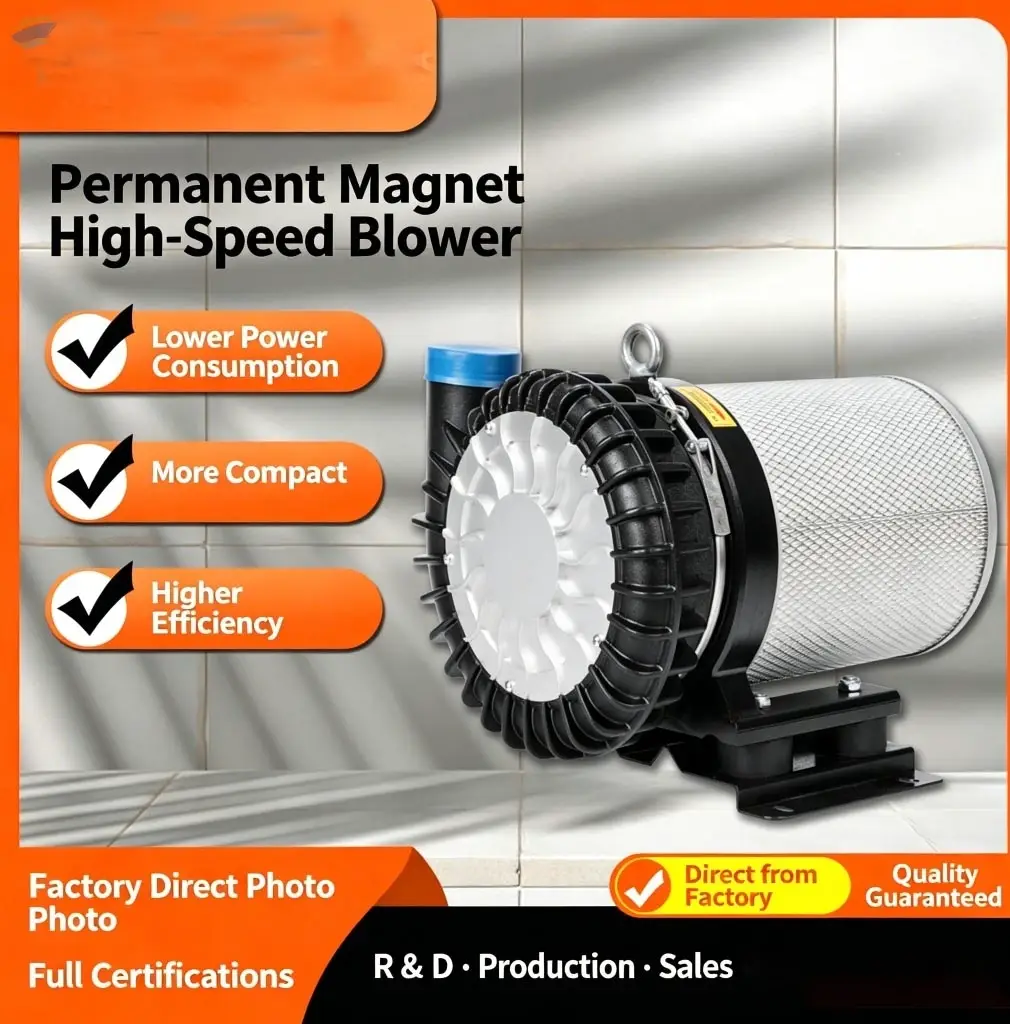

Permanent Magnet High-Speed Blower

Ultra-Compact, High-Efficiency Air Supply Engineered for Peak Performance

Why Choose Our Permanent Magnet High-Speed Blower?
Powered by an advanced permanent magnet motor and high-speed direct-drive technology, this blower delivers exceptional airflow performance in an ultra-compact, lightweight design.
With a rotational speed of 15,000 RPM and a high-efficiency frequency of 500 Hz, it outperforms conventional blowers while consuming less energy and requiring minimal maintenance.
At just 30 kg and measuring only **376.5x345x 434.5 mm**, it is the ideal space-saving solution for installations where footprint and weight matter without compromising on power or pressure.
Key Selling Points
High-Efficiency Permanent Magnet Motor
Advanced PM motor technology delivers superior energy efficiency and lower operating costs compared to traditional induction motors.
15,000 RPM High-Speed Operation
Direct-drive design eliminates belt and gear losses, delivering maximum airflow with minimal mechanical friction.
1,400 m³/h High Airflow
Generates a powerful, consistent airflow of 1,400 m�³/h at 180 mbar pressure â?? ideal for demanding aeration and conveying applications.
Ultra-Compact & Lightweight
At only 376.5 x 345x 434.5 mm and 30 kg, it fits into tight spaces and is easy to install, relocate, and service.
Low Noise & Vibration
High-speed balanced rotor and integrated design ensure smooth, quiet operation for a more comfortable working environment.
Oil-Free & Maintenance-Free
No belts, gears, or lubrication required reducing downtime and long-term maintenance costs.
Technical Specifications
Parameter Specification
Product Type Permanent Magnet High-Speed Blower
Power 4 kW
Air Flow 1,400 m³/h
Pressure 180 mbar
Rotational Speed 15,000 RPM
Frequency 500 Hz
Dimensions (L xW x H) 376.5 mm 345 mm x434.5 mm
Weight 30 kg
Performance at a Glance
Feature Our PM High-Speed Blower Conventional Blower
Motor Type Permanent Magnet Induction / AC
Max Speed 15,000 RPM 2,900-3,500 RPM
Energy Efficiency High Low to Medium
Drive System Direct Drive Belt / Gear
Maintenance Oil-free, minimal Frequent lubrication
Footprint Ultra-compact Large & bulky
Weight 30 kg 80-150 kg
