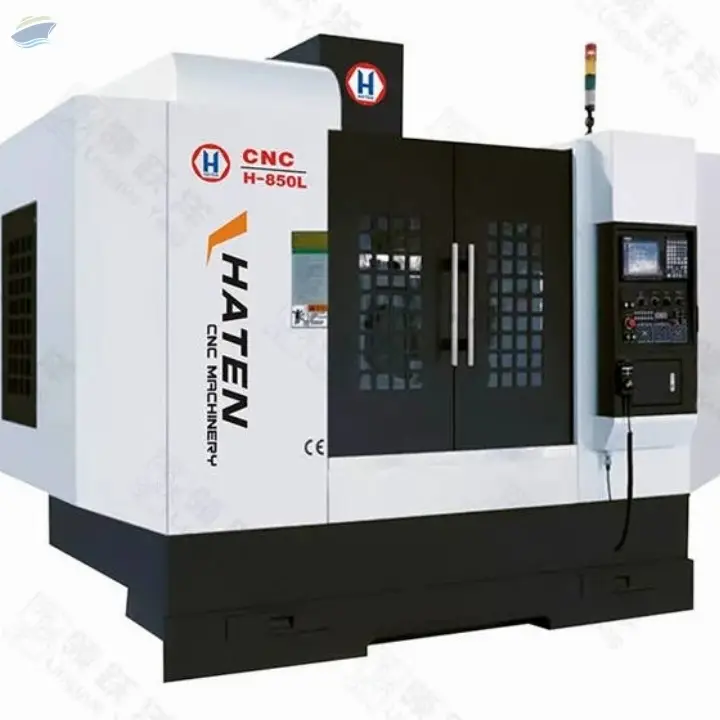

H-850L Computer

H-850L COMPUTER NUMERICAL CONTROL (CNC)
Product Description

High rigidity precision linear guides are selected, featuring high speed, low noise and low wear, which are suitable for the rapid processing of precision mold parts.
The spindle adopts C3 high-precision lead screw angular contact ball bearings and a high-strength arrangement structure.

It is driven by a high-torque, low-noise and highly stable AC control servo motor.

The powerful cutting ability combines with outstanding accuracy and performance, making inlaying and hole drilling operations simple and easy.

Computer Numerical Control is widely used in the processing industries of machine tools, auto parts, lighting fixtures, hardware and other parts.
Specifications
Item unit H-850L
Worktable area mm 1000*500
Worktable maximum loading kg 450
T-Slot(slot*width*distance) mm 5-18*90
Spindle nose taper BT BT40
X/Y/Z axis travel mm 800/500/600
Distance between spindle end face and worktable end face mm 110-710
X, Y, Z axis gauge specifications 35/45/Sliding rails
Spindle � Speed (Belt type/Direct Connection) rpm 8000/12000
Tool magazine capacity T 24
X/Y/Zaxis fast displacement m/min 24*24*18
Cutting feed speed m/min 1-8000
Repeated positioning accuracy mm �±0.003/300
Machine weight Kg 5000
As an innovative manufacturer of composite machining centers, we focus on providing multi-functional CNC solutions that can complete turning, milling, drilling and tapping of complex workpieces in one clamping, greatly improving production efficiency and machining accuracy.
