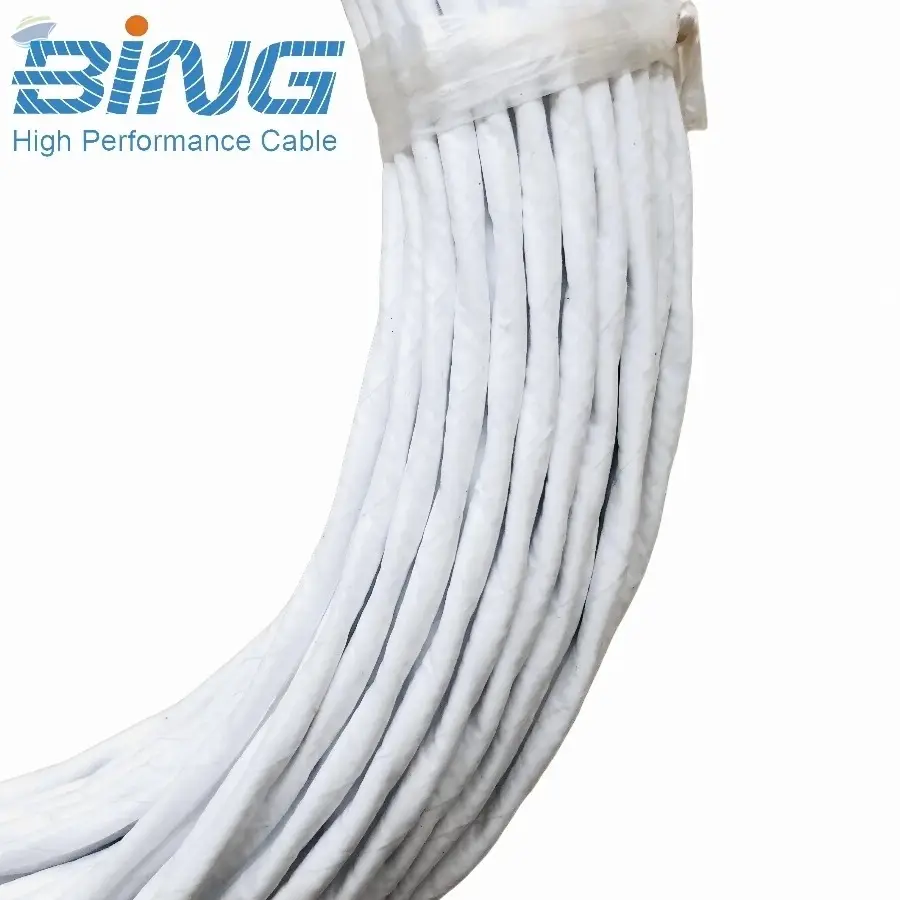

Afr-200 Ptfe Wrapped Copper Hook-Up Wire

Product Introduction
AFR-200 is thin-wall small cross-section hook-up wire with PTFE film wrapped insulation, rated for 250V AC continuous operation and long-term working temperature up to 200C.
Constructed with stranded high-purity fine copper conductor complying with GJB 1640 standard, this wire is designed for electrical & electronic equipment whose ambient or component temperature stays within 200C, as well as circuits prone to overload current and heavy mechanical compression. It is the ideal internal wiring for compact, weight-sensitive instruments and electronic devices thanks to outstanding flexibility, repeated bending resistance and anti-vibration property. Its PTFE insulation can withstand high soldering iron heat without shrinkage or melting during welding assembly.

Core Basic Electrical Spec
1.Rated Voltage: 250V AC
2.Operating Temperature Range: -60 ~ +200
3.Insulation Resistance: 1.5-10 Mm at 20
4.Available Colors: Black, Brown, Red, Orange, Yellow, Green, Blue, Purple, Gray, White, Transparent or custom specified hues & stripe colors
Key Product Features
High Dielectric Strength & Arc Resistance: Premium PTFE insulation delivers excellent breakdown voltage and superior anti-arc performance.
Superior Weather & Aging Resistance: Zero water absorption, excellent UV & oxygen stability, long service life under harsh outdoor & high-temperature environments.
High Flexibility & Mechanical Durability: Fine stranded copper construction for superb flex & anti-fatigue performance, perfect for tight-space routing inside precision equipment.

Typical Application Scope
1.Internal wiring for precision instruments, analytical meters, laboratory testing equipment
2.High-temperature control & internal wiring of industrial electrical appliances, aerospace small electronic modules
3.Compact electronic devices, sensor internal leads, wiring under overload & high mechanical compression working conditions
