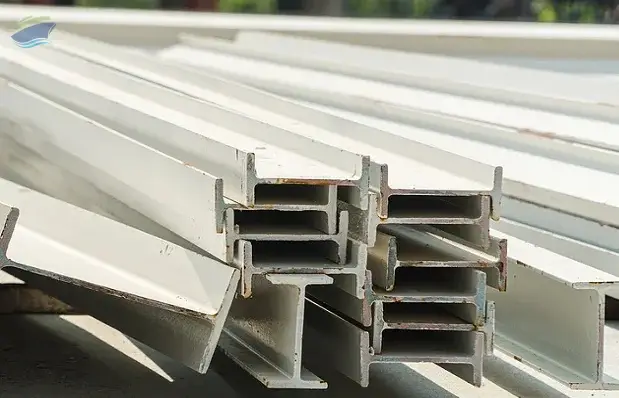

Beams Columns

Beams and columns are key structural elements as they create a safe load path to transfer the weight and forces on a structure to the foundations and into the ground.

Beams, also known as I-Beams / H-Beams / W-Beams, are horizontal structural elements that carry loads perpendicular to their longitudinal direction. They are used to support the weight of floors, ceilings, and roofs as well as shift load to the structure's vertical load-bearing element. Columns are vertical structural elements that transfer the load parallel to the longitudinal axis as compression or tension. They are used to support floor and roof beams. Hence, beams and columns are extensively used in construction and engineering projects.

Beams & Columns are available in various configurations and selected based on the applied load for each application. Agyor Global supplies Beams & Columns of Indian Origin manufactures ,These sections comply with various Indian and International Standards to meet different segment requirements

Benefits
High Strength to Weight ratio
Superior Weldability
Wide Dimensional Range
Atmospheric Corrosion Resistance
Multiple sectional weights
Cost effective

Material Specifications
Universal Beam
Min. (mm x mm) : 152 x 89
Max. (mm x mm) : 610 x 229

Universal Column
Min. (mm x mm) : 152 x 152
Max. (mm x mm) : 356 x 406


Narrow Parallel Flange Beam
Min. (mm x mm) : 180 x 90
Max. (mm x mm) : 600 x 220

Wide Parallel Flange Beam
Min. (mm x mm) : 150 x 150
Max. (mm x mm) : 900 x 300

Indian Standard Medium Beam
Min. (mm) : 150
Max. (mm) : 600

Applications
Power Plant and Refinery Structures

Machine Bases

Offshore Structures

Freight Cars

Industrial Sheds and Warehouses

Frame Supports for Trolley ways, Lifts, Hoists

Beam Supports for Flyovers and Bridges

Grades & Specifications

IS (INDIA) ASTM (USA)
IS 2062 : E250, E300, E350, E410, E450, E550 A 36
