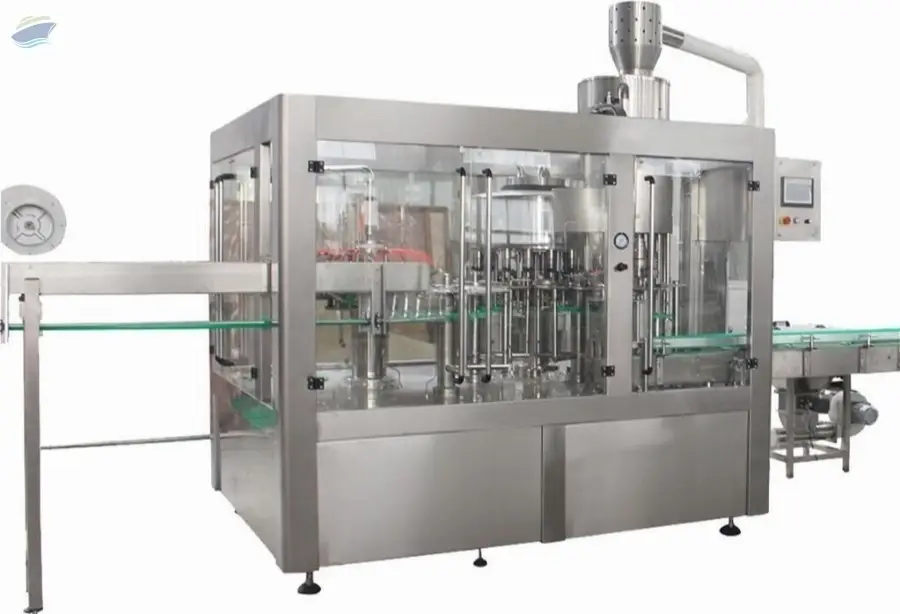

Auto Rinsing Filling Capping Machine

Technical Specifications
* Rinsing filling and capping functions are
integrated in one system, fully automatic
synchronized working.
* Bottle travels on neck to neck from in-feed till
out-feed resulting scratch free movement of
bottle.
* Counter Pressure assisted gravity filling valve
deliver fast, efficient and accurate filling
without foaming.
* No bottle - No filling / Capping interlock.
* 304 stainless steel contact parts.
* Stuffing box with integrated CIP
(Clean In Place) return system.
* PLC Controlled. VFD for speed control.
* Cap elevator with ground level hopper.
* Cap Rinsing System.
* Online UV Sterilization for cap.
* Speed: 60 bpm - 240 bpm.
Semi-automatic Filling Machine
Technical Specifications
* 4 Hd Counter Pressure Filler is a Semi
Automatic Filler for CSD.
* Bottles are placed manually on the neck
holder of the filler.
* Bottles move upwards to the Filling valve.
* As soon as the valve is open, the
counter pressure is maintained in the bottle
and the Liquid starts flowing into the bottle.
* The unit c o n s i s t s of 4 counter Pressure
Filling Valve.
* 4 nozzles at the front and 2 nozzles at the
back.
* The Liquid inside the tank is being
maintained by Counter Pressure numeric valve
