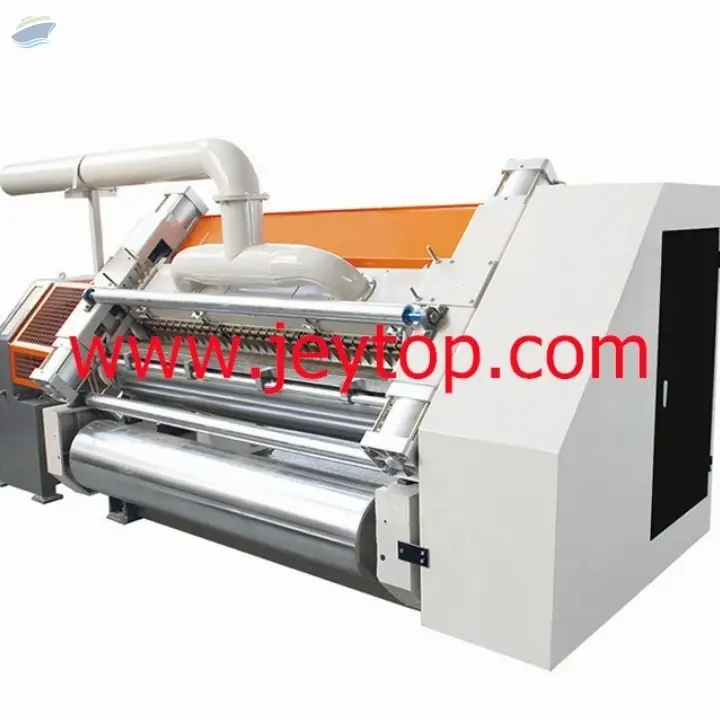

Jeytop Sf280 Single Facer Machine

$15000 - $16000 / Set
HS Code: 84413090
MOQ: 1 Sets
Origin: China
Delivery Time: 30
Grade: JYTP-SF280
Incoterms: FOB
Sample Cost: Buyer
Mention destination port, expected quantity and required specifications in your inquiry.

Key Specifications

Price$15000 - $16000 / Set
MOQ1 Sets
Capacity500 Sets Per Year
PackagingIn Strong Plastic Film
HS Code84413090
OriginChina
Product GradeJYTP-SF280
Loading PortTianjin Port, China
Trademark NameJEYTOP
StandardISO 9001:2008
IncotermsFOB
Sample CostBuyer

Product Description

1. Paper feeding way is vacuum suction way and perfect flute formation in high speed production.
2. Available width:1400/1600/1800/2000/2200 mm
3. Flute type: A, B, C, D, E, F,G UV
4. Corrugated roller:�??280/300/320/360/380mm
5. Drive using chain drive
6. The glue coating part adopt automatic circulating glue feeding way (manual or electrical isolation device)
7. Pneumatic control to adjust the glue feeding and adjust gluing capacity electrically or manually; the glue parts running separately while the main motor stopped, prevent paste from drying up.
8. It is equipped with the high pressure powerful air fan with the wind capacity adjustable device and silencer; air source and electric control are in one cabinet
9. The machine wall made by cast iron and thickness 130mm
10. The corrugated roller materials 50CrMo alloy, the inner hole is fine bored, tempered and finish turned and the surface is medium-frequency quenched, CNC polished and fine grinded and hard chrome-plated.
11. The corrugated roller diameter �?�¢280mm; Hardness can reach more than HRC60 which ensures good wear-resistance and long life service.
TECHNOLOGY PARAMETERS

Model SF320-1800
Working width 1800 mm
Heating way electric
Flute type A B C D E F
Operate direction Left or right according to customer's factory
Designed speed 100m/min
Economic running speed 0-80m/min
Temperature range 160-200C
Air source 0.4-0.8Mpa

Full Specifications

Product NameJeytop Sf280 Single Facer Machine
BrandJEYTOP
ModelJYTP-SF280
Seller CodeJytp-sf280
Production Capacity500 Sets Per Year
Product GradeJYTP-SF280
Usage / ApplicationProduce 2 ply corrugated cardboard
Loading PortTianjin Port, China
Trademark NameJEYTOP
StandardISO 9001:2008
PackagingIn Strong Plastic Film
Price$15000 - $16000 / Set
Minimum Order1 Sets
Delivery Time30
IncotermsFOB
Sample CostBuyer
HS Code84413090
Country of OriginChina
