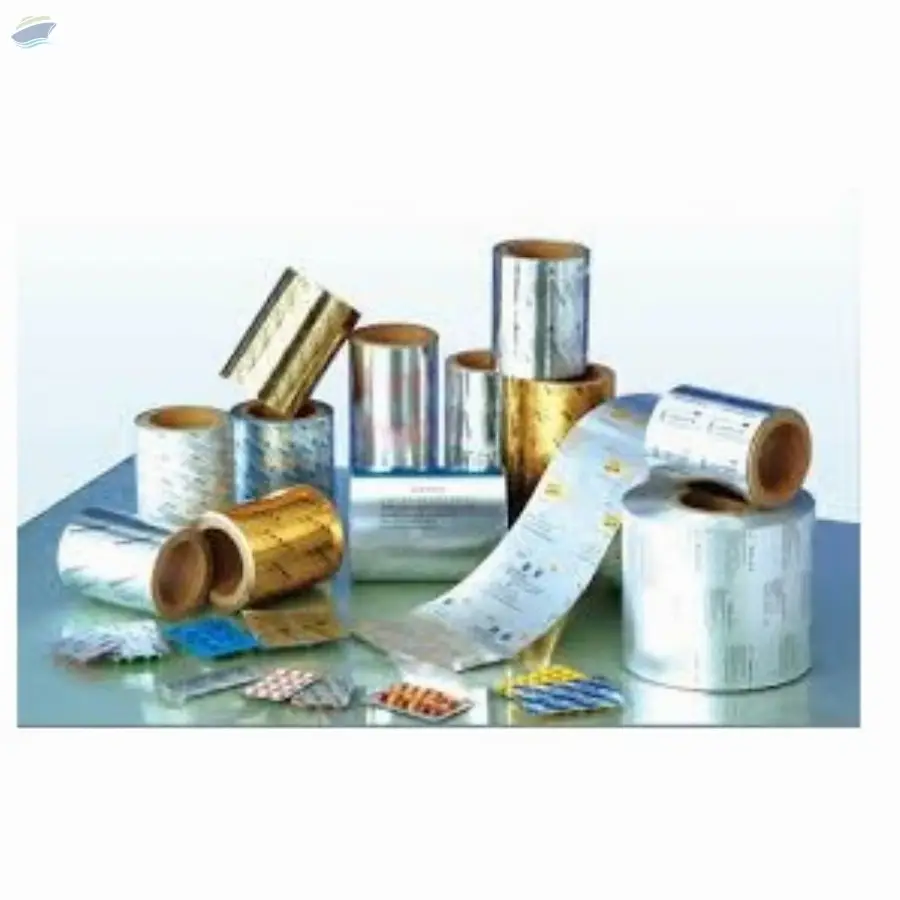

Blister Foil Rolls (Printed/plain) Pharma Foil

Widely used in the pharmaceutical industry, laminated foil protects its contents from moisture and
gases. Foil thickness options offered are:

0.030 +/- 0.0024 mm (Foil gsm = 81.30 +/- 6.50)
0.040 +/- 0.0032 mm (Foil gsm =108.40 +/- 6.67)

The testing procedure includes weighment of a�  10 cm x 10 cm sample of the order. Foil surface
options include-
One side bright and other side matt
Both sides bright
Polymer Coating options offered by our company include: Colorless polyethylene coating for sealing
purpose, conforming to the applicable Government Regulations regarding direct contact with
medicines and drugs.

Standard Polymer Nominal Tolerance Gauge Options are-
150 Gauge 34.5 +/- 3.45
180 Gauge 41.4 +/- 4.1

Price range: From USD 6.00 to USD 8.00 per KG, depending on specifications.

Minimum order quantity: 200 KGS per size per design.

Holographic threads are fused into the blister foil in such a way that the hologram becomes the part of blister foil and cannot be removed or tampered. ur foils are of high quality and are consistent and reliable.The aluminum foil is directly embossed (max width 160mm) hologram image on the surface of the aluminum foil. It's embossed by hologram nickel shim. Post this,a customized holographic image is transferred on the aluminum foil using advanced technologies.

Price range: From USD 9.50 to USD 11.00 per KG, depending on specifications.

Minimum order quantity: 200 KGS per size per design.

Product Specification & Packing

Product Name Blister aluminum foil/Pharmacitical aluminum foil/PTP aluminum foil

Alloy 8011 H state

Width 600mm

Thickness 20mic, 25mic, 30mic

Construction (Unprinted) OP/ALU/VC; (Printed) OP/INK/ALU/INK/VC

ID 76mm/152mm(3 inches/6 inches)

ED 240mm

Length 1500m(20mic)

Weight 60g/(20mic); 20kg/roll(250*0.02mm)

Density 2.7g/

Packing PE film/Foam gasket/plastic plug/carton/pallet

Container load 20-25 tons in 20 GP container

Product Performance And Characteristics



1 Primer (OP) is suitable for uvink, solvent ink, water based ink

2 Heat sealing lacquer (vc) is suitable for ALU ALU FOIL/PVC /PP/PS/PET

3 HSL 3-5g is suitable for Asian standards, 6-8g is suitable for European standards

4 Printing colors: 1-3 colors, double-sided printing, full bottom with single color printing

5 Water vapor transmission rate, national standard 0.5g/24h

6 Heat sealing strength 7.0N(PVC),6N(PVDC)
Blister Aluminum Foil is a kind of coated aluminum foil, used for cover lidding foil in pharma industry. It provides excellent properties such as of anti-oxygen, moisture-proof, leak-proof, carry-home, anti-pollution, etc.

Adopting hard anodized aluminum as cover material, blister foil is easy to break aluminum foil to take out the drugs by pushing the cover. Adopting heat-seal coating material, which cannot be stripped, PTP blister foil can be bonded with all kinds of plastic-based materials.



PRODUCT USAGE

Commenly heatsealed with PVC, PVDC, PP PET PE etc.

Aluminum Foil

Alloy 1100, 1235, 3003, 8011, 8021, 8006, 8079
Temper H14, H16, H18,H22, H24, H26
Thickness 0.0045-02MM
Width 200-1800MM

Household Foils, cable foils, Bilster foils, ALU/ALU Foils, Fin Stock

For paramedical and pharmaceutical producers, Blister Foil is used for medical purposes; it comes as an aluminum hard-tempered foil with heat-seal lacquers of PVC/PVDC applications.

Request online quotation for Lidding Foils via our E-catalogue:
We also manufacture strip foil and top web film.

Lamination Foil

Specification:
Types: PA30/AL60/PVC60, PA30/AL65/PVC60 (Customized)
Width: 140mm, 160mm, 240mm, 250mm, 260mm (Customized)

Ultra Light Gauge Foil

Medium Gauge Foil
