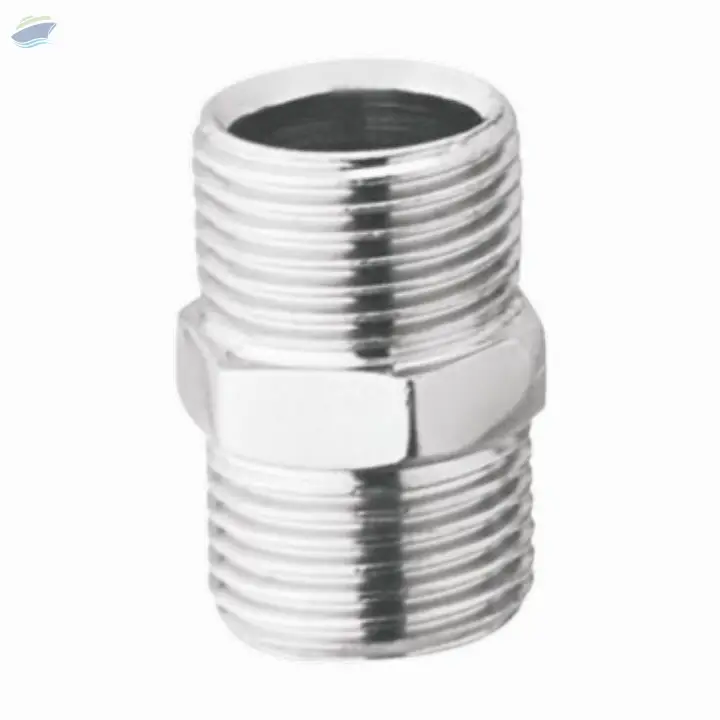

Hex Nipple

Specification
BS3799

Nominal Size
A (Min) W (Min) E (Min)
b
(1>
C (Min) F (Min) Equal Reducing
In DN In DN
(2)
3M
ï¼?2ï¼?
6M
1/8 (6) 11 26 10 5 2 6
1/4 (8) 15 36 15 8 6 6
1/4 x 1/8 (8x6) 15 31 15 5 2 6 10
3/8 (10) 18 40 16 11 8 8 3/8x174 (10x8) 18 39 16 8 6 8 15
1/2 (15) 22 48 20 14 11 8
1/2 x 3/8 (15x10) 22 44 20 11 8 8 16 172x1/4 (15x8) 22 43 20 8 6 8 15
3/4 (20) 27 52 21 19 13 10 3/4 x 1/2 (20x15) 27 50 21 14 11 9 20 3/4 x 3/8 (20x10) 27 46 21 11 8 9 16
1 (25) 35 60 25 24 17 10
1x3/4 (25x20) 35 56 25 19 13 10 21 1x1/2 (25x15) 35 55 25 14 11 10 20
1-1/2 (40) 50 68 26 38 30 16
1-1/2 x1 (40x25) 50 67 26 24 17 16 25 1-1/2x374 (40x20) 50 63 26 19 13 16 21 1-172x1/2 (40x15) 50 62 26 14 11 16 20
2 (50) 62 71 27 49 39 17
2x1-172 (50x40) 62 70 27 38 30 17 26 2x1 (50x25) 62 70 27 24 17 18 25 2x3/4 (50x20) 62 65 27 19 13 17 21 2x1/2 (50x15) 62 65 27 14 11 18 20

GI Hex Nipple

REDUCER HEX NIPPLE Thread Reducer Hexagon Nipple Stainless Steel Wedling Nipple
If you are finding thread reducer hexagon nipple in China, we will be your best choose! We have our own factory, so we can give you a cheap price!
STANDARD SIZE
ITEM 1/8" 1/4" 3/8" 1/2" 3/4" 1" 11/4" 11/2" 2" 21/2" 3" 4"
JINSON I 14.5 18 21.5 27 34 42.7 48.5 60.5 78 91 116
L 22.5 26.5 30.5 35.5 39.5 45 47.5 51.5 59 64.5 74

Product type Threaded Fittings
Product name Reducer Hex Nipple
Place of Origin Cangzhou Hebei, China (Mainland)
Production process Stainless steel precision casting
Process standards ASTM A351
Processing technology CNC lathe
Medium Air, steam, kerosene, water, oil and other fluids
Materia Stainless Steel, SS 304/ SS 316
Specifications 1/8â?³4â?³
Thread standard ISO7/1 (BSP/DIN2999),  NPT (B1.20.1)
Working pressure 150LBS
Working temperature -20 to +220
Inspection standard ISO7-2ã??ISO4990ã??ISO4991
Packing method â? .Plastic bagï¼?carton ï¼?plywood tra
â?¡.According to the customers' requirements
Payment Terms T/T,L/C
Delivery Transport by Sea/Air/Express/Pickup

Application
We supply Threaded Fitting to a wide range of industries:
Chemical manufacturing process
Oil, gas and petroleum
Paper industry hydraulics and factory processes
Shipbuilding
Building services
Water industry
Nuclear industry
Biofuel manufacturing
Automative paint spray systems
Food manufacturing processing

Our Advantages:
* PRICE ADVANTAGE
Have our own factory, over 40 tons/monthly production capacity. Threaded Fittings price is more competitive than others.
* DELIVERY ADVANTAGE
The delivery date is short, 1-3 months production time, give more support for your whole sale & projects.
* EXCELLENT QUALITY
ISO9001 among the production line, guarantee the time as well as quality.

With 10 years export experiences, our thread fittings, ball valve, butt weld fitting and stainless steel flange has been welcomed in international markets

SIZE (Length) : 1/2"

Usage/Application: Plumbing

Material: Fully Brass

Surface Finish: Chrome Polish

A forged hex nipple full size is a type of threaded fastener that is made from a single piece of metal that has been forged into shape. The nipple has a hexagonal head on one end and a threaded shank on the other end. The nipple is used to connect two pipes or other components together.
Technical specification:
The following are the technical specifications of a forged hex nipple full size:
1. Size: 1/8 Inch to 2 Inch
2. Material: Carbon steel, Alloy Steel, Stainless steel, Duplex
3. Finish: The nipple is available in a variety of finishes, including hot-dipped galvanized, black oxide, and electroplated nickel.
4. Strength: The nipple is strong and durable, and can withstand a variety of stresses.
5. Thread: NPT, BSP, BSPT

Applications:
Forged hex nipples full size are used in a variety of applications, including:
1. Plumbing
2. HVAC
3. Machinery
4. Construction
5. Oil and gas
6. Marine

Advantages:
The advantages of using forged hex nipples full size include:
1. Strength and durability
2. Wide range of sizes and materials available
3. Variety of finishes available
4. Easy to install
5. Long service life

Overall, forged hex nipples full size are a versatile and reliable type of threaded fastener that is used in a variety of applications. They are strong, durable, and easy to install, making them a good choice for many projects.

A forged hex nipple reducing size is a type of threaded pipe fitting that is made by forging, a process that involves shaping metal by hammering or pressing it. It has a hexagonal head on one end and a threaded bore on the other end. The bore is smaller than the outside diameter of the nipple, which allows it to be used to reduce the size of a pipe.
Technical Specifications:

The following are the technical specifications of a forged hex nipple reducing size:
1. Size: 1/8 Inch to 2 Inch
2. Class: 3,000#, 6,000# Lbs.
3. Material: Carbon steel, Alloy Steel, Stainless steel, Duplex
4. Finish: The nipple is available in a variety of finishes, including hot-dipped galvanized, black oxide, and electroplated nickel.
5. Strength: The nipple is strong and durable, and can withstand a variety of stresses.
6. Thread: NPT, BSP, BSPT

Applications:
Forged hex nipple reducing sizes are used in a variety of applications, including:
1. Plumbing
2. HVAC (heating, ventilation, and air conditioning)
3. Machinery
4. Automotive
5. Oil and gas

Advantages:
The following are some of the advantages of using forged hex nipple reducing sizes:
1. They are strong and durable.
2. They can withstand high pressure and temperatures.
3. They are corrosion resistant.
4. They are easy to install.

Overall, forged hex nipple reducing sizes are a versatile and reliable type of pipe fitting that can be used in a variety of applications. They are strong, durable, and corrosion resistant, making them a good choice for demanding environments. However, they are also more expensive than other types of pipe fittings and may not be available in all sizes.

Elbows, bends, reducers, tees, sockolets, weldolets, union, hex nipple etc.
