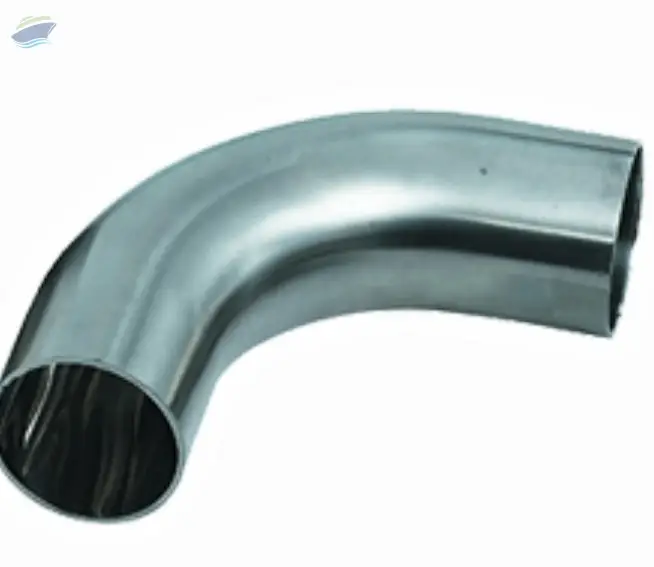

Long Radius Bends

Product : Long Radius Bend
Brand : Renaissance Pipe Fitting Inc.
Sizes : Refer the specification
Condition : New
Rating : 4.6, based on 23 reviews
price : Start from 10 USD

RFP India is a well-known exporter, manufacturer and supplier of Long Radius Bends Butt Weld Pipe Fittings worldwide in the steel market industry. The purpose of Radius Pipe Bends is to amend the direction and flow through 180 degree angle. Coming in two important forms of Bends short radius bend and long radius bend to which both of them are having a midpoint-to- midpoint length, along with double the indistinguishable 90 degree elbow. The most important application for these pipe fittings is in heater coils and heat exchangers. Long Radius Pipe Bends Butt Weld Pipe Fittings are manufactures with
dissimilar grades of standard ranges and meets its provisions through international and national standards. They are quite unproblematic to remove and install, and can be accessible to our customers in diverse technical specifications of sizes and threading as per necessity.
Standard : ANSI/ASME, MSS, JIS, DIN, BS etc

TYPE :
SEAMLESS / WELDED/ FABRICATED

RANGE :
2"NB TO 18"NB IN SCH: 20, 40, STD, 60, 80, XS, 100, 120, 140, 160, XXS available with NACE MR 01-75

FORM :
Long Radius Bend, Industrial Long Radius Bend, Piggable Bend, Induction Bend

Radius( R ) :
3D, 5D, 6D, 8D, 10D & 20D.

Stainless Steel Long Radius Bends :
Standard : ASTM / ASME A/SA 403 GR WP "S" "W" " WX"
Grade : 304, 304L, 304H, 309S, 309H, 310S, 310H, 316, 316TI, 316H, 316L, 316LN, 317, 317L, 321, 321H, 347, 347H, 904L

Duplex Steel Long Radius Bends :
Standard : ASTM / ASME SA 815
Grade : UNS NO.S 31803, S 32205

Aluminium Long Radius Bends :
Standard : ASTM / ASME SB241
Grade : 3003 H18 , 3003 H112, 6061 T6, 6063 T6, 6351 T5, 6351 T6
