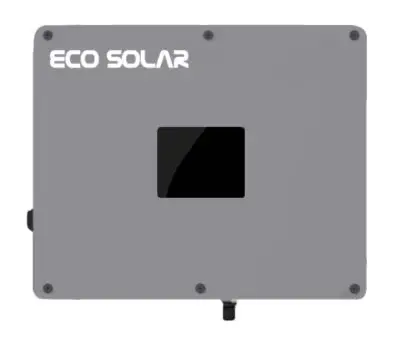

Pves 40/50Ktl



SUPERIOR PERFORMANCE

Maximum efficiency of 5%
Large string current, compatible with large PV modules

HIGH RELIABILITY

IP66 protection level for outdoor installation
DC/AC Type II SPD
Optional: AFCI, Night SVG, and integrated PID

INTELLIGENT MAINTENANCE

Power generating monitoring
Remote configuration and upgrade
Quick commissioning via mobile app
String level current detection(Optional)















Max. Efficiency

98.50%










European Efficiency
98.00%

97.90%









Input(PV)












Max. Input Voltage

1100V










Max. PV Configuration

150%










Rated Input Voltage

620V










Max. Input Current
40A+2*32A
40A+3*32A









Max.Short Circuit Current
50A+2*45A

50A+3*45A









Start Input Voltage

200V


















MPPT Operating Voltage Range Max. Number of PV Strings

180V-1000V











2/2/2002

2/2/2/2









No. of MPPTs
3

4









Output(Grid)












Rated AC Active Power
40,000W

50,000W









Max. AC Apparent Power
44,500VA

55,600VA









Max. AC Output Current
67.4A

84.2A









Rated AC Voltage

380V/400V/415V,3W+L+PE or 3W+PE










AC Voltage Ranged

320V-520V (Adjustable)










Rated Grid Frequency

50Hz / 60Hz










Grid Frequency Ranged

45Hz-55Hz / 55Hz-65Hz (Adjustable)










THDI

<3% (Rated Power)










DC Current Injection

<0.5%In










Power Factor

>0.99 Rated power (Adjustable 0.8 LD-0.8 LG)










Protection












DC Switch

Yes










Anti-lslanding Protection

Yes










AC Overcurrent Protection

Yes










AC Short Circuit Protection

Yes










DC Reverse Protection

Yes










Surge Arrester

DC Type II / AC Type II










Insulation Detection

Yes










Leakage Current Protection

Yes










General












Topology

Transformerless










IP Rating

IP66










Night Self Consumption

<5W(standard)










Cooling

Fan cooling










Operating Temperature Range

-25â??C -60â??C 0â??










Relative Humidity Range

100%










Max. Operating Altitude

4000m










Dimensions (W*H*D)

635mm*530mmâ??224mm










Weight
40 Kg

42 Kg









HMI & COM












Display

















Wireless & APP+LED, LCD (Optional)










Communication
RS485, Optional: WiFi / GPRS / LAN
