Sfex Ct Manteau For Fire In The Cable

SFEX CT Manteau, also called the Cable Tray Manteau, is very efficient in extinguishing the initial fire suppression with immediate responses in case of fire because when a micro capsule for fire extinguishing reacts to a certain temperature and flame, it automatically disperses extinguishing agents.
It\'s based on a cooling fire extinguishing method, shows an excellent characteristic of being able to extinguish a fire completely with an immediate response at the time of initial fire if you cover it over the electric power line.


SFEX Solution : SFEX CT Manteau / SFEX AP Tape
1. Horizontal Section Fire : Access Floor, Cable Pit, and Cable Tray
Installation and How It Works
1. Cover the SFEX CT Manteau.


2. Prevent the spread of fire with extinguishing/flame retardance properties


2. Vertical Section Fire
Installation and How It Works
1. Wind the SFEX AP Tape on the cable.


2. Prevent the spread of fire with extinguishing/flame spread prevention properties
Test Result : AP Tape


Test Item
Test Standard
Unit
Test Result


Flame test of vertically placed cables
The carbonization length should not exceed 2.5mm from the bottom edge of the burner
-
Do not exceed (carbonization length: 0.6m)

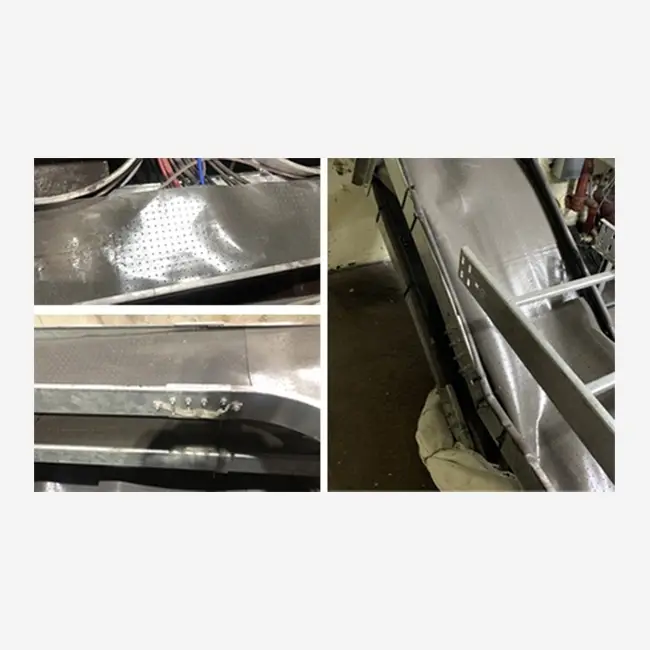

During installation, photograph after installation
*Test Information

Test Facility Standard : KS C IEC 60332-3-10 : 2003(Compliant)
Volume of nonmetallic material(L) per meter of test specimen : 1.5 (volume of nonmetallic material for finished cable, not including AP Tape)
Number of test pieces : 5
Number of tiers : 1
Number of burners : 1
Position of test piece : Spatial type
Flame application time (minutes) : 20
AP Tape installation method : AP Tape in 0.6/1 kV TFR-CV 4C 35 from the height of burner to the top 10cm gap between AP Tape and 20cm length of AP Tape
