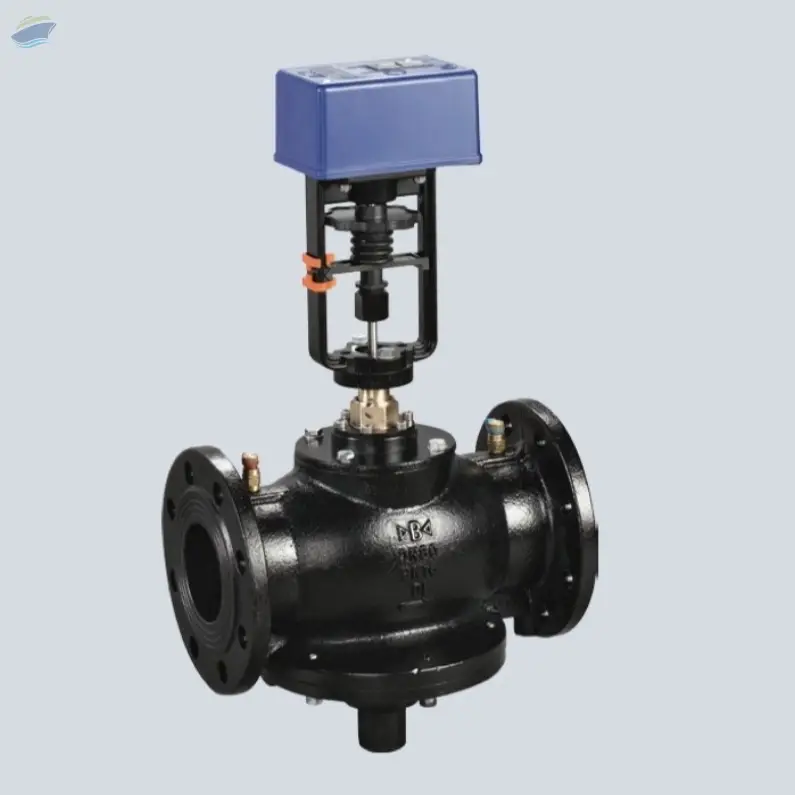

Tbfx Series Pressure Independence Control Vale

MOQ: 1 Sets
Origin: China
Sample Available
Sample Cost: Buyer
Mention destination port, expected quantity and required specifications in your inquiry.

Key Specifications

PriceNegotiable
MOQ1 Sets
PackagingWood Pallet, Wood Box, Iron Box
OriginChina
Sample CostBuyer

Product Description

Features and Benefits
Three function in one: Electric Adjustment + Pressure Independence + Static Balancing
A linear flow control can be realized
Uses the straight travel plug disc, lower torque
Adjustable Kvs, maximum flow can be controlled
Large range of differential pressure control and flow control precision.
Used in AHU system

Applicable Standards
Design standard: Q/IBP 1-0001-2014
Threaded Standard: EN 10226.1~10226.2 ISO228
Face to face standard: BS EN558-1

Technical Data
Nominal Diameter:DN65~DN150 (21 2"~6")
Nominal Pressure: PN16
Temperature Range: -5C~85C
Sealing test: 1.1PN
Shell test: 1.5PN
Suitable for: water
Voltage: AC24V
Power: DN65~DN100 4.2VA
DN125~DN150 10.6VA
Cut-off force: DN65~DN100 850N
DN125~DN150 2200N
Max stroke: DN65~DN100 20mm
DN125~DN150 30mm
Input signal: 0(2)~10V, 0(4)~20mA
Feedback signal: 0~10V
Protect level: IP54

Full Specifications

Product NameTbfx Series Pressure Independence Control Vale
BrandConex|Binninger
PackagingWood Pallet, Wood Box, Iron Box
PriceNegotiable
Minimum Order1 Sets
Sample CostBuyer
Country of OriginChina
