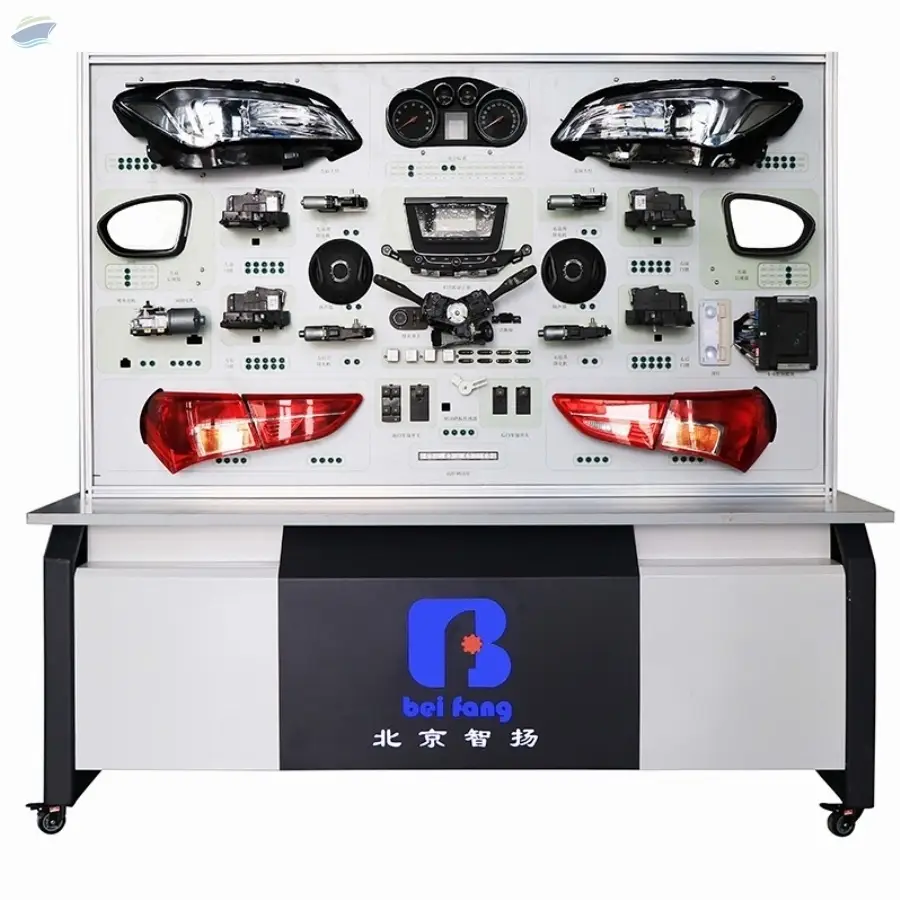

Automotive Electric Circuit Training System

Quick Details
Origin: Hebei, China
Brand Name: BJZY
Warranty: 1 year
Service: OEM customization
Category: Teaching
MOQ: 1 set
Packing: wooden box
Packaging And Delivery
wooden packaging
Delivery time: 15 to be negotiated
Product Description:
1) Light circuit practice module
- Made by LED light system (Head light, Turn signal, Taillight)
- Experiment panel should be carved in AL coating panel and printed
- Consist of a headlight, a multifunction switches, relays,connection terminals
2) Side Mirror folding practice module
- Arrangement of parts of Side Mirror folding
- Consist of a folding set, a connect terminal, side mirror folding switch
3) Door/ Window circuit practicemodule
- Arrangement of parts of Door/Window and checking theory and operation by composing
actual window circuit
-Consist of door actuator, window motor connect terminal, side mirror door switch
4) Horncircuit practice module
- Test of horn system circuit
- Theory education, circuit completion and test of horn system
5) Ignition practice module
- Test of Ignition practice module
- Consist of ignition plug, Gap measuring device, air intake,Vmeasuring Device
6) Injection practice module
- Test of Injection practice
- Consist of 4 injector, delivery pipe, injector Voltage Measuring Device
7) Multi function input switch module
- Test of Multi channel input switch- Consist of multi function switch, key switch, emergency switch, connector terminal
