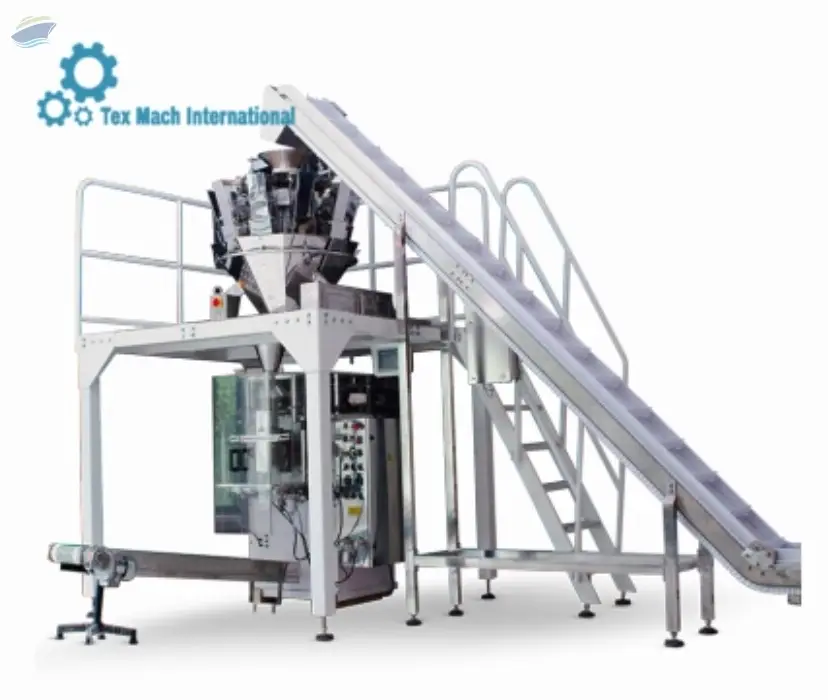

Tmi 80.6.3.200406 - Solid Packaging Machine

Salient Features
Special multi head weigher control with load cell & stepper motor
Operator friendly PLC controller with a user friendly GUI
Pouch style options Center seal pouch with increased panel area
Advanced Constant Heat sealing System
Specially designed film roll unwinding mechanism for smooth bag pulling
Operation with brake system.
Independent drives for sealing ,Feeding & film feed operations for optimum performance
Less floor space requirement for machine installation.
Equipped with variable speed drive for flexibility to offer adjustable output for the machine
Bag Unwinding by Lanatex belt drive-through servo motors and control cards
Flexible vertical seal jaw positioning to offer range of variable pack with offering quick change-over facility
Suitable for different range of packaging film i.e PE film with or with out Laminate
Special safety card to control current for protection electrical / electronics equipment
Adjustable bag length by PLC controlled via servo motors and control cards
Multi head weighing system for accurate dosing.
Independent temperature controller for both seal
Jaw's security devise to protect the operator of a machine
Electric Panel IP-54 Protection Standard.


Machine Packaging Capabilities
Potato Chips, Rice, Macaroni, Beans, Snacks Pasta, Dry Fruits, Vermicelli, Candies & Confectionery products as well as all kinds of lightweight of products.

Technical Specifications
Output Quantity:
15 g - 1000 g
30 - 85 Packs/min
Filler Accuracy: ± 5 gm to 5 g
Pack / Quantity Range:
Min. Bag size (W x L) approx: 120 mm x 150 mm
Max. Bag size (W x L) approx: 225 mm x 350 mm
Packaging Material: Co-extruded 3 or 5 Layer PE Based or Laminated, Metalize, Aluminum Foil 40 to 120 microns
Film Reel: Core Diameter 76 mm & Reel Diameter 300 mm max
Electrical Requirement:
Input Supply: 220 or 380 V AC, 50 Hz, 3 ph + N + G
Connected Load: 3.5 KVA
Peak Power Rating: 3 KW
Air Requirement:
Air Pressure: 6 bar constant dry air
Air consumption: 800 Ltr/min
Machine Dimensions along with conveyor (W x D x H) approx.: 1110 mm x 1700 mm x 2438 mm
Weight: 700 kgs (Net)

Optional Accessories
Customised pack Size
Photomark Registration Unit for Panel Printed Films
Automatic Pouch Counting System
Inert Gas Flushing System
Product discharge conveyor
Date Coding System
Extra Pneumatic Magazine Shaft
Optional Film End Sensor
UV sterilisation of packaging film
Special impulse sealing jaw
Bucket elevator
Platform
English Folding System
Extra Conformer for different sizes
Air release system
Linear weigher
