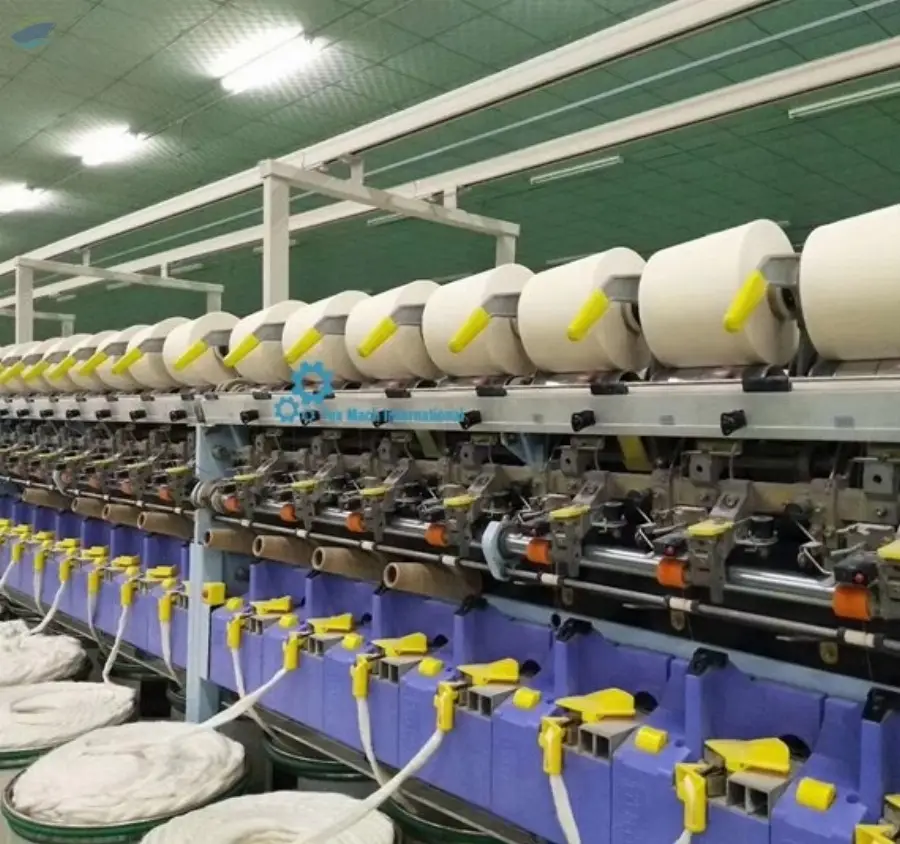

Tmi 60.12.4.200413 - Rotor Spinning Machine

TMI 12.4.200413
Product Description
Rotor spinning machine is a kind of new-type open end spinning machine with some features such as high speed, high efficiency, automatic exhausting impurities. It can spin directly various short fibers, 40mm cut fibers or 60mm cut viscose into single fine yarn from combed sliver.
This is a double-side-type spinning machine based on modularised design. It applies many new technologies such as air suction spin box, semi-automatic piecing-in, closed loop control etc. Max. rotor speed can reach 110000 rpm.
Thanks to application of numerous new technologies, it holds spinning and winding quality close to full automatic rotor spinning machine, and then shows better price-performance ratio.
Technical Specifications
The minimum and max. tex: 120-150 (5s-36s)
Suitable tex: 83.2-28 (7s-21s)
Cotton to be fed: 2500-5000
Rotor speed (r/min): 100000
Yarn guiding speed m/min: 40-160
Splitting roll seppd: 5500-9000
Twisting degree: 220-2250
Pneumatic moto purging volume (m3/h): 5500
Suitable fiber length (mm): less than 40
Operating height (mm): 1560
Yarn feeding bobbin: outer dia: 400x914
Head space (mm): 230
Rotor diameter (mm): 400 or 40
Head number: 192 or 240
Bobbin specs (outer diameter*height)(mm): 54x170
Take-up specs (diameter*height): 300*150
Loaded weight (kg): 3
Crossing angle: 300,330,390,420
Yarn breaking (Filament per 1000 filament per hour): less than =50
Purification efficiency: 60-80
Pressure in rotor intra cavity: greater than = 5
Mechanical stretching times: 32-220
Tension stretching times: 0.93-1.06
Total power: 64kw
