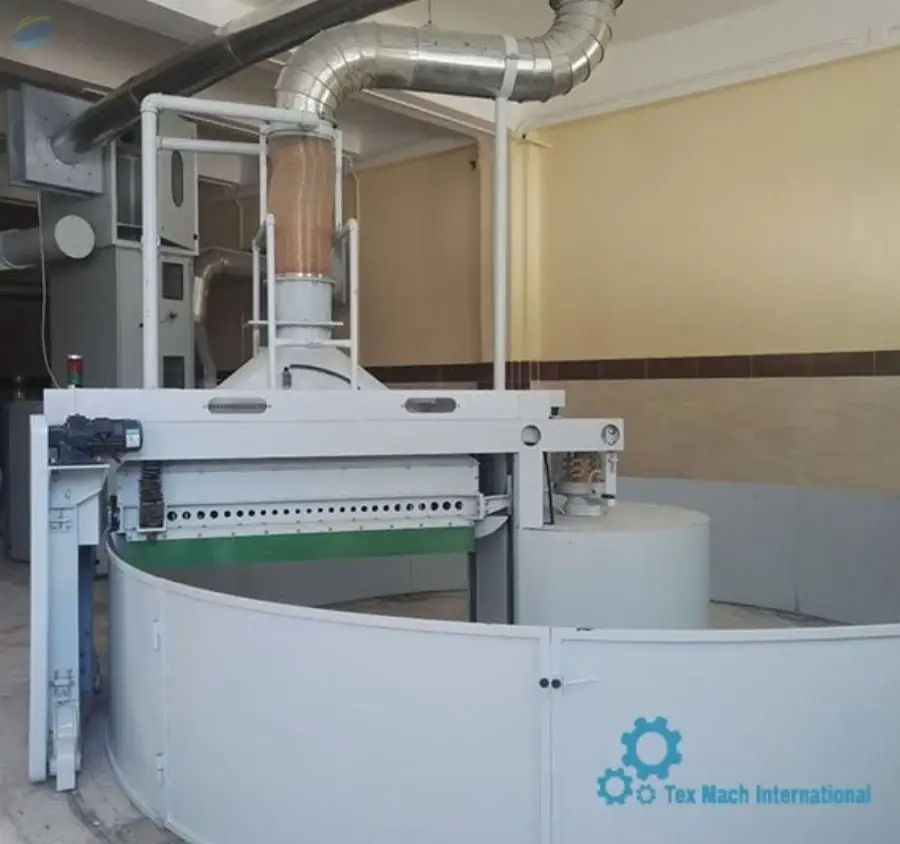

Tmi 60.1.1.200402 - Disk Bale Plucker

TMI 60.1.1.200402 - DISK BALE PLUCKER Spinning Machinery

Product Description
Disk bale plucker is suitable for the plucking of all classes of raw cotton, cotton chemical fiber and middle-long fiber shorter than 76mm. Itâ??s the first procedure of the machine and consists of pulley, central axis, expansion tube and ground rail, etc., and this model can be used in double.

For a large number of raw material varieties with great differences, this model helps improve the number of mixed bale and reduces the mixing units & working quality.

Disk plucker is an important machine in blowing-carding line. It is applicable for kinds of raw cotton. Cotton content chemical fiber, middle and long chemical fiber, generally two set of plucker are put into production in parallel. Plucking beater go down interval and rotate with carriage to pluck cotton sequence. Cotton plucked is transported to the next machine via duct.

Disk plucker adopts a saw-toothed beaters ,which are divided into 3 groups,and fixed from inside. From inside to outside according to the tooth setting from thin to thick so as to get fibers minor and uniform,thus itâ??s advantageous to the blending and cleaning of next process.
â??
Technical Specifications
Production (kg/h): 800 - 1000 kg
Loading Capacity / Cotton Piling Weight in kg: 2000 Kg Each (Around 2 sets)
Outer Wall Diameter in mm: 4760 mm
Inner Wall Diameter in mm: 1300 mm
Speed of Carriage in r/min: 1.6 - 2.2 r/min
Beater Rotating Speed in r/min: 740 r/min
Knife out of Rib / Blade extension from grid in mm: 2.5 - 7.5 mm
Crab Slewing Speed in r/min: 0.59 - 2.96 r/min
Ground Rail External Diameter in mm: 5192 mm
Total Height in mm: 4155 mm
General Power in Kw: 4.17 Kw
Net weight in Kg: Around 1600 Kg
