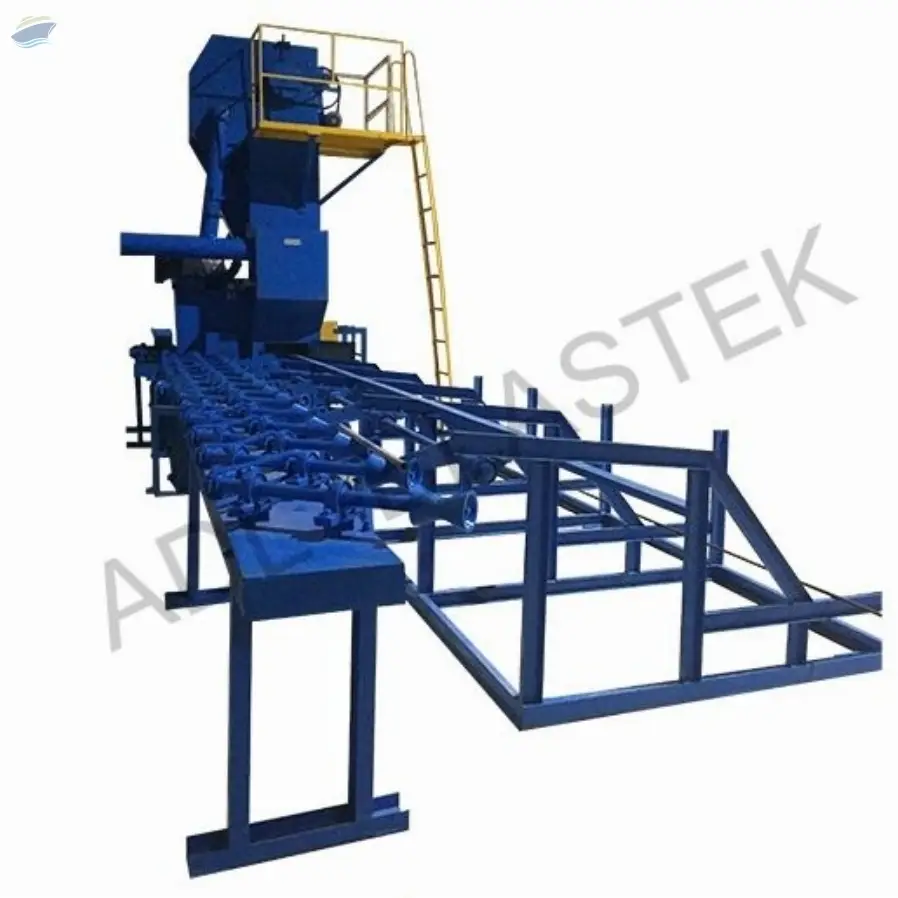

Diabola Conveyor Type Shot Blasting Machine

Product Details:

Product Type Other
Technology Other
Power Source Electricity
Operating Type Automatic
Power 420 Volt (v)
Pressure 6-7 Bar
Surface Treatment Painted
Supply Ability : 7-10 Unit Per Month

Price And Quantity:
Minimum Order Quantity 1 Unit
Price Range 1200000.00 - 1500000.00 INR/Unit

Product Specifications:
Power Source Electricity
Surface Treatment Painted
Product Type Other
Technology Other
Power 420 Volt (v)
Warranty: All our machines are warranted for 12 months from the date of commissioning or 15 months from the date of dispatch whichever is earlier against all manufacturing defects. However this warranty not covers parts consumed at normal wear and tear during operation like rubber goods & parts in continuous contact of abrasive media and also any damages due to misuse or improper handling of the machine at customer premises. The warranty will lapse if customer uses spurious spare parts purchased from any other buyer on the machine and fail to operate and maintain the machine in accordance with the instructions.
Pressure 6-7 Bar
Color Dark Blue
Usage/Applications Casting, Forging, Sheet Metal
Operating Type Automatic


Product Description:
The diabola conveyor shotblasting machine is best suitable for the shot blasting of round BARS. Itconsists of inlet and outlet side diabola conveyors as material handling systems. The components to be blasted are placed on inlet side of the rollerconveyor, from where it travels forward and enters into the inlet tunnel. Afterpassing through the inlet tunnel components enters into the blast zone which consists of 1 no. of Blast Wheel. This Blast wheel unit is strategicallyplaced around the Blast cabinet. The arrangement of the blast wheel ensures optimum blast cleaning and maximum utilization of the abrasive energy. Blast wheels fires the abrasive at high velocity onthe forward moving & rotating components & blast cleans them thoroughly. Blasted material moves forward and enters into the outlet tunnel.

The spent abrasive from blasting operation after passing through the perforated floor plates will get collected into thecabinet's bottom storage hopper. From where it is transferred to the buck etelevator, which elevate the abrasive vertically and discharges the same into a media separation unit where dust and fine abrasives are cleaned ensuring that onlyclean abrasive will re-circulate to the blast wheel units for effective and better cleaning. A Dust collection system is provided with the machine whichwill continuously remove the dust and fine particles, thus keeping the inside of the machine and the nearby environment dust & pollution free.
