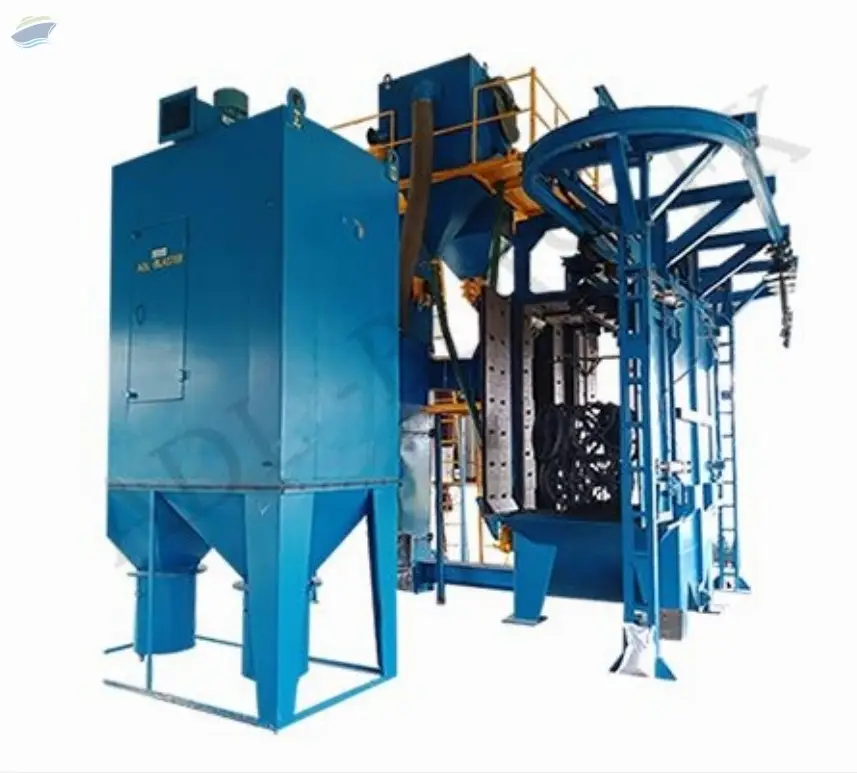

Close Loop Hanger Shot Blasting Machine

Product Details:
Product Type Other
Technology Other
Power Source Electricity
Operating Type Automatic
Power 420 Volt (v)
Pressure 6-7 Bar
Surface Treatment Painted
Supply Ability : 7-10 , , Unit Per Month

Price And Quantity:
Minimum Order Quantity 1 , , Unit
Price Range 1200000.00 - 1500000.00 INR/Unit
Color Dark Blue
Warranty: All our machines are warranted for 12 months from the date of commissioning or 15 months from the date of dispatch whichever is earlier against all manufacturing defects. However this warranty not covers parts consumed at normal wear and tear during operation like rubber goods & parts in continuous contact of abrasive media and also any damages due to misuse or improper handling of the machine at customer premises. The warranty will lapse if customer uses spurious spare parts purchased from any other buyer on the machine and fail to operate and maintain the machine in accordance with the instructions.
Pressure 6-7 Bar
Technology Other
Operating Type Automatic
Power Source Electricity
Product Type Other
Surface Treatment Painted
Power 420 Volt (v)
Usage/Applications Casting, Forging, Sheet Metal

Product Description
Hanger type shot blast machines designed and built as fully integrated blast cleaning systems to handle large/small or more fragile castings than barrel/table type machines. They provide a cost effective solution for batch cleaning.

Hanger type Machine consists of horizontal door with a rotating hanger type work/job handling system. This hanger is directly mounted on the door of the machine and it rotates on its own axis, drive unit of this hanger is provided outside the door. This hanger swings out as the door is opened, making the full area easily approachable for loading and unloading of the components. For loading the components, door of the machine is opened manually & components to be blasted are hanged one by one on to the door hanger and the door of the machine is closed.

After this two nos of Blast wheel units which are strategically placed on the Blast cabinet, is started. Blast wheels will fire the abrasive at high velocity on the components hanged on the hangers and rotating in clockwise and Anti-clockwise direction and blast cleans them thoroughly. Bi-directional rotational mechanism of hanger ensures that each and every portion of the component will get exposed to the blast stream for through cleaning. The arrangement of the blast wheel ensures optimum blast cleaning and maximum utilization of the abrasive energy. After the required blasting cycle, blast wheel unit shuts off and door of the machine is opened manually for unloading of the components.
