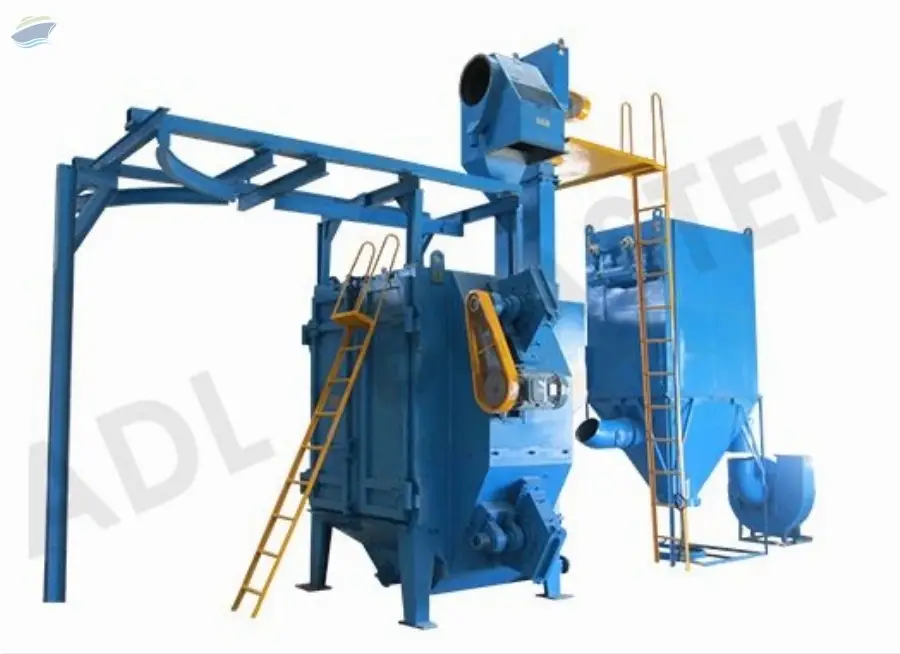

Y-Conveyor Hanger Shot Blasting Machine

Product Details:
Product Typ e Other
Technology Other
Power Source Electricity
Operating Type Automatic
Power 420 Volt (v)
Pressure 6-7 Bar
Surface Treatment Painted
Supply Ability : 7-10 , , Unit Per Month

Price And Quantity:
Price Range 1200000.00 - 1500000.00 INR/Unit
Minimum Order Quantity 1 , , Unit

Product Specifications:
Power 420 Volt (v)
Power Source Electricity
Operating Type Automatic
Product Type Other

Warranty: All our machines are warranted for 12 months from the date of commissioning or 15 months from the date of dispatch whichever is earlier against all manufacturing defects. However this warranty not covers parts consumed at normal wear and tear during operation like rubber goods & parts in continuous contact of abrasive media and also any damages due to misuse or improper handling of the machine at customer premises. The warranty will lapse if customer uses spurious spare parts purchased from any other buyer on the machine and fail to operate and maintain the machine in accordance with the instructions.
Pressure 6-7 Bar
Technology Other
Color Dark Blue
Surface Treatment Painted
Usage/Applications Casting, Forging, Sheet Metal

Product Description:

Hanger type Machine consists of horizontal door with a rotating hanger type work/job handlingsystem. This hanger is directly mounted on the door of the machine and itrotates on its own axis, drive unit of this hanger is provided outside thedoor. This hanger swings out as the door is opened, making the full area easilyapproachable for loading and unloading of the components. For loading the components,door of the machine is opened manually & components to be blasted arehanged one by one on to the door hanger and the door of the machine is closed.
After this two nos ofBlast wheel units which are strategically placed on the Blast cabinet, is started.Blast wheels will fire the abrasive at high velocity on the components hangedon the hangers and rotating in clockwise and Anti-clockwise direction and blastcleans them thoroughly. Bi-directional rotational mechanism of hanger ensuresthat each and every portion of the component will get exposed to the blaststream for through cleaning. The arrangement of the blast wheel ensures optimumblast cleaning and maximum utilisation of the abrasive energy. After the required blastingcycle, blast wheel unit shuts off and door of the machine is opened manuallyfor unloading of the components.
