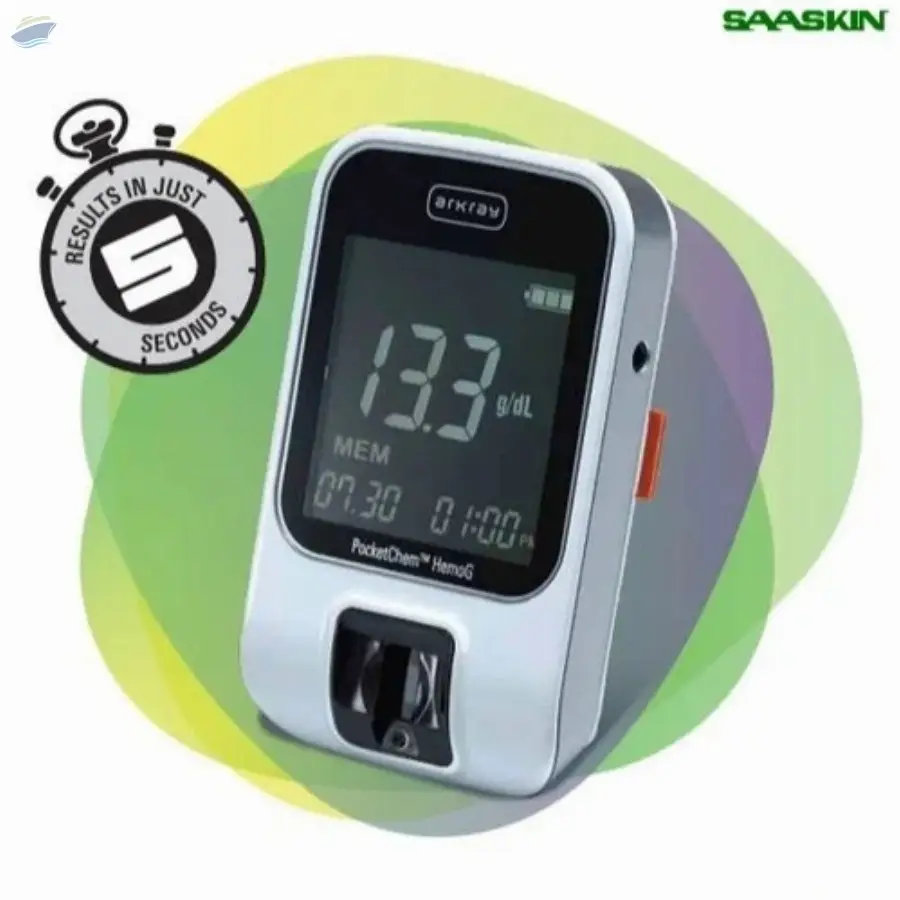

Pocketchem Hemog

Product Details:

Brand arkray
Model Name/Number Hemo G
Battery Operation 2 X AAA 1.5V alkaline manganese batteries
Display LCD
Memory 500 Test Results
Pocketchem HemoGFeatures:
Compact handheld Hb testing device with calculated HCT
Just 7µl Blood required (Venous / Whole blood)
Special Micropipette to collect the right volume of blood sample
Results calibrated to cell counter
Easy 4 step process & result in just 5 seconds
Technical Specification:
POCKETCHEM HemoG meter
Battery operation 2 X AAA 1.5V alkaline manganese batteries
Number of measurements More than 1,000 measurements(with new batteries)
Method of measurement Optical method of the reflectance at 525 nm for determination of haemoglobin
Display LCD
Operation buttons 3 button (Power ON/OFF, Up and Down buttons)
Memory 500 test results

POCKETCHEM HemoG Strips
Measurementrange Hb: 5 ~25 g/dL
Repeatability of strip 1) 5.0 ~ 10.0 g/dL : Under SD ± 0.5 g/dL
2) 10.1 ~ 25.0 g/dL : Under CV 3%
Reference method HiCN and Met-Hb method
Type of sample Fresh capillary blood for self-testing & professional
Venous blood samples must be taken by a healthcare professional
Venous blood sample is used EDTA or Heparin anticoagulant tube
Blood sample volume 7 blood sample
Measurement time 5 seconds
Storage temperature 8~30
Measurement temperature 5~45 (41 - 113 )
Humidity: 10- 90 %RH
