Coda

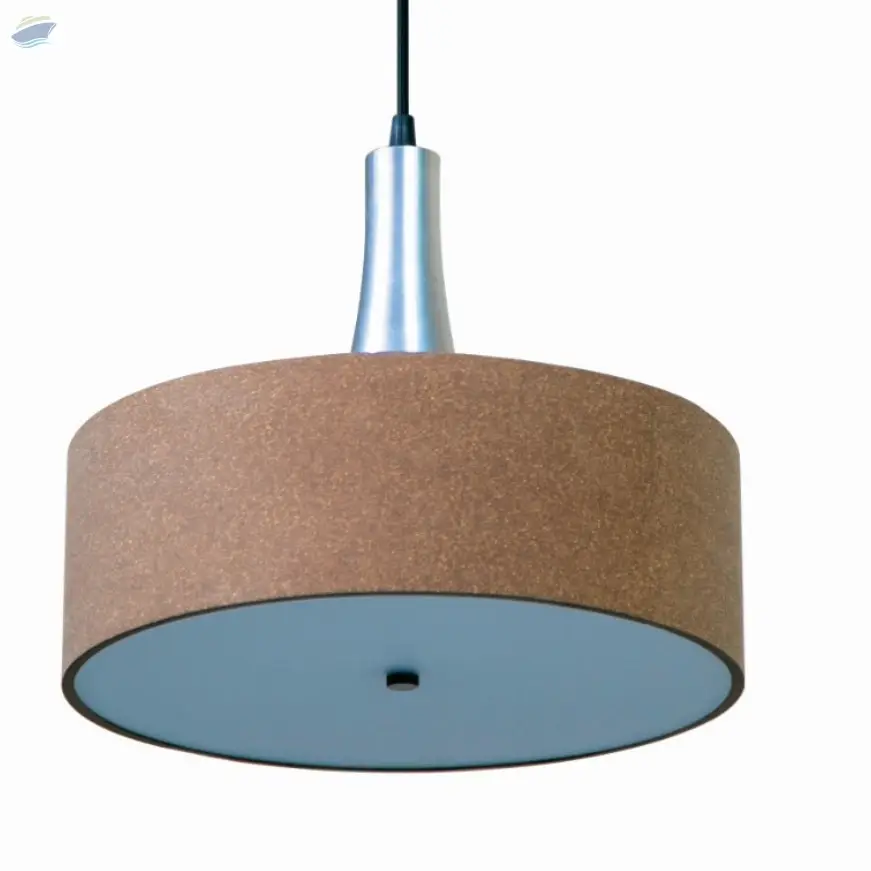

Coda is a suspended luminaire composed of cork housing attached to a top metal cone with PMMA diffuser mounted with the help of a pin. Available in sizes of 300mm, 450mm and 600mm in diameter. The fixture is suspended directly to the ceiling using driver mounted canopy cup and cable.

Electrical
Input Voltage

180 - 280 AC 50Hz

Driver Type

Constant Current Driver

Control

Switch / DALI / Analog

Connection

Plug-in Type Pre-wired

General Characteristics
Appliance Class

Class 2

Ingress Protection

IP40

Photobiological Safety

RG 0 - No Risk

Ambient Temperature

0 to +50 C

Luminaire
Housing Material

Cork

Environment

Indoor

Mounting

Pendant

Light Distribution

Direct

Body Finish

Cork Finish

Optics

PMMA Diffuser Diffuser pin

Driver Mount

Inside Canopy Cup

Thermal Management

Passive Cooling

Light Source
LED

Medium Power LED / Bulb

Binning

3 Step MacAdam

Luminous Efficacy

95 Lm/W

Color Temperature

2700K / 3000K / 4000K / 5700K / 6500K

CRI

80 (Standard) 90 (Optional) Tunable LED (Optional)

UGR

< 19

LED Life

> 50,000 hours

Size And Wattage - 300-15W
450-20W
600-30W
