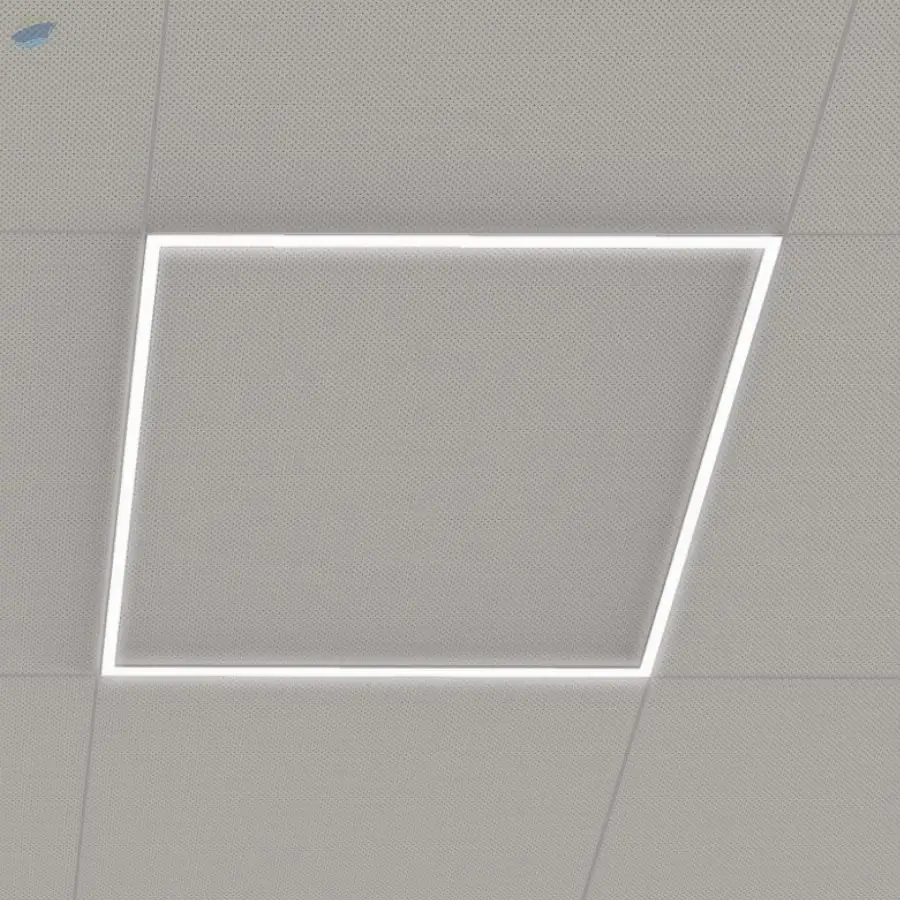

Stripe 2

Stripe is a recessed luminaire used for grid ceiling lighting application. The body is made of CRCA material with white powder coating. The top is usually stainless steel finish. PMMA difuser is used for spotless and glare free light distribution.

Electrical
Input Voltage : 180 - 280 AC 50Hz

Driver Type : Constant Current Driver

Control : Switch / DALI / Analog

Connection : Plug-in Type Pre-wired

General Characteristics
Appliance Class : Class 2

Ingress Protection : IP40

Photobiological Safety : RG 0 - No Risk

Ambient Temperature : 0 to +50 C

Luminaire : Housing Material

CRCA - Powder Coated : Environment

Indoor : Mounting

Recessed : Light Distribution

Direct : Body Finish

Stainless Steel top : Optics

Diffused : Driver Mount

Integrated : Thermal Management

Passive Cooling : Light Source

LED : Medium Power LED / LED Bulb

Binning : 3 Step MacAdam

Luminous Efficacy : 95 Lm/W

Color Temperature : 2700K / 3000K / 4000K / 5700K / 6500K

CRI : 80 (Standard) 90 (Optional) Tunable LED (Optional)

UGR : < 19

LED Life : > 50,000 hours

Size And Wattage - 596X596-20W
