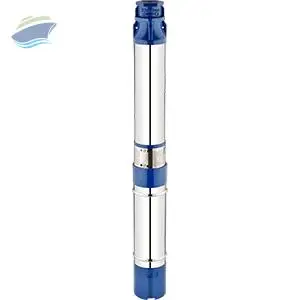

V4 Oil Filled Submersible Pumpset
MATERIAL OF CONSTRUCTION: Shaft : S.S. 420 / S.S. 410, Motor Body : Stainless Steel, Impeller : Glass Filled Noryl, Casting Parts : Graded Casting, Good Brand/Quality Roller Bearing, Graded Oil
TECHNICAL DETAILS: Head Range : Up To 140 mtrs, Discharge Range : Up To 180 lpm, Delivery : 25 mm / 32 mm, Power Rating : 0.5 H.P. TO 2 H.P., Voltage Range : 120 V TO 240 V (3-Phase).
SALIENT FEATURES:
Easy To Install, Highly Efficient Motor & Pump, Law Power Consumption, Specially Design For Wide Voltage Range, Corrosion Resistance Stainless Steel Motor & Pump Body, Use Graded Varnish To Reduce Corrosion In Stator, Rotors Are Dynamically Balanced With More Than 2850 rpm To Reduce Vibration, Long Life And Negligible Maintenance Due To High Precision Work, Rotor Are Painted With Special Epoxy Paint For Prevent Corrosion Effect For Long Time, Noiseless & vibration free motors, All Parts Machined On CNC Machine Only
V4 Slim Submersible Pumpset MATERIAL OF CONSTRUCTION: Shaft : S.S. 420 / S.S. 410, Motor Body : Stainless Steel, Impeller : Glass Filled Noryl, Casting Parts : Graded Casting, Thrust Bearing : Carbon With Stainless Steel. TECHNICAL DETAILS: Head Range : Up To 240 mtrs, Discharge Range : Up To 95 lpm, Delivery : 25 mm / 32 mm, Power Rating : 2 H.P. TO 3 H.P., Voltage Range : 180 V TO 240 V (1-Phase). SALIENT FEATURES: Easy To Install, Highly Efficient Motor & Pump, Law Power Consumption, Specially Design For Wide Voltage Range, Corrosion Resistance Stainless Steel Motor & Pump Body, Use Graded Varnish To Reduce Corrosion In Stator, Rotors Are Dynamically Balanced With More Than 2850 rpm To Reduce Vibration, Long Life And Negligible Maintenance Due To High Precision Work, Rotor Are Painted With Special Epoxy Paint For Prevent Corrosion Effect For Long Time, Noiseless & vibration free motors, All Parts Machined On CNC Machine Only
V4 Borewell Submersible Pumpset Falcon Premium 100 mm (4) Borewell Submersible pump is firmly coupled to a submersible electric motor and Operates by being submerged beneath the surface of the water. The optimal design of impeller and diffuser enables the best Possible hydraulic efficiency. Built-in check valve prevents back flow and reduces the risk of water hammering. All Vital components of these pumps are made up of corrosive resistance thermoplastic and the shaft is of SS 410. Pump Liquids - Clean - Thin - Non-Aggressive - Non-Explosive - Clear - Cold - Fresh water - Without abrasives - Solid particles. Salient Features - Motor portion covered with corrosive resistance Stainless steel J4 shell - More durability and hygiene - High operating efficiency - Specially designed thrust bearing to withstand high axial thrust load - Extremely hardwearing water lubricated bearing - Thread type motor construction ensures service feasibility - Specially designed Deep Drawn type pump ensures perfect alignment and Thereby increases the life of the pump set - Designed for wide voltage operation - Best alternative for JET & Compressor pump set - Additional intermediate bearing in higher stage pumps. Specification Power Range : 0.37 kW to 4.4 kW (0.50 HP to 6.0 HP) - Version : Single Phase 160V to 230V, Three Phase 350 to 415V, 50Hz AC Supply. Single Phase available in 0.5 HP to 5.0 HP Three Phase available in 1.0 HP to 6.0 HP - Speed : 2880 RPM - Head Range : 10 Mtr. To 340 Mtr. - Discharge Range : 450 LPM to 12 LPM - Outlet Size in Inch : 1.0 , 1.25, 1.5 & 2.0 - Degree of Protection : IP 58 - Direction of Rotation Minimum Cooling : Counter clockwise from driving end -1ph: Electrically Reversible -3ph - Thrust Load : 0.37 kW â?? 0.75 kW- 650 lbs, 1.1 kW -1.5 kW -1000 lbs, 2.2kW, 7.5 kW -1500 lbs. - Flow Along the Motor : 0.15 m/sec. - Type of Duty : S1 (Continuous) - Method of Starting : 1ph-Capacitor Start Capacitor Run (CSCR): 3ph Direct Online (D.O.L) - Maximum Starts Per Hour : 20 Times
