25Mm-150Mm High Carbon Grinding Steel Ball

Are you looking for the new manufacturer of High Carbon Grinding Media Ball for concentrator mines for concerntrator? Which one will you choose?

Please take some time to get to know our products and our company.

1"-6" High Carbon Grinding Media Ball for Concentrator Mines
Our factory manufacture and export Forged Steel Grinding Ball for ball mill as follows:
1.Feature:
The forged steel grinding ball is excellent in surface quality, toughness, and resistance to impact and abrasion. It won't crack and lose circularity easily.
1) In general, forged grinding steel ball has high hardness: Surface hardness to 55-67 HRC, volume hardness of 56-64 HRC
2) impact toughness high: Impact toughness more than 12 J / cm2.
3) broken rate is low: Peel fragmentation resistance property of over 20000 times. The actual breakage rate not greater than 1% and close to 0.

1"-6" High Carbon Grinding Media Ball for Concentrator Mines

2. Specifications:
1) Diameters: Dia. 20 - 150mm(1"-6")
2) Hardness: HRC 55-65
3) Chemical elements(%):


Nominal Diameter(mm) Dimensional Tolerance(mm) Roundness %
20 �±2 6
25 �±2 6
30 �±2 5
35 �±2 5
40 �±2 5
50 +3,-1 4
60 +3,-1 4
70 +3,-1 4
75 +3,-1 4
80 +3,-1 4
90 +4,-2 4
100 +4,-2 4
120 +4,-2 4
125 +4,-2 4
130 +4,-2 4
140 +4,-2 4
150 +4,-2 4

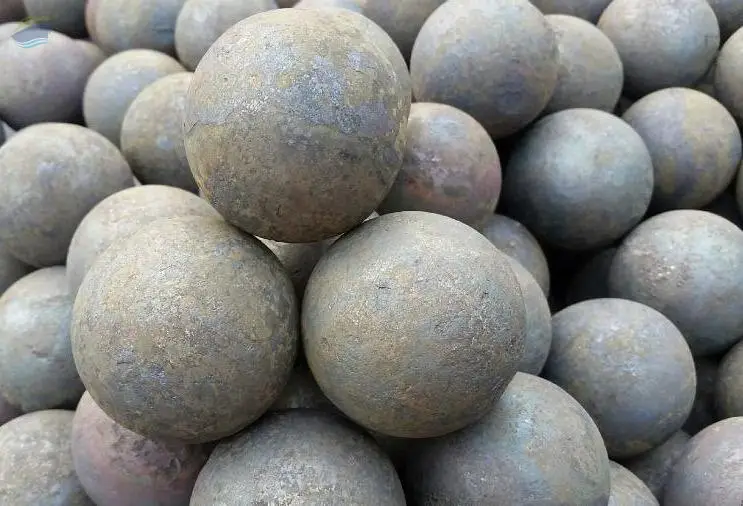

3.Picture show
4. Packing Instruction:
Barrel with wooden pallet: Steel Drum or Steel Barrel
Barrel size(cm): 89 58 (Volume: 800kgs N. G. Avaliable)
Pallet size(cm): 168 59 13
Two Barrel tie on the wooden pallet, steel tape for bundle
Strong Nylon Bag:
Avalible Bag: 50kgs; 100kgs; 1000kgs
