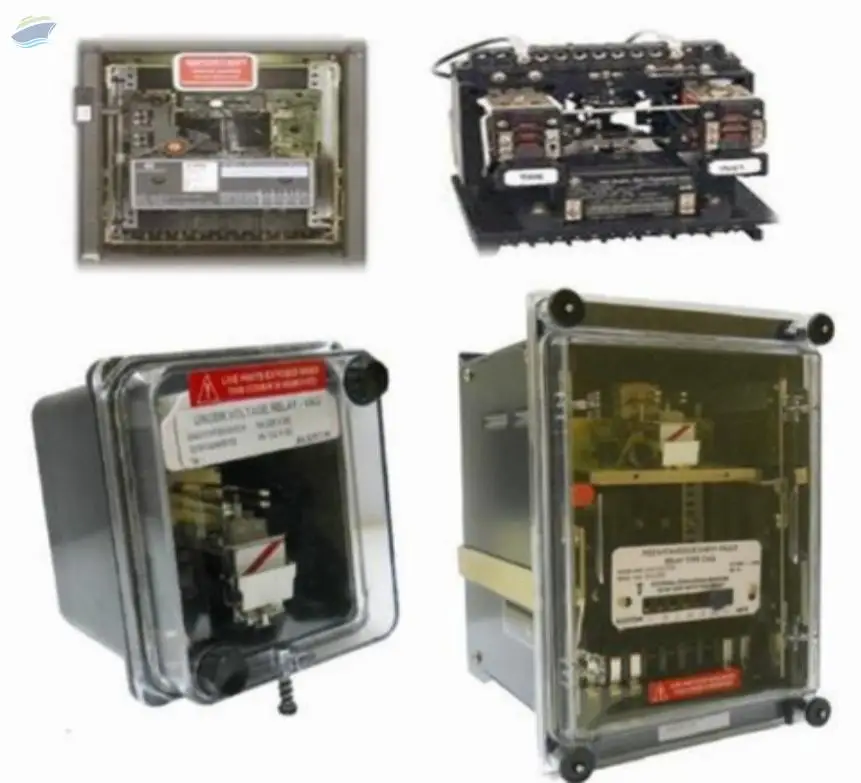

Alstom Gbcdd21pf9058bch
Self-powered Dir. Inverse Time O/c or E/
Technical Specification
Relay Model Cdd21pf9058bch
Cdd21
Case Size 1-1/2d Vert. 10t
Application E/f
C.t. Secondary 1 Amp Ct.
E/f Setting 0.2 - 0.8 Amps
Burden / D.m.t 3va / 3 Secs
Aux.voltage 100 - 250 V Dc
Contacts 2 N/o S/r
Flag Yes
Frequency 50 Hz
Mounting Flush
Mta Phase-char Angle 45 Degrees
V.t/p.t Secondary 63 / 190 V Ac
Tap Std
Name Plate-1 Rfg9126-039
Outline Drawing Mfj013
Wiring Diagram Mpdz801-10-1
ALSTOM GBCDD21PF056SACH SELF-POWERED DIR. INVERSE TIME O/C OR E/ Technical Specifications Model No : CDD21PF056SA(M) CDD21(SELF-POWERED) APPLICATION - O/C BURDEN - 3VA C.T. SECONDARY - 1 AMP CT. CASE SIZE - 1-1/2D VERT. 10T CONTACTS (S/R OR H/R) - 2 N/O S/R D.M.T - 1.3 SEC E/F OR U/V SETTING - NOT APPLICABLE FLAG - YES FREQUENCY - 50 HZ MOUNTING - FLUSH MTA PHASE-CHAR ANGLE - 45 DEGREES O/C OR O/V SETTING - 50 - 200% V.T/P.T SECONDARY - 110V A.C(O/C) External Resistor Name Plate RFG9125-011 Outline Diagram MFJ013 Wiring Diagram MPDZ801.23
ALSTOM GBCDD21PF061SBCH SELF-POWERED DIR.INV.TIMEO/C ORE/F RELAY Technical Specifications Model No : CDD21PF061SB(M) CDD21(SELF-POWERED) APPLICATION - E/F BURDEN - 3VA C.T. SECONDARY - 1 AMP CT. CASE SIZE - 1-1/2D VERT. 10T CONTACTS (S/R OR H/R) - 2 N/O S/R D.M.T - 1.3 SEC E/F OR U/V SETTING - 10 - 40% E/F FLAG - YES FREQUENCY - 50 HZ MOUNTING - FLUSH MTA PHASE-CHAR ANGLE - 45 DEGREES O/C OR O/V SETTING - NOT APPLICABLE V.T/P.T SECONDARY - 63.5 TO 190V A.C(E/F) Name Plate RFG9125-011 Outline Diagram MFJ013 Wiring Diagram MPDZ801.23
ALSTOM GBCDD21PF9054BCH SELF-POWERED DIR. INVERSE TIME O/C OR E/ Technical specification Relay model no CDD21PF9054BCH Relay type CDD 21 Case size 1-1/2D Vert.10T Application E/F Current setting 0.5 - 2.0 amps Aux.current or voltage 100 - 250V dc Burden 3 VA C.T.Secondary 5 amps Contacts (S/R OR H/R) 2 N/O S/R D.M.T 3 secs Taps Std Flag Yes Mounting Flush Frequency 50 Hz MTA Phase-char angle 60 Deg V.T/P.T Secondary 63.5V ac Name plate RFG9126-042 Outline drawing MFJ 013 Wiring diagram MPDZ 801-10-1
Alstom Gbcdd21pf9056ach Self-powered Dir. Inverse Time O/c or E/ Technical Specification Relay Model Cdd21pf9056ach Cdd21 Application O/c Aux. Current or Voltage 100 - 250 V Dc Burden 3va C.t. Secondary 1 Amp Ct. Case Size 1-1/2d Vert. 10t Contacts (S/r or H/r) 2 N/o S/r D.m.t 3 Sec. E/f or U/v Setting Not Applicable Flag Yes Frequency 50 Hz Mounting Flush Mta Phase-char Angle 45 Degrees O/c or O/v Setting 50 - 200% V.t/p.t Secondary 110v Ac Name Plate-1 Rfg9126-017 Outline Drawing Mfj013 Wiring Diagram Mpdz801-10-1
ALSTOM GBCDG11AF001SACH SELF-POWERED INVERSE TIME O/C OR E/F REL Technical Specifications Model No CDG11AF001SACH CDG11 APPLICATION - O/C BURDEN / D.M.T - 3VA / 3 SECS. C.T. SECONDARY - 5 AMP C.T. CASE SIZE - 1D V 10T CONTACTS (S/R OR H/R) - 2 N/O S/R E/F OR U/V SETTING - NOT APPLICABLE FLAG - YES MOUNTING - FLUSH O/C OR O/V SETTING - 2.5-10 Amps. Name Plate RFG9126674 Outline Diagram MFJ012 Wiring Diagram MADZ802.63-1
ALSTOM GBCDG11AF001SCCH SELF-POWERED INVERSE TIME O/C OR E/F REL Technical Specifications Model No : CDG11AF001SC(M) CDG11 APPLICATION - O/C BURDEN / D.M.T - 3VA / 3 SECS. C.T. SECONDARY - 5 AMP C.T. CASE SIZE - 1D V 10T CONTACTS (S/R OR H/R) - 2 N/O 2 N/C H/R E/F OR U/V SETTING - NOT APPLICABLE FLAG - YES MOUNTING - FLUSH O/C OR O/V SETTING - 2.5-10 Amps. Name Plate RFG9126 774 Outline Diagram MFJ012 Wiring Diagram MADZ802.64-1
ALSTOM GBCDG11AF002SACH SELF-POWERED INVERSE TIME O/C OR E/F REL Technical Specifications Model No CDG11AF002SACH CDG11 APPLICATION - O/C BURDEN/D.M.T - 3VA/3 SECS. C.T. SECONDARY - 1 AMP CT. CASE SIZE - 1D V 10T CONTACTS (S/R OR H/R) - 2 N/O S/R E/F OR U/V SETTING - NOT APPLICABLE FLAG - YES MOUNTING - FLUSH O/C OR O/V SETTING - 0.5-2 Amps. Name Plate RFG9126671 Outline Diagram MFJ012 Wiring Diagram MADZ802-63-1
GBCDG11AF002SCCH SELF-POWERED INVERSE TIME O/C OR E/F REL Technical Specifications Model No : CDG11AF002SC(M) CDG11 APPLICATION - O/C BURDEN / D.M.T - 3VA / 3 SEC. C.T. SECONDARY - 1 AMP CT. CASE SIZE - 1D V 10T CONTACTS (S/R OR H/R) - 2 N/O 2 N/C H/R E/F OR U/V SETTING - NOT APPLICABLE FLAG - YES MOUNTING - FLUSH O/C OR O/V SETTING - 0.5-2 Amps. Name Plate RFG9126 771 Outline Diagram MFJ012 Wiring Diagram MADZ802.64-1
ALSTOM GBCDG11AF003SACH SELF-POWERED INVERSE TIME O/C OR E/F REL Technical Specifications Model No CDG11AF003SACH CDG11 APPLICATION - E/F BURDEN / D.M.T - 3VA / 3 SECS. C.T. SECONDARY - 5 AMP C.T. CASE SIZE - 1D V 10T CONTACTS (S/R OR H/R) - 2 N/O S/R E/F OR U/V SETTING - 1-4 Amps. FLAG - YES MOUNTING - FLUSH O/C OR O/V SETTING - NOT APPLICABLE Name Plate RFG9126796 Outline Diagram MFJ012 Wiring Diagram MADZ802.63-1
