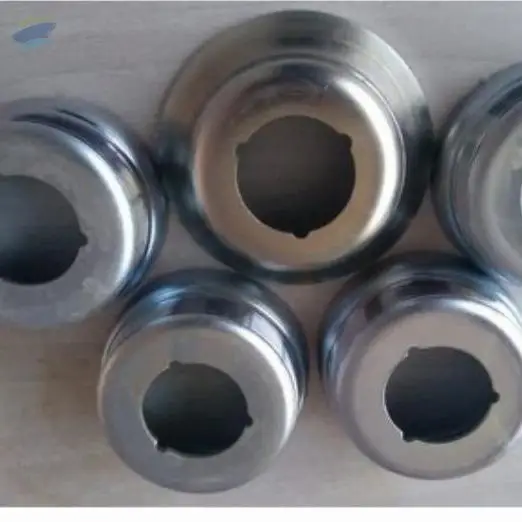

Cylinder Neck Ring

Product Description
The cylinder neck ring mounts to a seamless high pressure cylinder to provide a means of attachment for the cylinder valve protection device, whether it be a cap, valve guard or other valve protective device. Due to the varying boss sizes on cylinders, our neck rings are custom made to fit your manufacturing needs. The most common sizes are maintained in stock at our Wheatland facility. The neck ring can also double as an identifying label on the flange of the neck ring by embossing your company name, logo and phone number if desired.


KEY FEATURES:
Zinc Plated
High Quality Steel
Rolled threads that provide better characteristics & higher strength
Available with or without nibs, (typically there are 0, 3, 5 nibs.)
OD - 90 mm
Id hole - 40.5/44 mm customized
Height - 40 mm to 43 available- customized
Thread - w80Ã??11 TPI
Material - 3.5 mm thickness MS
Prime Cylinder neck ring manufacturer

OPTIONS:
Available in bore sizes from 0.900â?? and 2.56â??. Custom bores available upon request. Custom heights available per your requirement Other standard skirts sizes, (i.e. industrial short skirt 3-3/8â?? diameter, full skirt and no skirt) Custom Lettering Available (Most dies in stock.) No die charges on minimum order qty. Contact your ACC sales associate for more details.
