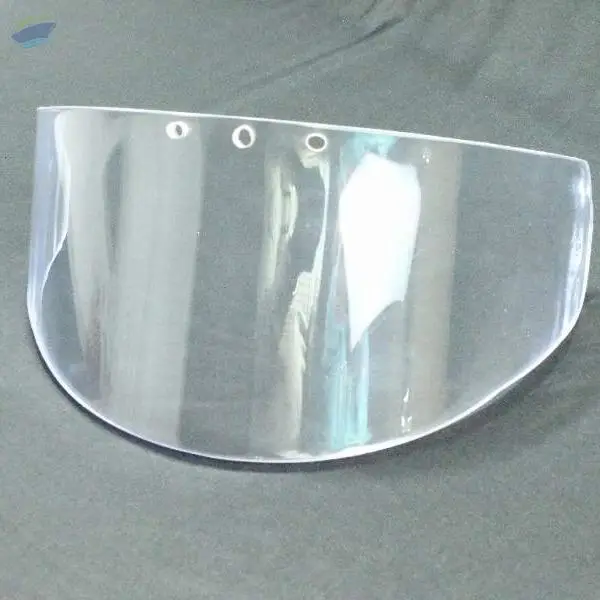

Acrylic Thermoforming

Supplier: Plastic injection mould, plastic blow mould, thermoforming, roto casting, acrylic display products, metal insert moulding, over molding

Thermoforming is a generic term for the manufacturing of plastic components through the vacuum or pressure forming processes. An overview of the single-sheet thermoforming process consists of heating extruded plastic sheet and forming the sheet over a male mold or into a female mold. Depending on what type of mold a customer selects, the thermoforming process allows the customer the ability to receive a part with the same aesthetic properties as an injection-molded part at a fraction of the tooling expense involved when you compare the cost in injection molding. There are many types of Thermoforming process is availble. For example single sheet thermoforming,Plug assisted,Pressure forming,Vaccumforming ,twin sheet thermoforming. Twin-sheeting is heating two sheets of plastic and then forming and sealing the two sheets of plastic together during the forming process.Materials like PVC, ABS, PETG, ACRYLIC, PP, HDPE can be thermoformed upto 10 mm thickness. In some cases, the twin-sheeting process produces parts that resemble a blow-molded part, but the twin sheeting process allows the customer to receive a higher quality, more aesthetic part also a two color part, if required.

Wherever clarity and strength are required, Cast Acrylic Sheet is the clear solution. Cast acrylic sheet is a lightweight plastic sheet with high impact resistance and optical clarity. Cast acrylic sheet boasts a higher molecular weight than extruded acrylic sheet, has a better resistance to crazing when exposed to solvents and a harder surface. Cast acrylic sheet is also available in a large variety of custom colors. This product can come in many sizes, thicknesses, and finishes and is easily fabricated and thermoformed. Cast acrylic sheet is used in many applications including POP displays, skylights, furniture, aquariums, signage ,interiors , display cases, and security windows and many many Acrylic sheet, with its moldable material, lightweight nature, and high impact resistance, combined with superior optical clarity, is used in a wide range of applications. Anywhere that a see through surface that is both strong and attractive is needed, cast acrylic sheet is the solution. Product Specifications Available Thickness: From 2.8mm up to 50mm Available Size: 1220mm x 2440mm & 2050mm x 3050mm Available Masking Type : Paper masking and Film masking

Acrylic is a transparent plastic material with outstanding strength, stiffness, and optical clarity. Acrylic sheet is easy to fabricate, bonds well with adhesives and solvents, and is easy to thermoform. It has superior weathering properties compared to many other transparent plastics.
