Key Specifications

Price$199 / Piece

MOQNot Specified

Product GradeA

StandardHART

IncotermsFOB

Product Description

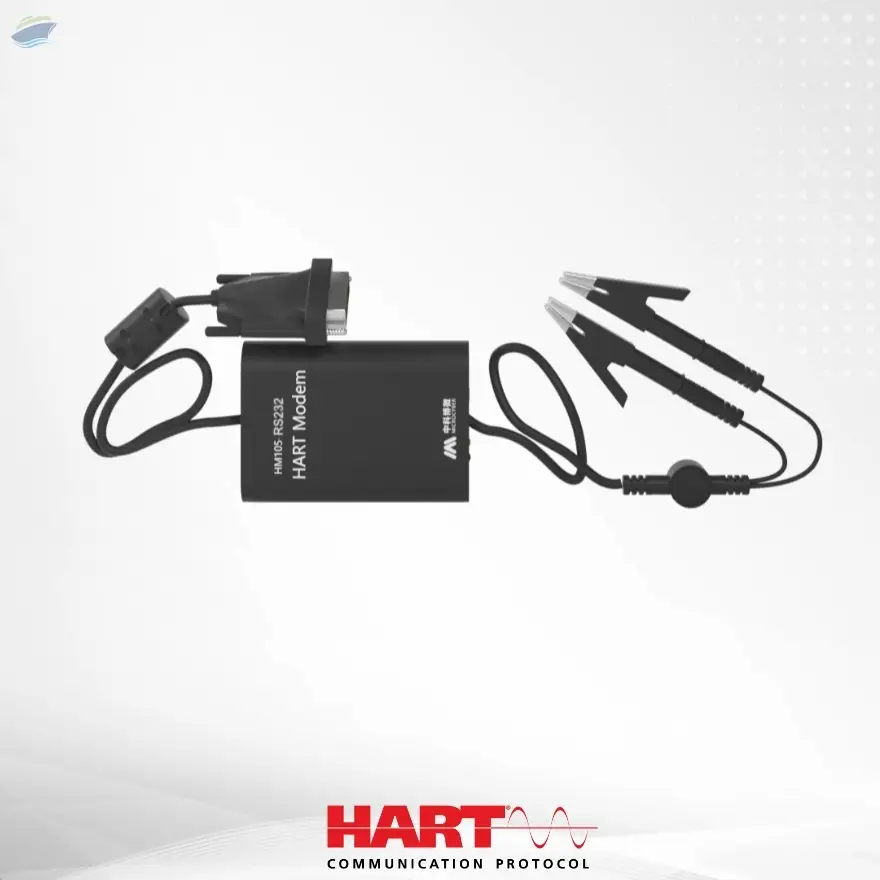

In the instruments industry, the traditional 4 20 mA analog transmitters are upgrading to the fieldbus with digital communication. HART fieldbus communication has digital communication capability with compatible analog signal. HART MODEM is a necessary and convenient tool for the analog products upgrading and signal exchanging in the control plant. We provide two kinds of HART modem. HART-RS232 is the converter for HART signal to RS-232 signal. HART-USB is the converter for HART signal to PC virtual series port.

Product characteristic:

According to the HART physical layer specification

Isolated transformer prevents the influence of earthing.

Voltage signal modulator/demodulator

Low power consumption designation

Powered by series port or USB port

Interface Type: DB9 female mount

Ambient Temperature: 0 ~ 50C

Compressive Strength :500 V AC HART bus and serial port (UART,USB)

Receiving Impedance : end-to-end

Output Signal VPP: 600 mV 400 mV, 500 Ã?Â© load resistance

Receiving Sensitivity: 120 mV, 500 test resistance

HART-RS232 is the protocol converter between HART device and configurator on PC.
The figure above is a sample basic case. To connect multiple HART device, please connect the other devices parallel with the Transmiter. Please note that the power should support multiple devices and the terminator should be set in the middle of the power and parallel point.

HART-RS232 is a HART MODEM with voltage modulator/demodulator. To communicate with a HART device, please connect the clincher of HART port of HART-RS232 to the two terminals of the network adaptor resistance or the power of HART device. To communicate with a PC, please connect the other port of HART-RS232 to the series port of PC.

The USB driver installation program should be run for HART-USB. The driver provides a virtual series ports for HART configurator software.

The indication light shows the state of modem. Green LED indicates the power is working well and the modem is sending data. Red LED indicates the modem is receiving data

Full Specifications

Product Name	Hart-Usb/rs232 Modem
Seller Code	Ncs-hm105
Product Grade	A
Standard	HART
Price	$199 / Piece
Minimum Order	Not Specified
Incoterms	FOB
