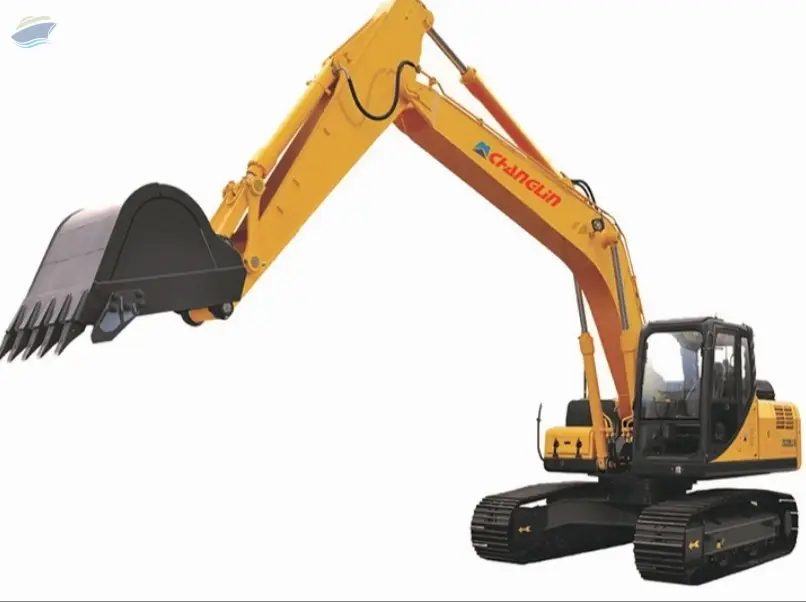

Hydraulic Crawler Excavator

General Dimensions

Operating Weight: 20,000 - 25,000 kg

Overall Length: 9.5 - 10.2 m

Overall Width: 2.8 - 3.2 m

Overall Height (to cab): 2.9 - 3.1 m

Ground Clearance: 450- 500 mm

Tail Swing Radius: 2.7 - 3.0 m

Engine

Power Output: 140 - 180 HP (105 - 132 kW)

Engine Type: 6-cylinder turbocharged diesel

Displacement: 6.7 - 7.0 liters

Fuel Tank Capacity: 300 - 400 liters

Performance

Max Digging Depth: 6.0 - 6.7 m

Max Reach at Ground Level: 9.5 - 10.5 m

Max Dumping Height: 6.5 - 7.2 m

Bucket Capacity: 0.8 - 1.2 m³ (standard)

Bucket Digging Force: 120 - 150 kN

Arm Digging Force: 90 - 110 kN

Swing Speed: 11 - 12 rpm

Travel Speed: 5.0 - 5.5 km/h

Undercarriage

Track Shoe Width: 600 - 800 mm

Track Length on Ground: 3.0 - 3.5 m

Number of Track Rollers (each side): 8-9

Gradeability: 35 (70%)

Hydraulic System

Pump Flow: 400 - 450 L/min

Max Hydraulic Pressure: 32 -35 MPa

Attachment Compatibility: Breaker, Auger, Grapple, Clamshell

Cabin & Features

ROPS/FOPS certified cabin

Air-conditioned with suspension seat

Joystick proportional control

LCD display with machine monitoring system

Noise & vibration insulation

Rear & side cameras (in modern models)

Attachments

Standard bucket (0.8-1.2 m3)

Heavy-duty rock bucket

Hydraulic breaker

Ripper & ripper tooth

Clamshell & demolition tools

Introduction of 913D 13ton Hydraulic Crawler Excavator
913D 13ton Hydraulic Crawler Excavator adopts originally imported Cummins B3.9 engine which features Tier 2 standards, energy saving, environmental care, and convenient service and maintenance;
It adopts radial seal air filter with pre-filter which effectively prolongs engine life, with fuel filling pump and pressure transmitter as standard device for higher fuel economy.
It adopts originally imported hydraulic parts, which features stable and reliable quality, high efficiency, and big digging force;
It adopts new type cab and seats, brand-new interior, and new air conditioning system with automatic adjustment function for comfortable operation;
New generation electric control system: large color display capable of real time monitoring of machine operation condition, self-diagnosis and recording, electric throttle, and multiple work modes.
Multiple kinds of buckets and optional parts like dozer blades, breakers, scarifiers, electromagnetic suction cups, quick couplers, etc. are available for digging, landfill, breaking, and grading operations.
The multifunctional GPS can achieve remote control and data transfer so that the real time machine conditions can be known.

The 1.7 ton mini hydraulic crawler Excavator is CE certified and is designed for small spaces and light engineering. The mini crawler excavator combines excellent digging ability and flexibility, suitable for various earthwork operations.
1. Municipal construction: pipeline laying, foundation excavation, small road construction, etc.
2. Landscaping: tree transplantation, flower bed excavation, gardening design, etc.
3. Construction: foundation excavation and earthwork of small houses.
4. Agriculture and forestry: farmland preparation, canal excavation and forest maintenance.
5. Repair and maintenance: suitable for maintenance and repair of urban facilities.

Features
1. Compact design
The 1.7ton mini hydraulic crawler excavator is compact and can rotate 360�°, which is convenient for multi-directional excavation in limited space.
2. Efficient power system
The mini crawler excavator is equipped with an efficient Kubota engine to ensure strong working performance and reliability.
The optimized hydraulic system improves working efficiency and reduces fuel consumption.
3. Comfortable operating environment
The cab design is ergonomic, spacious and has a good view.
Equipped with a modern operating interface and comfortable seats to reduce fatigue.
4. Excellent safety
The 1.7Ton mini crawler excavator is equipped with a rubber crawler chassis and has a reliable anti-overturning design and stability.
5. Versatility
This crawler excavator has a quick-change design and is compatible with various excavation and loading attachments, such as buckets, grabs, forks, breakers, mowers, etc., which is convenient and flexible to switch working tools to meet different operating needs.

Parameters
Model EX-17
Bucket Capacity 0.025m�³
Swing Speed 0-13rmp
Gradeablity 30�°
Max. Bucket Digging Force 9KN
Max. Arm Digging Force 5.5KN
Engine Model Kubota D722
Power/Revolution Speed 18.8KW
System Pressure 18Mpa
Dimension 2900*1100*1500mm
Cabin Height 1600mm
Axle Base 1200mm
Wheel(track)Distance 800mm
Min Ground Clearance 170mm
Tail Swing Radius 750mm
Max.Digging Height 2550mm
Max.Dumping Height 1850mm
Max.Digging Depth 1800mm
Max. Vertical Digging Depth 1650mm
Max. Digging Radius 2300mm
Min.Swing Radius 1650mm

Key Attributes:
Industry: Construction
Year: 2020
Showroom Location: Not available
Operating Weight: 12 tons
Bucket Capacity: 0.5 cubic meters
Machine Weight: 12200 kilograms
Hydraulic Cylinder Brand: Other
Hydraulic Pump Brand: Other
Hydraulic Valve Brand: Other
Engine Brand: ISUZU
Power: 66 kilowatts
Machinery Test Report: Included
Outgoing-Inspection Video: Available
Core Components: Motor, Pump, Engine

SPECIFICATIONS
Hours: 0-2000
Made in: Japan
Type: Crawler
Genuine: Yes
Fuel: Diesel
Use: Construction
Area: Shanghai Yard
Color: Orange
Status: Ready
Shipping: 7-15 days
Dimensions: 761024902740mm
Hitachi Excavator ZX345
Introducing the Hitachi Excavator ZX345, a powerhouse in the world of heavy machinery. Designed to tackle the toughest jobs with ease, this excavator combines cutting-edge technology with unparalleled performance.

Key Features:
Robust Performance: The ZX345 is equipped with a powerful engine that delivers superior performance, making it ideal for a wide range of applications.

Advanced Technology: With state-of-the-art technology, including advanced hydraulic systems and precision controls, this excavator ensures efficiency and accuracy on the job site.

Durability: Built to last, the Hitachi ZX345 is constructed with high-quality materials and components, ensuring durability even in the most demanding conditions.

Operator Comfort: The spacious cab is designed for maximum comfort, with ergonomic controls and excellent visibility, allowing operators to work efficiently for long hours.

XE150D Crawler Excavator



1. The overall layout and the axle load distribution are more reasonable to achieve better traveling stability and the maximum traveling speed is up to 40km/h to realize faster site transfer speed.

2. The domestic leading hydraulic system distribution technology features high energy-saving and efficiency.

3. The highest breakout force on the loading end is leading the industry by 15%~20% compared with like models.

4. The advanced structure and hinge points on the digging end and the industry's largest rotating angle of the bucket ensure strong soil holding capacity.

Specification

Item
Parameters
Engine
Model
QSF3.8
Equipped
Electronic fuel injection
Four strokes
Water cooling
Turbo-charging
Air to air intercooler
No. of cylinders
4
Output power
93/2200 kW/rpm
Torque/speed
500/1300 N.m/rpm
Displacement
3.76 L
Operation Weight
14600 kg
Bucket Capacity
0.32-0.71 m ³
Main performance
Travel speed(H/L)
5.3/3.2 km/h
Rotating speed
11.7 r/min
Gradeability
35°
Ground pressure
37 kPa
Bucket digging force
106.9 kN
Arm digging force
73.4 kN
Maximum traction
184 kN
Hydraulic system
Main pump
K7V63DTP
Rated flow of main pump
2Ã?123.5 L/min
Pressure of prime valve
34.3/37.0 Mpa
Pressure of pilot system
3.9 Mpa
Oil capacity
Fuel tank capacity
260 L
Hydraulic tank capacity
105 L
Engine oil capacity
11 L
Appearance size
Overall dimensions(L*W*H)
7795Ã?2590Ã?2900 mm
Width of platform
2490 mm
Width of crawler
600 mm
Crawler gauge
1990 mm
Clearance under counterweight
948 mm
Min. ground clearance
477 mm
Min. tail swing radius
2325 mm
Working scope
Max. digging height
8649 mm
Max. dumping height
6185 mm
Max. digging depth
5535 mm
Excavation depth of 8 feet level
5324 mm
Max. vertical wall digging depth
4697 mm
Max. digging reach
8304 mm
Min. swing radius
2445 mm
Standard
Boom length
4600 mm
Arm length
2520 mm
Bucket Capacity
0.61 m ³
Optional
Arm length
2100/3010 mm
Bucket Capacity
0.32/0.4/0.71/0.52

2 ton crawler hydraulic small Excavator is equipped with a Kubota engine, low emissions, compact design, and is suitable for various small projects. This excavator demonstrates strong operating capabilities in a small space with its excellent performance and flexible operation.
Wenpeng Machinery Factory Direct Sales, Favorable Prices. We supply a variety of crawler hydraulic excavators and attachments that meet CE and Euro 5 standards, so you can buy with confidence.

Features
1. Compact and flexible design
The 2 ton crawler hydraulic small excavator has a compact body, which is easy to move and operate flexibly in a small space.
The 360�° rotation function makes excavation and loading work more efficient.
2. Environmental protection
The 2 ton crawler small excavator is equipped with a Kubota engine, which provides excellent power and excellent fuel economy, low emissions and low noise.
3. The optimized design of the hydraulic system brings stronger digging force and stable operating performance.
4. Comfortable operating environment
The cab is spacious and equipped with comfortable seats.
5. Versatility
The Wenpeng crawler hydraulic small excavator is equipped with a quick-change device, which is suitable for a variety of buckets, grabs and other accessories to meet different operating needs.

Parameters
Model EX-20
Bucket Capacity 0.07m�³
Swing Speed 0-9rmp
Gradeablity 35�°
Max. Bucket Digging Force 18KN
Max. Arm Digging Force 11KN
Engine Model Kubota D1105
Power/Revolution Speed 14.2/2000(KW/rmp)
System Pressure 21.5Mpa
Dimension 3555*1300*2290mm
Cabin Height 2290mm
Axle Base 1230mm
Wheel(track)Distance 760mm
Min Ground Clearance 150mm
Tail Swing Radius 650mm
Max.Digging Height 3700mm
Max.Dumping Height 2440mm
Max.Digging Depth 2400mm
Max. Vertical Digging Depth 2025mm
Max. Digging Radius 4040mm
Min.Swing Radius 1610mm

Mini Excavator Canopy Crawler Hydraulic Thumb.

Operating weight ::::::: 1100 kg
SIZE
Transport length ::::::: 2256 mm
Transport width ::::::: 917 mm
Transport height ::::::: 2215mm
Maximum digging radius ::::::: 2823mm
Maximum excavation depth ::::::: 1563mm
Maximum digging height ::::::: 2478mm
Maximum unloading height ::::::: 1826mm
Walking speed ::::::: 0-1.8km/h

DRIVE
Engine Brand ::::::: Briggs & Stratton
Model ::::::: DM150
Maximum horsepower (ps) ::::::: 13.5

WALKING CHARACTERISTICS
Maximum speed (rpm) ::::::: 3600
Maximum excavation force (kN) ::::::: 9.2
Maximum power (Kw) 13.5

From establishment we insist on developing based on the product quality and aspire to offer our excellent products and after service for our customers. Our watchword is surviving on quality, developing on innovation and make best profit for clients. Our company already met iso9001:2000 certificate of registration in 2001 and met ce mark in 2005 in order to manufacture better products for customers. Now the products used around china and also have been exported to more than 30 countries and areas in australia, uk, italy, norway, swiss, sweden, spain, germany, france, belguim, greece, malaysia, thailand, indonesia, singapore, america, canada, u.A.E, korea, japan, turkey, poland, taiwan ect..
We strive for organizing the excellent sales network, establishing business relationship with remarkable agents all over the world, setting up and improving sales and after service system, creating mutual benefit with the agents.
On the aspects of mini-excavator, our target is to be a manufacturer who has most competitive in the field of medium & mini-excavator in china, and to be a famous international brand in the world in the near future.
For the spare parts for construction machinery, we aspire to be the excellent supplier of complete series, top quality and best service. Thanks for choosing nante, we will do our best to meet your demand, only because you continue to support us.


Nude packing, 1500mm*1350mm*820mm----2600mm*2560mm*1700mm;0.8t---4.5t
