Technical Features and Advantages
Maximum Output Power: 6.2 kW output capacity, enough to power all your electrical devices in homes, offices, caravans, cottages, villas, and tiny houses.
Voltage Compatibility: Operates with 48V DC battery systems.
Built-In MPPT Charge Controller: Offers up to 98% charging efficiency, directing solar energy to batteries in the most efficient way.
Smart Display & Menu: Advanced LCD screen allows real-time monitoring of system voltage, charging status, load, and other parameters.
Pure Sine Wave Output: Fully compatible with sensitive electronic devices.
Multiple Protection Systems: Protects against overvoltage, short circuits, overheating, and undervoltage.
AC or Generator Charging Support: Can charge batteries from an external AC source, ensuring uninterrupted power.
Low Standby Power Consumption: Contributes to energy savings.
Durable and Compact Design: Heat and impact-resistant casing ensures long-lasting use.
Where Can the NP Power 6.2 kW Inverter Be Used?
Off-grid areas with no grid access
Caravans, boats, and other mobile applications
Tiny houses and container homes
Remote cottages, mountain or vineyard houses
Agricultural applications: irrigation, automation, lighting
Commercial businesses requiring backup power (small shops, clinics, workshops, etc.)
Why Choose NP Power?
Backed by 12 years of Electrozirve engineering experience, NP Power inverters offer reliable energy solutions with wide functionality, high efficiency, professional support, and a user-friendly interface.

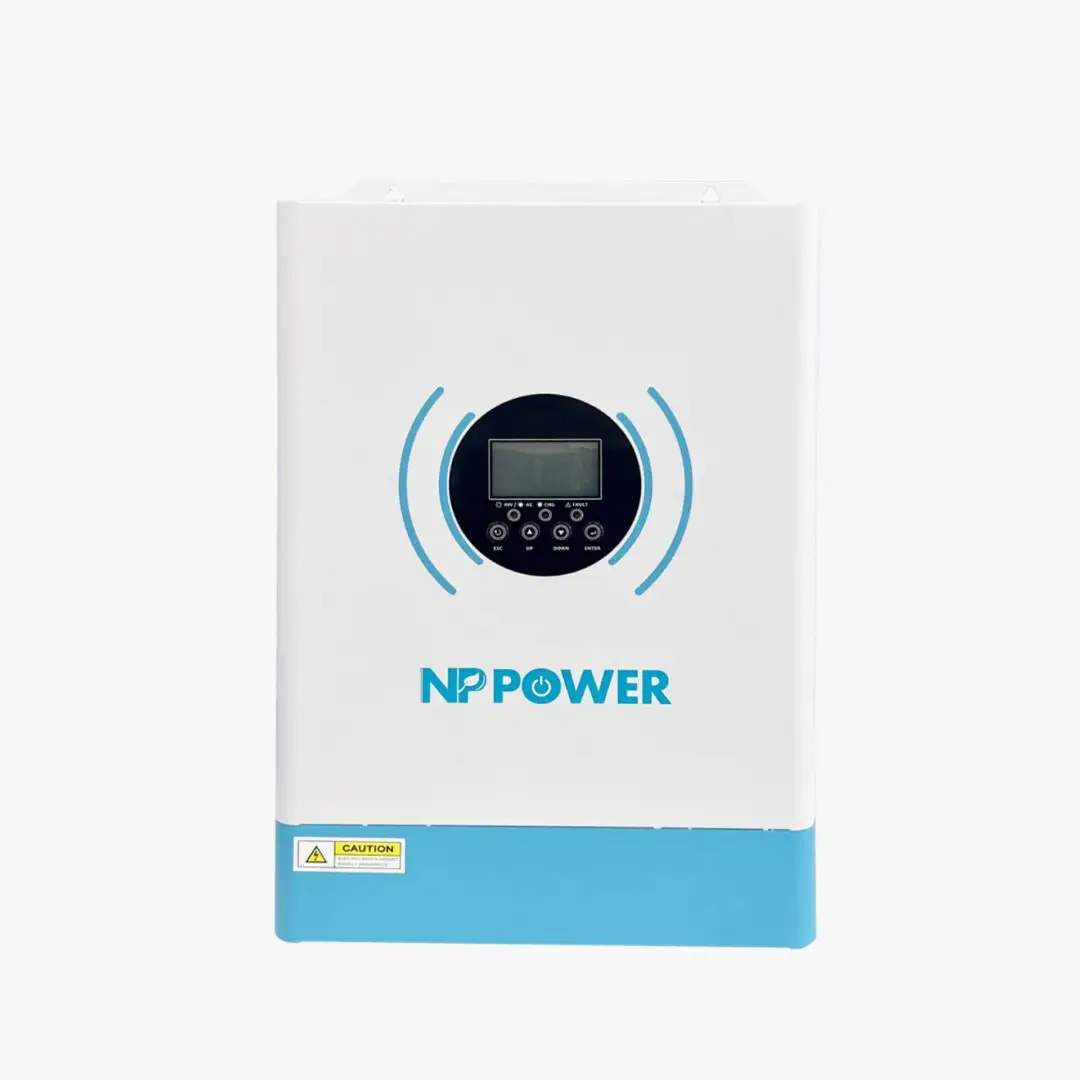

EM6200 Smart Hybrid Inverter - Technical Specifications
Category Specification
Model EM6200 (6.2kVA / 6200W)
Output Waveform Pure Sine Wave
Nominal AC Input 230Vac
AC Input Range 90-280Vac (Devices), 170-280Vac (UPS)
AC Input Frequency 50Hz / 60Hz (auto-detect)
Max AC Input Voltage 300Vac
Transfer Time 10ms (UPS mode) / 20ms (Devices)
DC Input Voltage 48Vdc
AC Charging (Max) 80A
PV Charging (Max) 120A
Max Combined Charge 120A
Bulk Charge Voltage 56.4V (AGM/GEL) / 58.4V (Flooded)
Float Voltage 54.0V
Overcharge Protection 63V
Charging Stages 3-stage (Bulk, Absorption, Float)
PV VOC (Max) 500Vdc
MPPT Voltage Range 60Vdc - 500Vdc
PV Max Input Current 27A
PV Rated Power 6500W
Overload Capacity 2 power for 5 seconds
Efficiency (Max)
94%
Operating Temp -10C to +55C
Storage Temp -15C to +60C
Humidity Tolerance 5% - 95% (non-condensing)
Dimensions (LxWxH) 438 295 105 mm
Weight 8.7 kg
Display LCD & LED panel
Battery Compatibility AGM, GEL, Flooded, Lithium (BMS compatible or not)
Communication Interface RS232, RS485 (for BMS), Modbus
Advantages
Flexible Power Sources: Supports solar, grid, and battery simultaneously (hybrid).
Mode Selection: Choose between solar priority, grid priority, or battery priority.
Wide Battery Compatibility: Works with AGM, GEL, Flooded, and Lithium (with or without BMS).
Advanced PV Support: Up to 500V PV input, 27A current, 6500W solar capacity
