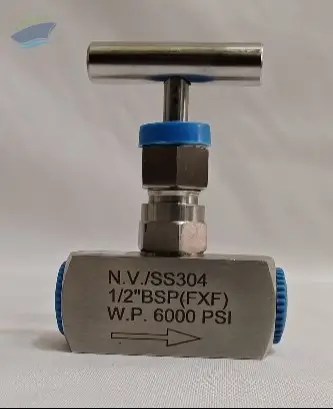

Ss Needle Valve

*stainless steel 316 forged body
*available with straight and angle pattern
*panel mounting
*working pressure 6000 psig

Standard export package

Forged Steel Needle Valve

BSEN ISO 15761

Pressure Rating : Class-800

Material : Forged Steel (A105)

Description : Bolted Bonnet, OS & Yoke Type, Rising Stem

Ends : Socket Weld, Butt Weld, Screwed

Operator : Hand wheel, Electric

Specials : Stem Extension, LT & Cryo, Fire Safe, Seismic, IBR

Item Code : FCS00019

Size : 15mm

Notes :

Available Valve Size :
CLASS-800 8mm to 50 mm
CLASS-1500 15mm to 40 mm
CLASS-25000 15mm to 25 mm

Material : LF2, F5, F9, F11, F22, F304, F304L, F304H, F316, F316L, F316H, F91, F51, F321H, F321

Max Working Pressure : 30,000 PSI (2069 kg/cm2) @ 25ºC (77ºF)
Max. Temperature : 210ºC (410ºF)
Testing Pressure : Hydrostatic Body - 45,000 PSI (3103 Kg/cm2)
Hydrostatic Seat - 30,000 PSI (2069 Kg/cm2)
Pneumatic Seat - 569 PSI (40 Kg/cm2)
Service Medium : Liquid Gas or Vapours Service
Types of valves : Needle Valve - Straight Type, Angle Type (90º)
Two way & Three way
Two piece, nonrotating stem tip
Two piece, nonrotating stem tip
Connection Size : 1/4” , 3/8” , 9/16”
Orifice Size : 2.4 mm (0.093”)
Gland Seal (Packing) : Glass filled PTFE: Temperature Min. -73ºC (-99.4ºF) to max. 210º (410ºF)
Material : SS 304, SS 316, SS 304L, SS 316 L
with NACE MR-01-75 & NACE MR-01-03 (For Sour gas service)
Material certificate according to EN 10204/3.1b
Body - Cold worked stainless steel
Stem - 17-4 PH
Handle - Stainless steel Bar stock
Finish : SS Natural
Mounting Arrangement : Needle Valves - Integral through-holes
for bracket mounting
Panel Mounting option is also available.
Standard Followed : ANSI B 16.34

Product Description - 1/8" To 2" (BSP / NPT / Metrics) 1000 PSI to 20000PSI All Types Of Alloy Steel Grade -20 C to 350 C PRESSURE:- 1000 PSI to 20000PSI

Product origin - MUMBAI

Key Specifications/Special Features - Female x Female Connection, Female x Male Connection Male x Male Connection,OD Tube Connection (Metric)

Minimum Order Size and Packaging details - 26 PIECE

Needle valves are usually used in flow-metering applications, especially when a constant, calibrated, low flow rate must be maintained for some time, such as the idle fuel flow in a carburetor. Needle valves sometimes referred to as plunger valves. A needle valve has a relatively small orifice with a long, tapered seat, and a needle-shaped plunger on the end of a screw, which exactly fits the seat. These needle valves are an ideal option for isolating or throttling applications. The self centering, non rotating stem ensures perfect seating. The rigid design gives repetitive bubble tight shut off, easy.s.

Our range of needle valves has been designed with durability and performance in the spotlight. These needle valves are available in a variety of sizes (1/4, ½, 1/8 inch).

Our range of needle valves has been designed with durability and performance in the spotlight. These needle valves are available in a variety of sizes (1/4, ½, 1/8 inch).

Max Working Pressure : 10,000 PSI (689 BAR) @ 25ºC (77ºF)
Max. Temperature : 540ºC (1004ºF)
Testing Pressure : Hydrostatic Body - 15,000 PSI (1034 BAR)
Hydrostatic Seat - 10,000 PSI (689 BAR)
Pneumatic Seat - 569 PSI (39 BAR)
Service Medium : Liquid Gas or Vapor Service
Types of valves : Needle Valve - Straight Type, Angle Type (90º & 45º)
Gland Seal : PTFE(Standard) : For temperature range -73ºC (-99.4ºF) to 210ºC (410ºF)
Graphoil : For temperature range 180ºC (356ºF) to 540ºC (1004ºF)
Material : Carbon steel, SS 304, SS 316, SS 316 L, Monel 400
NACE MR-01-75 & NACE MR-01-03 (For Sour gas service) can also be
provide Material certificate according to EN 10204/3.1b
Finish : Carbon steel - zinc plated & dichromated,
SS Natural
Mounting Arrangement : Needle Valves - Panel Mounting
Design Standard : ANSI B 16.34

Hitesh Metal is expertise trader & supplier for high quality Steel Needle Valves , which is a pipe attachment detail in which a pipe is inserted into a recessed area of a Valve, fitting or flange. Fatigue resistance is lower than that in butt - welded construction due to the use of fillet welds and abrupt fitting geometry, but it is still better than that of most mechanical joining methods.

Stainless Steel Needle Valves offered by Hitesh Metal are used for lines conveying flammable, toxic or expensive material where no leakage can be permitted. Valves are used only in conjunction with ASME Pipe and are available in the same size range. Carbon Steel Needle Valves are used in areas where pipe - work is permanent and are designed to provide good flow characteristics.

They are mainly used for small pipe diameters (Small Bore Piping); generally for piping whose nominal diameter is NPS 2 or smaller. Alloy Steel Needle Valves offered by Hitesh Metal is a good choice wherever the benefits of high leakage integrity and great structural strength are important design considerations. To join pipe to Valves and fittings or to other sections of pipe, fillet - type seal welds be used.

Duplex Steel Needle Valves are produced to several ASTM standards and are manufactured in accordance with ASME B16.11. Hitesh Metal also offer these Nickel Alloy Needle Valves in different sizes, shapes and designs as per customers specifications at affordable rates.

ANSI/ASME B16.10 Needle Valves Specifiactions:
Materials CS, SS, Monel, Hastalloy, Duplex and High Nickel alloys
Seat Metal or Soft.
Connections Thread, Weld or Tube End
Design Forged Body with Inline/Straight or Angle Pattern, Integral Bonnet Design
Size 1/8 to 1, Custom Sizes available on request
End Connection Male and Female NPT, BSPT, Socket Weld (SW) or Dual Ferrule Tube Connections, Male to Female, Female to Female
Working Pressure Up to 6000 PSIG, Needle Valves are also available that can handle higher pressure
Stainless Steel Needle Valves: up to 6000 psig (414 bar)
Steel Needle Valves: up to 3000psig (207 bar)
Brass Needle Valves: up to 3000 psig (207 bar)
Temperature Rating PTFE 450F,(232C)/ Grafoil 700 F(371C)
PTFE Packing: -65 F to 450 F ( -54 C to 232 C)
PEEK Packing: -65 F to 600 F ( -54 C to 315 C)
