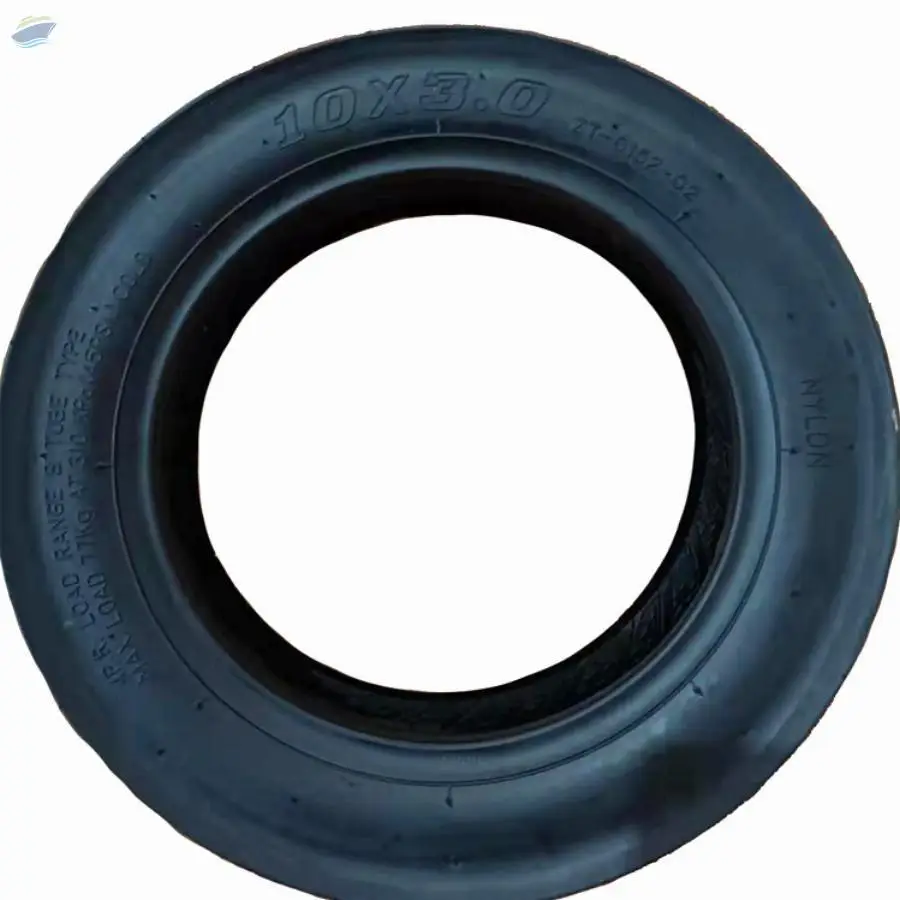

10X3 Pneumatic Tyre

10x2 puncture resistant electric scooter rubber tires electric bike wheel parts for adults

Name Scooter rubber tire

Material Natural rubber

Type 10*2 Pneumatic tyre

Outer diameter 25.5 cm

Inner diameter 15.6 cm

Tyre tread width 4.8 cm

Usage For e-bike or e-scooter

Electric scooter tire 70/65-6.5 wheel tire

Product name 70/65-6.5 outer tire

Tyre size 10 inch

Main material Natural rubber

Tyre type Pneumatic tyre

Outer diameter 23 cm

Inner diameter 16.3 cm

Tyre tread width 8.5 cm

Usage For ebike or electric scooter wheel parts

MOQ 1 Pcs

Place of Origin Hebei Province, China

10 inch 10x2.125 Tire 2 wheel scooter wheel for MIJIA M365 Scooter Outer Tire parts

Product name 10x2.125 tire

Tyre size 10 inch

Tyre type Pneumatic tyre

Main material Natural Rubber

Outer diameter 24 cm

Inner diameter 15 cm

Tyre tread width 6 cm

Net Weight 460g

Usage For electric scooter or ebike wheel parts

MOQ 1 Piece

Place of Origin Hebei Province, China

10 inch electric scooter adult tyre 10x2.5 electric skateboard pneumatic tire

Product name 10x2.5 inflatable Tyres

Tyre size 10 inch

Tyre type Pneumatic tyre

Main material Natural Rubber

Outer diameter 23.5 cm

Inner diameter 15.5 cm

Tyre tread width 7 cm

Color Black

MOQ 1PCS

Place of Origin Hebei Province, China

JINGYUAN 60/70-6.5 inflatable tyres for electric scooter 10 inch tires ebike tyre

Product name 60/70-6.5 Inflatable Tyres

Tyre size 10 inch

Main material Natural Rubber

Tyre Type Pneumatic tyre

Net Weight 550g

Color Black

Outer diameter 23.5 cm

Inner diameter 16.5 cm

Tyre tread width 6.3 cm

MOQ 1PCS

Place of Origin Hebei Province, China

Product name: XGZ8088

net weight : 23

Box specifications
132*47*67

Certification of the CE GCC


Tyre size: 121*71*71


Tyre type: Pneumatic tyre(front), solid tyre(rear)

Light system: LED headlight, brake tail light, power indicator

12v7A battery portable (plus 10A can be made)

Technical parameter
Over all Dimensions: 900x640x1230mm
Weight (W/O batteries): 90Kg/120Kg

Tread:542mm
Wheelbase: 1460mm

Strong batteries: 12V55Ah) x2 (75AH for option)
Charger: 24V5A

Pneumatic tyre: front: 13í» rear: 13í»
Drive system: Rear engine, Rear drive.

Brake system:rear wheel, electromagnetic brake.
Motor power: 950W (800W for option)

Max forward speed: 12km/h
Max backward speed: 6km/h

Reduction gear ratio: 20:1
Turning radius: 2190mm

Driving range: 45 km
Max weight capacity: 200KG (changeable according to motor power)

Max Gradeability: Full loading 12íp
Vertical Cross Height: 40mm

Trench Crossing Width: 120mm

Technical parameter
Over all Dimensions: 1370x640x1230mm
Weight (W/O batteries): 65Kg/92Kg
Tread: 542mm
Wheelbase: 933mm

Strong batteries: 12V44Ah) x2 (55AH, 75AH for option)
Charger:Off board DC24V 4A (24V5A for option according to the capacity of batteries)
Pneumatic tyre: front: 13í» rear: 13í»
Drive system: Rear engine, Rear drive.
Brake system: rear wheel, electromagnetic brake.
Motor power: 500W (380W, 800W, 950W for option)

Max forward speed: 12km/h
Max backward speed: 6km/h

Reduction gear ratio: 20:1
Turning radius: 1430mm

Driving range: 45 km
Max weight capacity: 150KG (changeable according to motor power)

Max Gradeability: Full loading 12íp
Vertical Cross Height: 40mm

Trench Crossing Width: 120mm




Carton and packing frame

5 - Foot sheet chariot
5.1 Dimensions:
Total length 930 mm Width 650 mm Height 1070 mm
Plan Length Width mm 870 mm 620 mm Ground clearance 330

5.2 Weights:
Total 77.90 kg including batteries
Batteries 13 kg each. x 2

5.3 Motor:
Permanent magnet motor with electric 200 W - rpm from 120 to 24 V electro 2Nm 24VDC.

5.4Voltaggio and batteries:
N. 2 x 32 A 12 V sealed gel in C5 - series connection, maintenance-free.
External charger 24 V - 8 amp - Electronic microprocessor - Power supply 220 V

5.5 Brakes:
Electric brake to the engine block, insertion of a power failure.
Braking on deceleration (engine braking) enhanced in the setting of parameters
control unit.

5.6 Speed and Capacity (performance of the vehicle in perfect working flat route:
Maximum speed in 6 seconds of continuous accelerated 5 km / h + / - 10%
Max capacity 250 kg and 100kg in terms of gradient of 15%.
The maximum flow is considered with uniformly distributed load on the floor.

5.7 Tyres:
2 rubber wheels mounted on wheels with pneumatic 3.00-4 6-ply roofing.
2 wheels 200x50 core diameter polypropylene ring mounted on gray synthetic rubber supports
swivel.

5.8 Structure:
Tubular and sheet S 235 JR polyester powder coated RAL 6018 external

5.9 Spare parts and tools for maintenance and repair:
The original spare parts and tools for maintenance and repair are provided directly
Order by Biga spa Italy.

5.10 Values sound level: less than 70 dB (A)
5.11 Environmental conditions: temperature + 5 + 40 C Humidity 50%.
