Function characteristics of the automatic mesh panel welding machine : firm welded point and without welded tracks . Not only welding speed is fast but also it is easy to learn and operate . Welding transformer of the automatic mesh panel welding machine has eight shifting grades that expand welding wire diameter range . Both line wire and cross wire are fed from coil wire automatically . Use of the automatic mesh panel welding machine : welding estazolam plate mesh panel , wire mesh panel , floor warming mesh . The automatic mesh panel welding machine has 25 pieces of wire bracket , one work table , one electric clipper , one repair welding apparatus . The rated voltage and transformer condition of the automatic mesh panel welding machine : the rated voltage is 380V , 50HZ , the transformer supporting is 50 KVA (minimum) , the distance between the automatic mesh panel welding machine and the transformer supporting is 50 meters , the electric wire is 90 square millimeter ; the distance between the automatic mesh panel welding machine and the transformer supporting is 100 meters , the electric wire is 120 square millimeter ; the distance between the automatic mesh panel welding machine and the transformer supporting is 150 meters , the electric wire is 150 square millimeter . the farthest distance between the automatic mesh panel welding machine and the transformer supporting is 150 meters . Main parameter of the automatic mesh panel welding machine We supply installation and trial run for our automatic mesh panel welding machine . 1 container.
Weaving and characteristics: including galvanizing after weaving, galvanizing before weaving; have the strong characteristic of antisepsis and controdicting oxygenation. Varieties available: Galvanized ( hot-dipped and electric ) and PVC coated. Used: used wildly in industry, agriculture, building, transportation, mine field, lawn, cultivation, etc, profession guard, decorate, machine protection etc. Specification List of Welded Wire Mesh: Opening In inch In metric unit(mm) Wire Diameter 1/4" x 1/4" 6.4mm x 6.4mm 22,23,24 3/8" x 3/8" 10.6mm x 10.6mm 19,20,21,22 1/2" x 1/2" 12.7mm x 12.7mm 16,17,18,19,20,21,22,23 5/8" x 5/8" 16mm x 16mm 18,19,20,21, 3/4" x 3/4" 19.1mm x 19.1mm 16,17,18,19,20,21 1" x 1/2" 25.4mm x 12.7mm 16,17,18,19,20,21 1-1/2" x 1-1/2" 38mm x 38mm 14,15,16,17,18,19 1" x 2" 25.4mm x 50.8mm 14,15,16 2" x 2" 50.8mm x 50.8mm 12,13,14,15,16 Technical Note: 1.Standard roll length: 30m;width: 0.5m to 1.8m 2.Special sizes available at request 3.Packing: in waterproof paper in rolls. Custom packing available at request Galvanized Fencing Mesh: Opening In inch In metric unit(mm) Wire Diameter 2" x 3" 50mm x 75mm 2.0mm,2.5mm,1.65mm 3" x 3" 75mm x 756mm 2.67mm,2.41mm,2.11mm,1.83mm,1.65mm 2" x 4" 50mm x 100mm 2.11mm,2.5mm 4" x 4" 100mm x 100mm 2.0mm,2.5mm Technical Note: 1.Standard roll length: 30m;width: 0.5m to 1.8m 2.Special sizes available at request 3.Packing: in waterproof paper in rolls. Custom packing available at request.
Chang de sheng wire mesh co., ltd. Offers welded wire mesh in galvanized iron, stainless steel or pvc coated wire. Welded mesh products are made of high quality wire through automatic process and sophisticated welding technique. The finished products is level and flat with sturdy structure. Use: welded wire mesh is used in a number of industries, like construction, petroleum, chemical industry, breeding, garden fencing and foodstuff industry. Assortments available: Welded wire mesh, hot dipped galv. After welding Welded wire mesh, galv. Before welding Stainless steel welded wire mesh Pvc-coated welded wire mesh Specification of galvanized welded wire mesh Mesh 1/4"x1/4", 1/2"x1/2", 3/4"x3/4", 1"x1", 1/2"x1", 1"x2", 2"x2", 2"x3", 3"x3", 4x4", 3"x5", 4"x5" Wire diameter 2.0mm to 0.60mm Width 0.4m to 1.8m Length 15m, 20m, 25m, 30.5m, etc. Finish hot gal. Or gal.
Material: quality low carbon steel wire, stainless steel wire Weaving:galvanized after weaving, galvanized before weaving, electro galvanized, hot- dip galvanized, pvc coated, plastic-soaked, Feature: corrosion-resisting, oxidation-resisting Usage:prevention and decoration for industry, agriculture, construction, transportation Mining, , machine , sport field, lawn and breeding
Using:industry, agriculture, building, transportation, mine;field, lawn, cultivation, fence guard, decorate, machine protection and etc.
Assortments available: Welded stainless steel wire mesh panels Galvanized welded mesh panels Hot-dip zinc plating welded mesh panels
Material: black/electro gal./hot dip gal. Iron wire Features: it has fine features of neat & precise, sturdy structure, durable&rust-resistant and fine anti-corrosiveness. Applications: it's widely used in industry, agriculture, building, house fencing, machinery enclosures fence, also used in filtering liquid and gas, sieving grain. Procedures: hot dip gal. Before/after weaving, electro gal. Before/after weaving Pallet or nude pack
Welded wire mesh panel Mesh size: 12.7mm-152.4mm Wire diameter: 1.0mm-10.0mm Panel width & length: 3feet x 6feet, 4feet x 8feet , 5feet x 10feet, 1m x 2m, 1.5m x 3m, 2m x 4m Standard lot size , weight and dimensions are according to customer's request. Packing: moist-proof paper/carton/pallet
Welded wire mesh Specification 1/4" 1/2" 3/4" 1" 1"x1/2" 2"x1" 2" Wire diameter (bwg) 23 22 16 14 16 14 14 21 17 15 16 17 15 15 20 18 19 17 18 18 16 - 19 18 20 21 19 20 19 17 - Application hot dipped after welded part of them cold galv.After welded, width limit:2m Other plastic-sprayed welded wire mesh pvcwelded wire mesh and special welded wire mesh
Welded wire mesh Varieties available:electric galvanized hot-dipped pvc coated. Width:3', 4', 5', 6', 7';packing, other width, length specification can be at buyer's option.
Welded Wire Mesh Panel Surface Treatment: Galvanized and PVC coated aterial: Low-carbon steel wire,galvanized wire, stainless steel wire. Galvanized Welded Wire Mesh Panel Surface Treatment: Galvanized and PVC coated. Specification: Diameter: 0.4-3mm (Roll ) 2.0-5.5mm( panels) Mesh Hole:1/4''--2''(Roll) 2''--4''(Panels) Mesh length:15-30m/roll 2-6m/Piece Mesh Width: 0.7-1.5m (Roll)
Welded wire mesh Specification1/4"1/2"3/4"1"1"x1/2"2"x1"2" Wire diameter(bwg)23221614161414 21171516171515 20181917181816- 1918202119201917- ApplicationHot dipped after welded part of them cold galv.After welded, width limit:2m OtherPlastic-sprayed welded wire mesh pvcwelded wire mesh and special welded wire mesh
According to different material and surface treatment. There is Hot-dip Galvanized Welded Wire Mesh, electro Galvanized Welded Wire Mesh, Re-drawing Welded Wire Mesh, PVC coated Welded Wire Mesh. According to different produce process. There is Welded Wire Fence rolls, Welded Wire Mesh Panel and Welded Mesh Fence Panels. Here is details of 1'' Welded Wire Mesh: Material: Low carbon Steel Wire, Galvanized Iron Wire, re-drawing Iron Wire. Hole patterns: Square hole Mesh size: 25.4mmx25.4mm Color: Silver Width: 0.5m to 2.0m Length: 5m to 30m.
Welded wire mesh.Galvanized after welded Welded wire mesh.Galvanized before weded Stainless steel welded wire mesh Pvc-coated welded wire mesh
Galvanized welded wire mesh system made of high quality iron wire, made by precision processing technology automated machinery, flat surface, solid structure, strong integrity, Even the cut or in part under pressure is not caused by slack phenomenon occurs, welded wire mesh forming platedzinc (hot dip), good corrosion resistance, general barbed wire does not have the advantage of. Galvanized welded wire mesh can be used as a poultry cages, egg baskets, channel fences, gutters, porch fence, rodent control network, mechanical shield, animal and plant fences, gate frames, etc. It is also widely used in industry, agriculture, construction, transport, mining and other industries.
1.Material: The main materials of garden fencing framed welded wire mesh fence are low carbon steel wire, low carbon steel galvanized wire and low carbon steel PVC coated steel wire etc 2.Features: Good corrosion resistance anti-aging nice appearance easy and quick installation. 3.Processing: PVC coated/painting, Electro galvanized or hot-dip galvanized after welding of steel wire;Or Electro galvanized or hot-dip galvanized after welding of steel wire and then PVC coated.

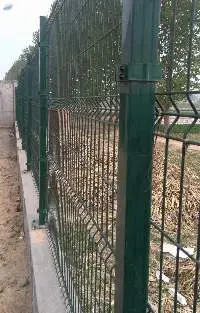

Material: Low carbon steel wire Wire: 3.0mm-6.0mm Mesh: 50*200mm,50*100mm, etc. Height: 1.2m-3m Width: 2-3m Post: 60*60mm,80*80mm,100*100mm, etc. Accessories: post caps, clips, nuts and bolts. Surface treatment: Hot dipped galvanized, PVC coated, Powder coated Packaging: Pallets Certificates: ISO9001, BV,SGS We can custom Welded Wire Mesh Fence Mesh Panel Fencing is also known as curvy welded fencing, triangle mesh fence,3D fence, etc. Welded wire mesh fence is pretty light yet durable, its composition is simply wire welded together to make a fence. The surface treatment of Welded wire mesh fence includes: hot-dipped galvanized, PVC coated, powder coated. Welded Wire Panel Fence is a type of welded wire mesh which has V-shaped strengthen bending curves. Welded Wire Panel Fence is made of high quality low carbon steel wire, galvanized wire. Then will be hot dipped galvanized,powder coated or pvc coated. Welded Wire Panel Fence looks modern and attractive. Mainly used for security protection in construction site, residential building, sports field, warehouse, highway or airport service area, railway station, etc. Welded Wire Mesh Fence Panels The welded wire mesh fence panels have a width of 2500mm and heights ranging from 600mm to 2440mm. There have vertical barbs of 30mm on one side and are reversible (barbs at top or at bottom). Mesh sizes are 200 x 50mm , and 100mm x 50mm for the beam sections. The heavy wires guarantee strength and rigidity.Different sizes can be made according to customer detailed requirements.
CELMETAL welded wire mesh can furnish a greater variety of wire sizes and spacing. It is an economical and durable option for concrete reinforcement. CELMETAL welded wire mesh is made with high quality cold drawn steel wires, which is spaced by an automatic welding machine. Materials: 1) Hot dipped galvanized after or before welding 2) Electro-galvanized after or before welding 3) Stainless steel wire 4) PVC coated wire Features: 1) Made of high quality steel wire. 2) Various configurations and sizes. 3) Used for the loose strata to avoid falling rocks. 4) Range of sizes to suit roadway width and bolting patterns. 5) Easy installation Applications: CELMETAL Welded wire mesh is used in industry and agriculture building, transportation and mining for all such purposes as poultry houses, egg baskets, runway enclosures, draining rack, fruit drying screen, fence. Welded wire mesh can be processed into wire mesh fence which can be used in Garden,yard,ground,railway,highway.
Packaging Details: plastic film ,pallet or according to customer's requirement. Delivery Detail: according to the quantity. Features: strong welded points and bright luster .The mesh doesnt come loose even if cut in parts or being. exerted force on parts .Compared with general iron wire ,the products are better in respects of anti-corrosive and anti-rust. Usage: They are widely used in industry, agriculture, construction, transport and mining .Such as machine protection cover, ranch fender, garden fence, window protection fender, passage fender, fowl cage etc. Surface treatment: hot-dipped galvanized, electro galvanized ,PVC coated, painted ,untreated. Material: low carbon steel wire Q195 or equivalent material. Application: The welded wire mesh can be used as poultry case, egg basket, passageway rail, waterspout, lobby. guardrail, rodentresistant net, mechanical shield, livestock and plants guardrail and fences, industry. agriculture, construction, transportation and mining industry, etc.
